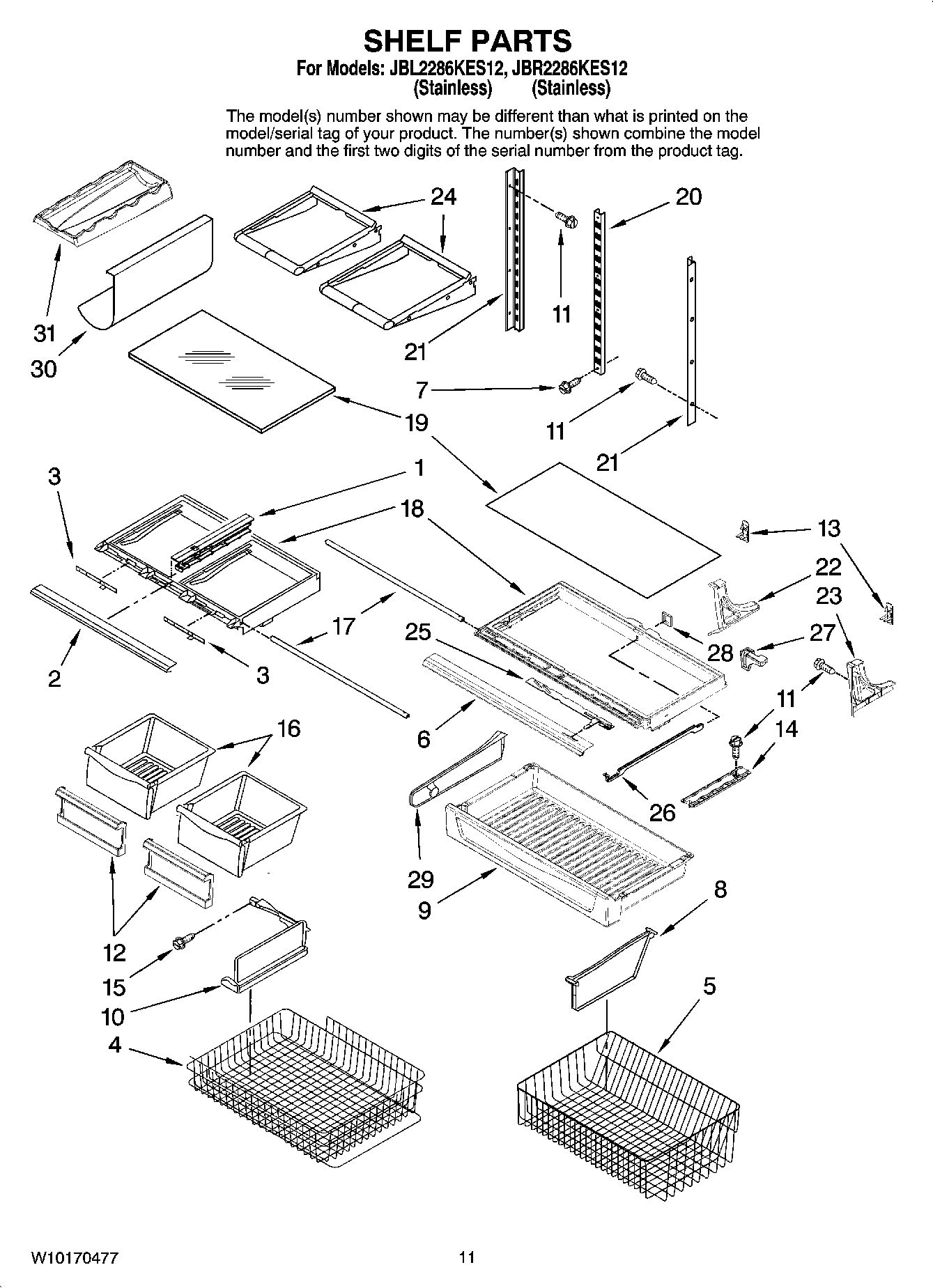

JBL2286KES12 06 – SHELF PARTS

Products

Position	Product
1	RAIL-CENTR CRISPER
2	WPW10231343 Whirlpool Shelf Trim
3	MAY 67005864
5	MAY 67006024
6	W10656985 Whirlpool Refrigerator Trim
7	W10709795 Whirlpool Refrigerator Screw
8	Divider, Lower Basket
9	MAY 67005921
10	Divider, Upper Basket
11	MAY 67006400
12	FRONT, CRISPER PAN
13	WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
14	WP67001719 Whirlpool Refrigerator Track
15	MAY 67006608
16	WP67002633 Whirlpool Crisper Pan
17	WP12227303WD Whirlpool Refrigerator Crisper Brace
18	WPW10568041 Whirlpool Refrigerator Crisper Shelf Drawer Cover
19	WP67006878 Whirlpool Refrigerator Crisper Glass
20	67001073 Whirlpool Refrigerator Center Ladder
21	LADDER, SIDES
22	WP67001721 Whirlpool Refrigerator Support
23	WP67001722 Whirlpool Refrigerator Support
24	Shelf, Glide Out (4)
25	67002002 Whirlpool Refrigerator Pantry Slide
27	WP12531601 Whirlpool Refrigerator Tunnel
28	MAY 67002005
29	MAY 67001923
30	67001656 Whirlpool Refrigerator Bottle Trivet
31	RACK, BOTTLE
