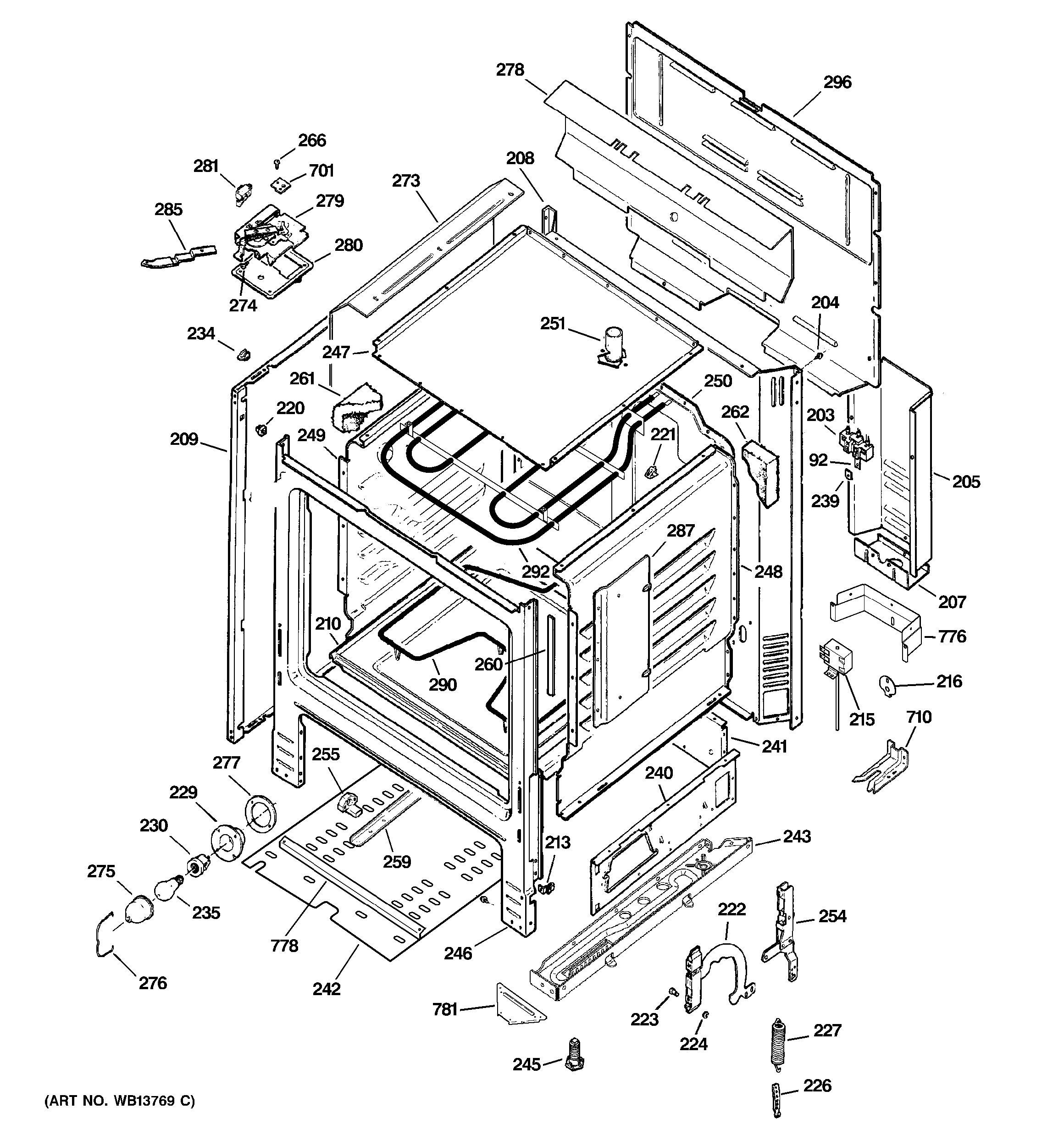

JBP15BJ2BB BODY PARTS

JBP15BJ2BB BODY PARTS

Written by

in

JBP15BJ2BB BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
203WB17T10011 GE Oven Terminal Block
204WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
205WB34K10029 GE Oven Guard Terminal
207WB02K10029 GE Oven Mounting Terminal Bracket
208GEN WB63K10053
209GEN WB63K10025
210WB63K10006 GE Oven Bottom Assembly
213WB1K3 GE Oven Speed Nut
215FIBER GLASS
216GEN WB06K10003
220GEN WB02K0008
221WB02K10073 GE Oven Clip Capillary
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
226GEN WB02K0011
227GEN WB09K0005
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
234GEN WB02K0066
235RANGE ONLY 40W 120V APPL BULB
239PLATE GROUND
240WB63K3 GE Oven Panel Side Broil
240GEN WB63K0002
241WB63K10030 GE Rear Broil Panel
242WB63K10031 GE Bottom Guard
243WB63K10232 GE Oven Support Base
243WB63K10233 GE Oven Support Base
245WB02X10521 GE Oven Leveling Leg
246GEN WB63K10051
247GEN WB63K10052
248GEN WB63K10010
249GEN WB63K10011
250GEN WB63K10064
251GEN WB38K10011
251GEN WB04K10002
254GEN WB10K0014
254GEN WB10K0013
254GEN WB01K0053
255GEN WB02K10053
259WB39K16 GE Oven Drawer Rail
260WB32K2 GE Oven Gasket Seal
261GEN WB35K10044
262GEN WB35K10046
266GEN WB01K0012
266GEN WB01K10019
273GEN WB53K0012
273GEN WB53K0011
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
278GEN WB34K10032
279WB02K10149 GE Oven Latch Assembly
280GEN WB02K0029
281GEN WB24K10032
281GEN WB24K10033
285GEN WB15K10062
287GEN WB34K0031
287WB34K30 GE Radiation Guard
290WB30X46987 GE Bake Element
292DOUBLE BROIL
296WB34K10066 GE Oven Back Cover
701SHIELD SWITCH
710WB02K10254 GE Oven Anti-Tip Bracket Assembly
776WB34K10054 GE Terminal Comp Guard
778WB34K10055 GE Bottom Guard Complete
781GEN WB02K10054
