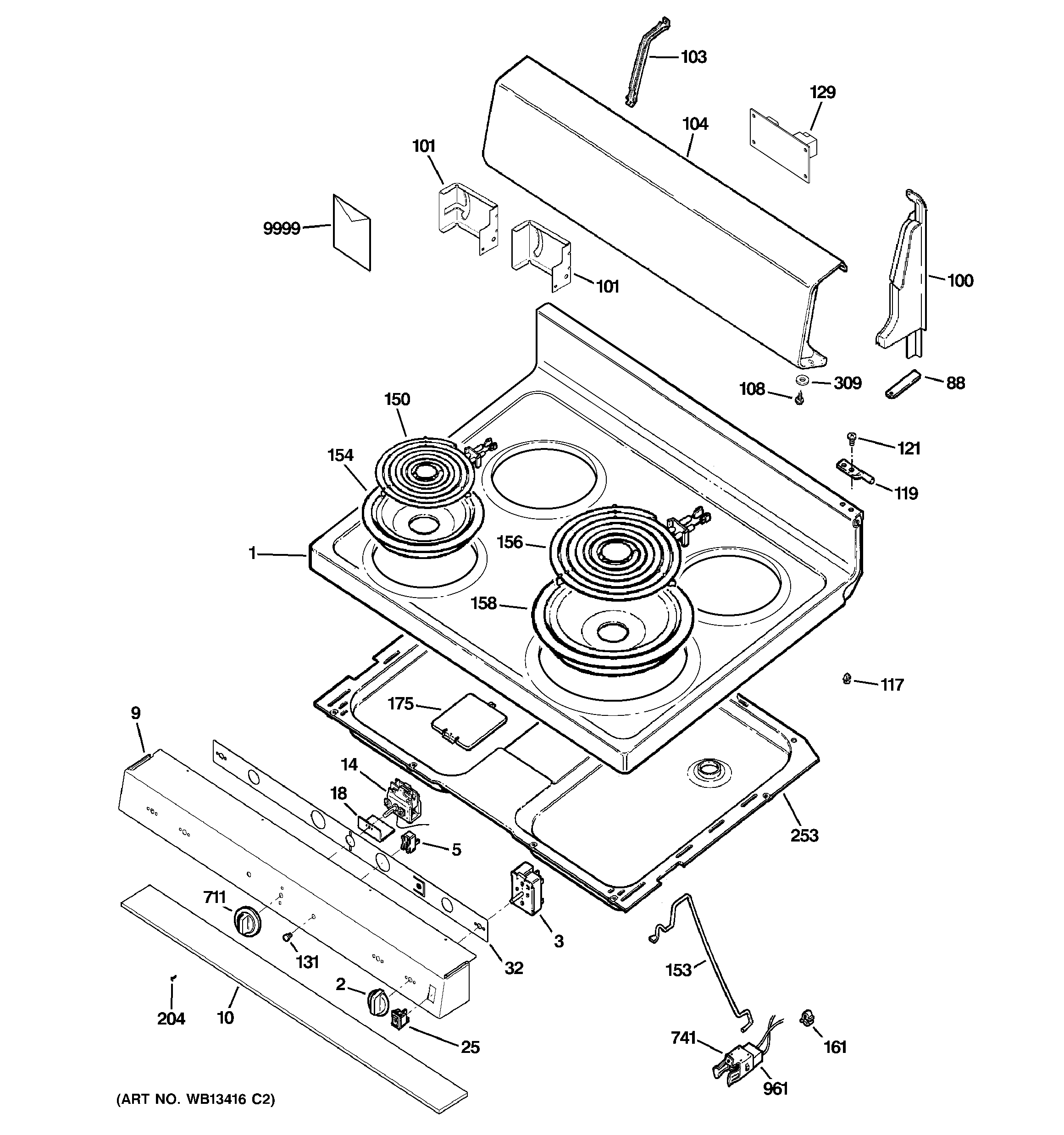

JBP15BJ2BB CONTROL PANEL & COOKTOP

JBP15BJ2BB CONTROL PANEL & COOKTOP

Written by

in

JBP15BJ2BB CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10086 GE Oven Control Thermostat
2GEN WB03T10203
3WB23K10002 GE Oven Element Switch
3WB23K10003 GE Oven Control Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
9GEN WB36K10520
10WB35K10029 GE Oven Burner Box Insulation
14WB20K10018 GE Oven Self-Clean Thermostat
18WB02K10103 GE Cover Thermostat Carton
25GEN WB24K0003
32GEN WB34K10070
88GEN WB02K0062
88GEN WB02K10098
100WB07K10194 GE Oven End Support Gloss Black
100WB07K10193 GE Oven End Support Gloss Black
101WB37K10003 GE Cooktop Right Bracket
101WB37K10004 GE Cooktop Left Bracket
103WB02K10077 GE Control Bracket
104GEN WB36K10434
108WB01T10016 GE Oven Screw 8-18 AB Hex
108GEN WB01X5716
117GEN WB02K0017
117WB02K10075 GE Oven Plastic Nail
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
129WB11K10039 GE Oven Self Clean Timer
131WB25T10041 GE Oven Lens
150WB30T10076 GE Range Stove Cooktop 6" SURFACE ELEMENT
153WB02K10026 GE Oven Rod Support
154WB31T10014 GE Oven 6-Inch Black Drip Bowl
156WB03T10167 GE Range Stove Cooktop 8" Surface Burner Element 5 Turn
158WB31T10015 8" BOWL BLACK REAR BUBBLE
161CLIP WIRE
175LATCH COVER
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
204WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
253WB64K10011 GE Oven Cooktop Box
309WASHER
711GEN WB03K10191
741RECEPTACLE W/CLIP
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 49-88022
9999GEN 31-21181
