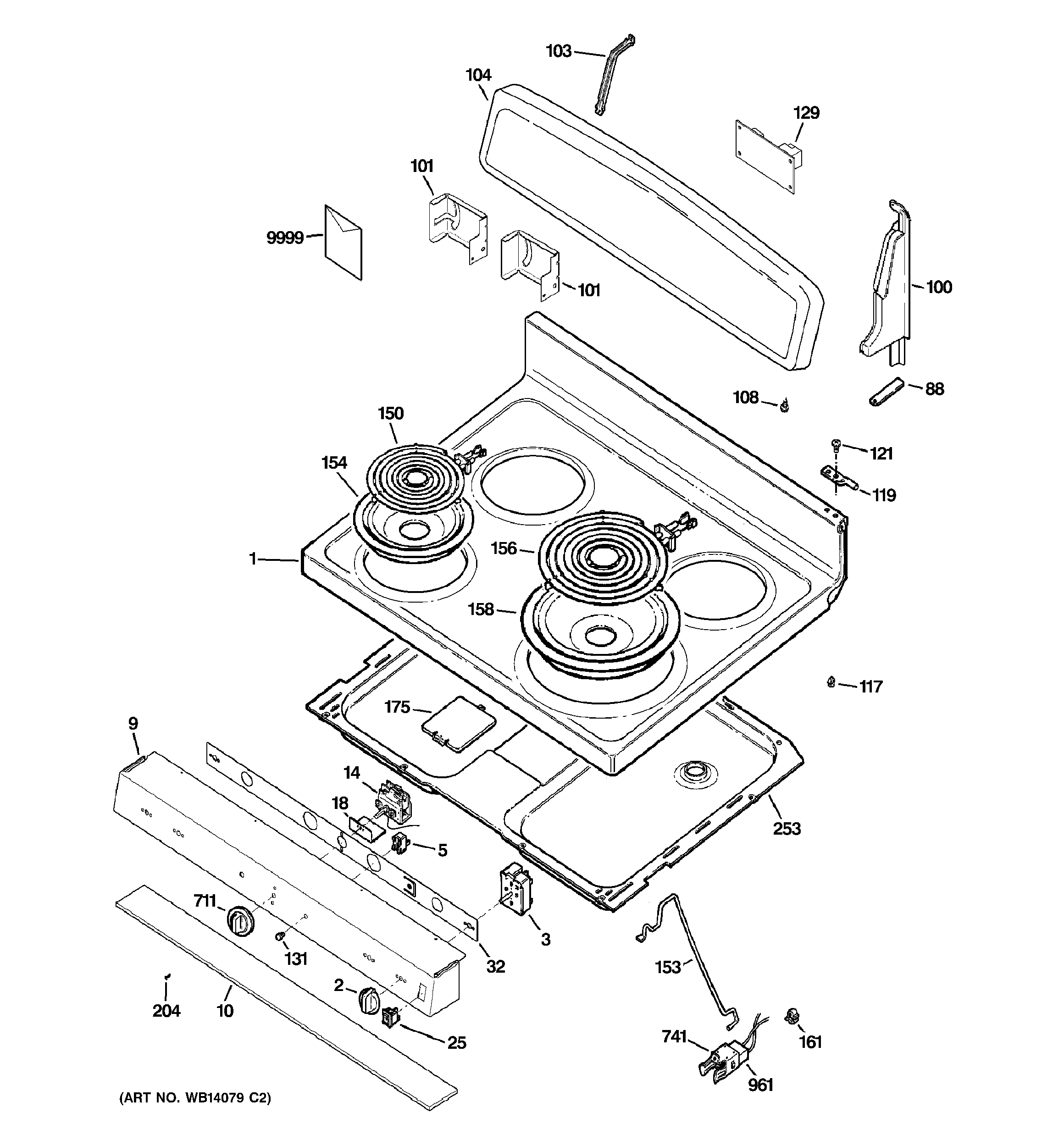

JBP15DM1BB CONTROL PANEL & COOKTOP

JBP15DM1BB CONTROL PANEL & COOKTOP

Written by

in

JBP15DM1BB CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB34K10029 GE Oven Guard Terminal
1WB62K10086 GE Oven Control Thermostat
1WB62K10081 GE Oven Cooktop Assembly Bisque
1WB62K10083 GE Oven White Cooktop O/S1
2KNOB INFINITE (BK)
2WB03T10282 GE Oven Infinite Knob (White)
2WB03T10285 GE Oven Infinite Control Knob
3WB23K10003 GE Oven Control Switch
3WB23K10002 GE Oven Element Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
9GEN WB36K10693
9GEN WB36K10769
9GEN WB36K10779
10WB35K10029 GE Oven Burner Box Insulation
14WB20K10018 GE Oven Self-Clean Thermostat
18WB02K10103 GE Cover Thermostat Carton
25WB24K5022 GE Oven Rocker Switch
25WB24K10005 GE Oven Switch Rocker
25GEN WB24K0003
32GEN WB34K10070
88GEN WB02K0062
88GEN WB02K10099
88GEN WB02K10098
100GEN WB07K10260
100GEN WB07K10261
100GEN WB07K10271
100GEN WB07K10266
100GEN WB07K10265
100GEN WB07K10270
101WB37K10015 GE Right Cooktop Bracket
101WB37K10016 GE Cooktop Left Bracket
103GEN WB02K10181
104GEN WB36K10689
104GEN WB36K10746
104GEN WB36K10748
108GEN WB01X5874
108WB1X5364 GE Oven Mounting Screw
108GEN WB01X5716
117GEN WB02K0017
117WB02K10075 GE Oven Plastic Nail
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
129WB11K10039 GE Oven Self Clean Timer
131WB25T10041 GE Oven Lens
150WB30X24401 GE Oven Surface Element Coil
153WB02K10026 GE Oven Rod Support
154WB31T10014 GE Oven 6-Inch Black Drip Bowl
154WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
156WB30T10074 GE Oven 8" Burner Unit 2600W
158WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
158WB31T10015 8" BOWL BLACK REAR BUBBLE
161CLIP WIRE
175LATCH COVER
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
253WB64K10011 GE Oven Cooktop Box
711GEN WB03K10246
711GEN WB03K10245
711GEN WB03K10232
741WB02K10133 GE Oven Receptacle Clip
961WB17T10006 GE Oven Burner Receptacle Block
9999WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
9999GEN 31-10831
9999GEN 31-21359
9999GEN 31-10781
9999GEN 49-88037
9999GEN 49-88045-2
