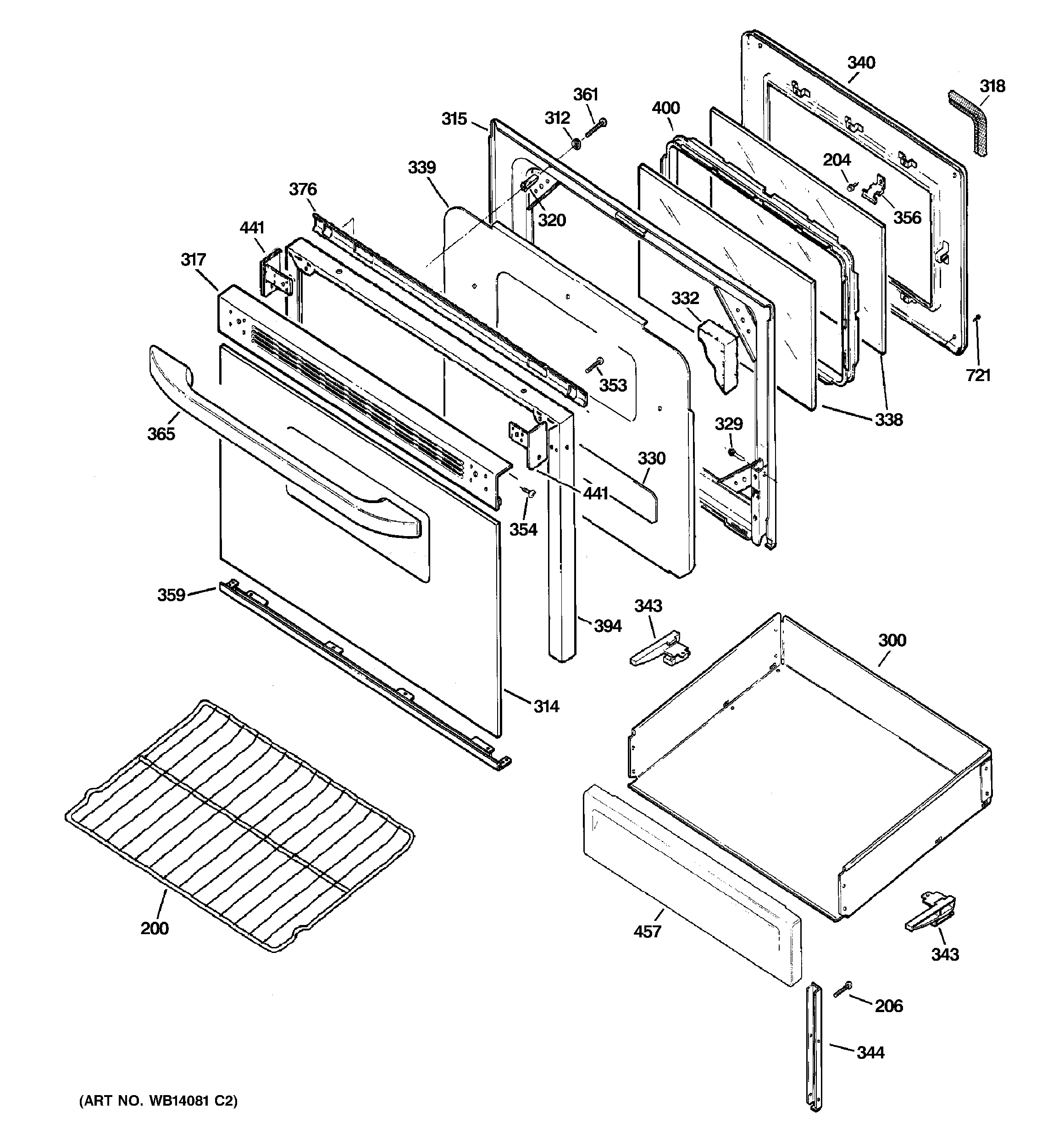

JBP15DM1WW DOOR & DRAWER PARTS

JBP15DM1WW DOOR & DRAWER PARTS

Written by

in

JBP15DM1WW DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
206WR01X10065 GE Screw
300GEN WB58K10004
312WB1X119D GE Oven Range Washer
314WB57K10110 GE Oven Glass Door
314WB57K10109 GE Oven Glass Door
314GEN WB57K10112
315GEN WB55K10042
317GEN WB07K0400
317WB7K403 GE Oven Top Door Trim
317WB35K10041 GE Oven Reflector
317WB36K10212 GE Top Door Trim (Bisque)
318WB35X29722 GE Oven Door Gasket Assembly
320WB02K10161 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330WB35K10084 GE Door Insulation
330GEN WB35K0022
332GEN WB35K10102
332GEN WB35K10101
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K62 GE Oven Door Assembly
354WB01K10024 GE Oven Screw Mounting Endcap (Bisque)
354WB1K66 GE Screw
356GEN WB02K0056
359TRIM BOTTOM ASM
359WB07K10269 GE Oven Bottom Trim Assembly
359WB07K10232 GE Oven Bottom Trim Assembly
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
365WB15K10101 GE Oven Handle
365WB15K10100 GE Oven Handle
365WB15K10099 GE Oven Handle
376WB35K23 GE Heater Deflector
394GEN WB07K0268
394GEN WB07K10165
394GEN WB07K0265
400WB34K10087 GE Oven Window Spacer Assembly
441GEN WB07K10129
441GEN WB07X7181
441WB7X7188 GE Oven Left Endcap
441GEN WB07X7187
441GEN WB07X7182
441GEN WB07K10128
457WB55K10001 GE Oven Drawer Panel (Black)
457GEN WB36K10164
457WB36K10033 GE Oven Drawer Panel (White)
721WB1X536 GE Oven Screw
