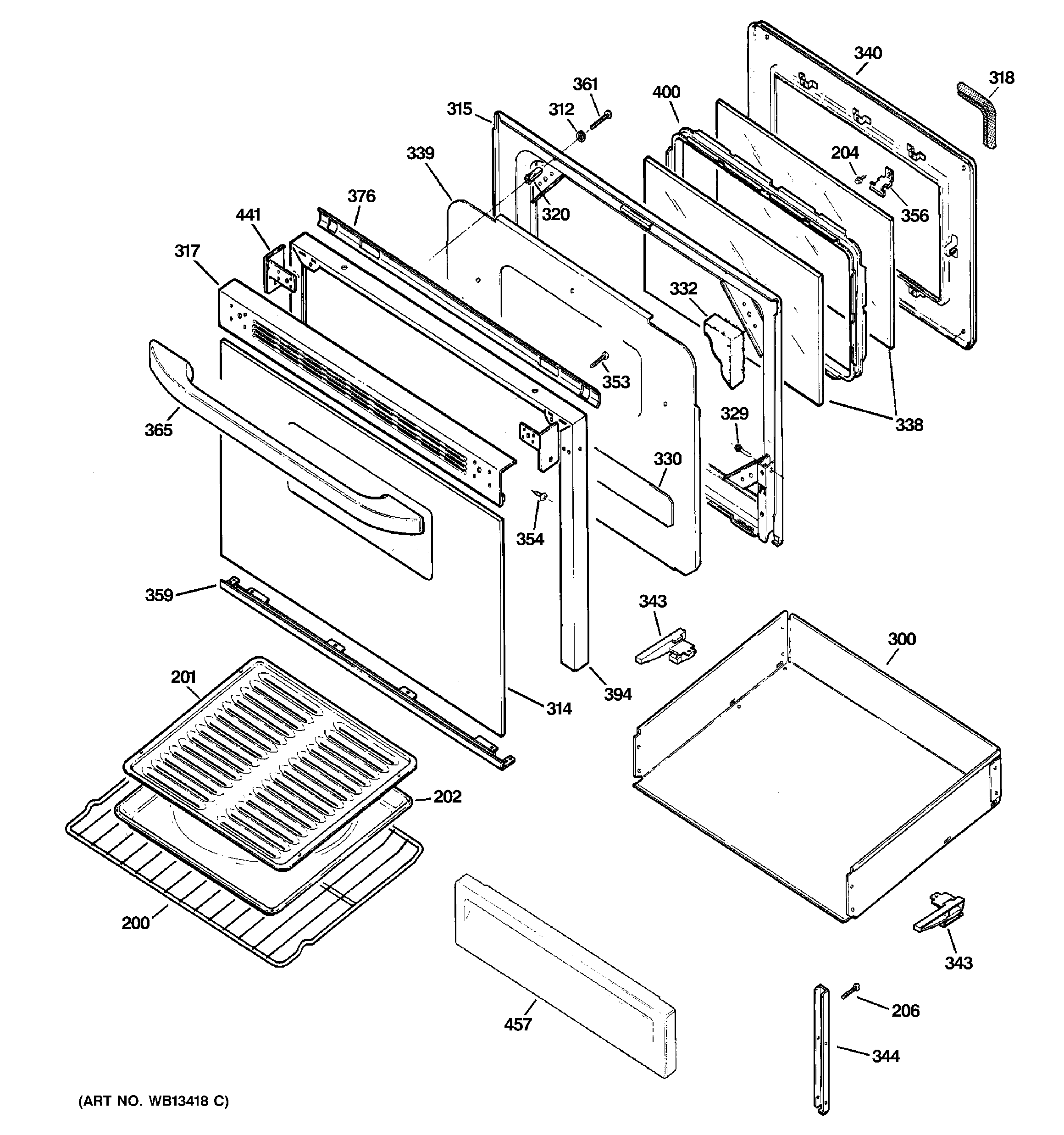

JBP15WJ1WW DOOR & DRAWER PARTS

JBP15WJ1WW DOOR & DRAWER PARTS

Written by

in

JBP15WJ1WW DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
202WB48X10056 GE Broil Pan Set, Large Porcelain
204WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
206WR01X10065 GE Screw
300GEN WB58K10004
312WB1X119D GE Oven Range Washer
314WB57K5 GE Oven White Glass Door
315GEN WB55K0025
317GEN WB35K0033
317GEN WB07K0400
318WB4K1 GE Oven Gasket Door
320WB1K10 GE Oven Grommet Handle
320GEN WB02K0084
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K0025
332GEN WB35K0024
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
353WB1K67 GE Oven Screw 8-22
354WB1K66 GE Screw
356GEN WB02K0056
359TRIM BOTTOM ASM
361GEN WB01K0069
365GEN WB15K10048
376WB35K23 GE Heater Deflector
394GEN WB07K10103
400WB34K10087 GE Oven Window Spacer Assembly
441GEN WB07X7187
441WB7X7188 GE Oven Left Endcap
457WB36K10033 GE Oven Drawer Panel (White)
