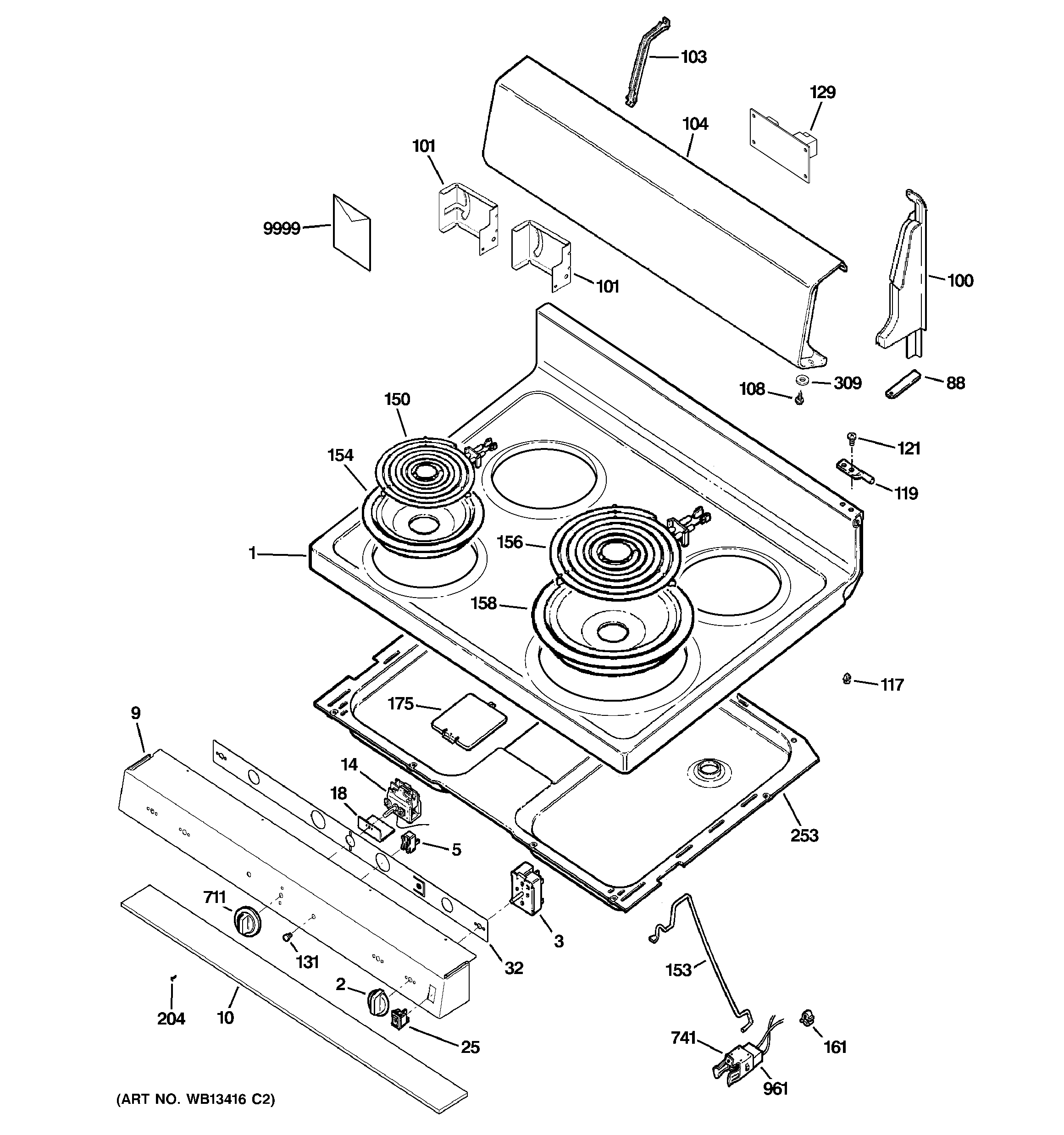

JBP15WJ2WW CONTROL PANEL & COOKTOP

Products

Position	Product
1	WB62K10083 GE Oven White Cooktop O/S1
2	WB03T10207 GE Surface Unit Knob
3	WB23K10002 GE Oven Element Switch
3	WB23K10003 GE Oven Control Switch
5	WB25K10002 GE Stove Oven Cooktop Pilot Lamp
9	GEN WB36K10522
10	WB35K10029 GE Oven Burner Box Insulation
14	WB20K10018 GE Oven Self-Clean Thermostat
18	WB02K10103 GE Cover Thermostat Carton
25	WB24K5022 GE Oven Rocker Switch
32	GEN WB34K10070
88	GEN WB02K0062
88	GEN WB02K10098
100	WB07K10195 GE Oven Right White End Support
100	WB07K10196 GE Oven Left End Support (White)
101	WB37K10003 GE Cooktop Right Bracket
101	WB37K10004 GE Cooktop Left Bracket
103	WB02K10077 GE Control Bracket
104	GEN WB36K10369
108	WB01T10016 GE Oven Screw 8-18 AB Hex
108	GEN WB01X5874
117	GEN WB02K0017
117	WB02K10075 GE Oven Plastic Nail
119	WB14K5 GE Oven Hinge Pin
121	WB1K5119 GE Oven Screw
129	WB11K10039 GE Oven Self Clean Timer
131	WB25T10041 GE Oven Lens
150	WB30X24401 GE Oven Surface Element Coil
153	WB02K10026 GE Oven Rod Support
154	WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
156	WB30T10074 GE Oven 8" Burner Unit 2600W
158	WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
161	CLIP WIRE
175	LATCH COVER
204	WZ4X345D GE Screw Package 12 C92
204	WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
204	WB1K5062 GE Oven Screw
253	WB64K10011 GE Oven Cooktop Box
309	WASHER
711	GEN WB03K10192
741	RECEPTACLE W/CLIP
961	WB17T10006 GE Oven Burner Receptacle Block
9999	GEN 31-21181
9999	GEN 49-88022
