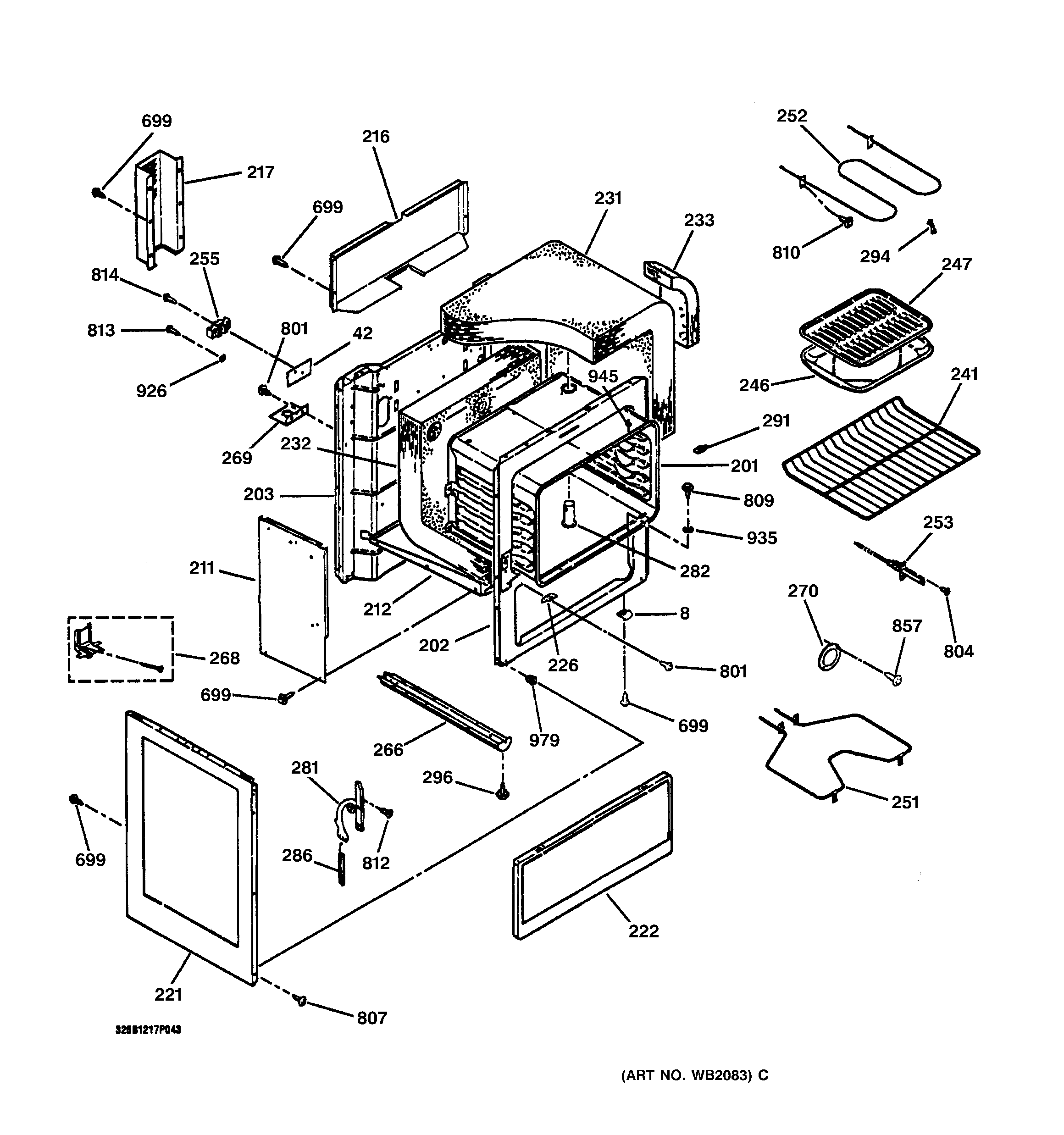

JBP18LY1WH BODY PARTS

JBP18LY1WH BODY PARTS

Written by

in

JBP18LY1WH BODY PARTS

Products

PositionProduct
8GEN WB02X5199
42GEN WB34K5092
201GEN WB63T10002
202GEN WB63T10003
203GEN WB63K5187
211GEN WB02M0038
212GEN WB02K5093
216WIRE COVER-REAR-UPP
217UPPER WIRE COVER
221GEN WB63K5188
222GEN WB63K5138
226GEN WB02K5231
226GEN WB02K5230
231GEN WB35M0022
232GEN WB35T10003
233INSULATION TOP & SIDES
241GEN WB48X0208
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5012 GE Oven Bake Element
252WB44X232 GE Oven Broil Element
253GEN WB21X5310
255WB17X5095 GE Black Oven Terminal
266GEN WB02K5274
268WB2X7909 GE Oven Anti-Tip Kit
269SERVICE RANGE MTG PLATE
270GEN WB34K5048
281WB14X103 GE Range Oven Left Door Hinge
281WB14X104 GE Stove Range Oven Right Hand Door Hinge
282GEN WB38K5018
286GEN WB09K5020
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
296GEN WB02X9188
699WB1M1 GE Oven Screw
804WB1X681 GE Oven Screw
807WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
812SCREW-BLACK
812WB1K5191 GE Oven Zinc FL Screw
813WB1X1261 GE Oven Screw
814WB1X1258 GE Oven Screw
926GROUND WASHER
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
979SPACER
