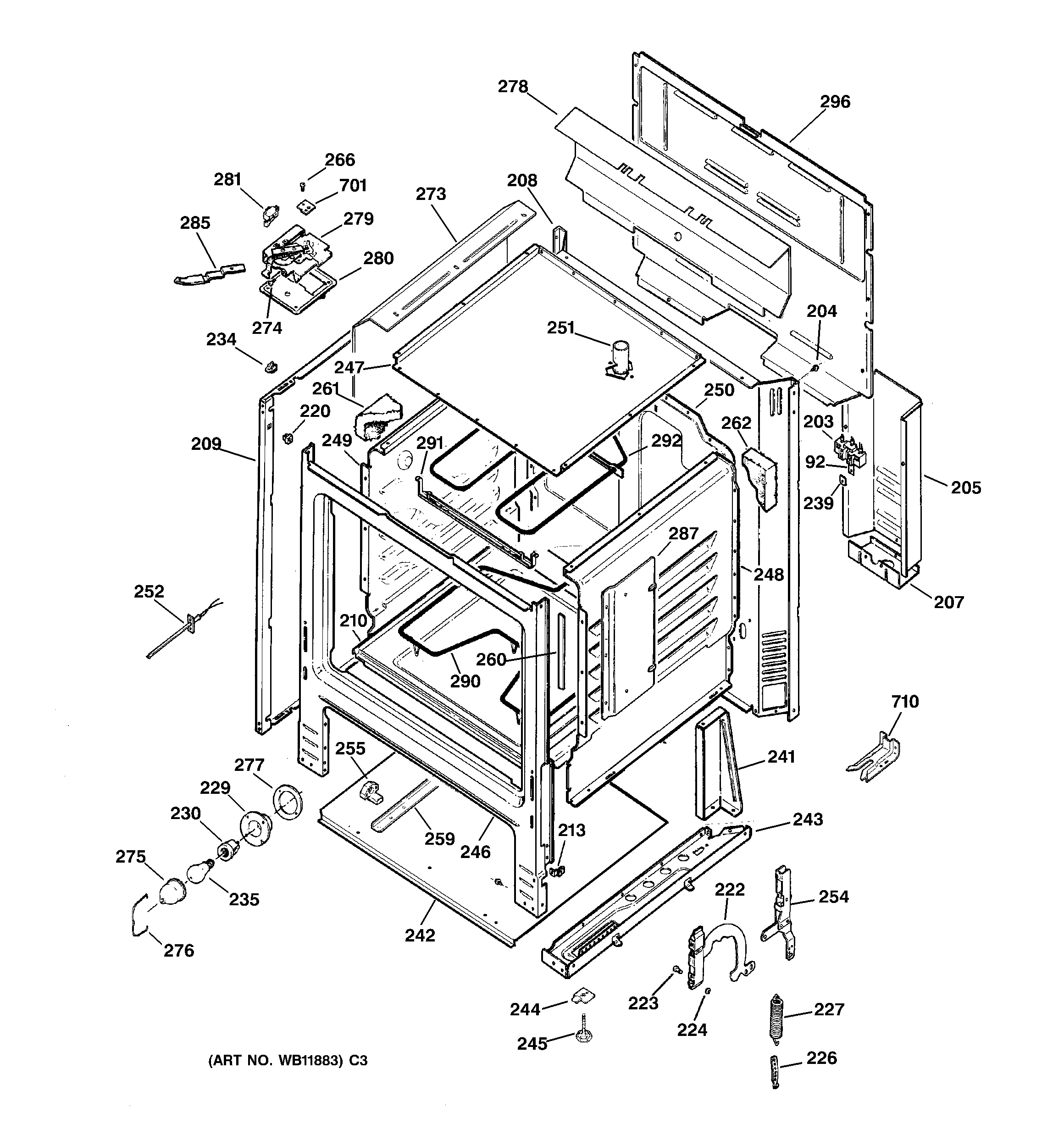

JBP21BC1AD BODY PARTS

JBP21BC1AD BODY PARTS

Written by

in

JBP21BC1AD BODY PARTS

Products

PositionProduct
92GEN WB02T10030
203WB17X5095 GE Black Oven Terminal
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
205WB34K10029 GE Oven Guard Terminal
207WB02K10029 GE Oven Mounting Terminal Bracket
208GEN WB63K10005
209GEN WB63K10014
210WB63K10006 GE Oven Bottom Assembly
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
226GEN WB09K10001
227GEN WB09K0004
229GEN WB08K0001
230GEN WB08K0002
234GEN WB02K0066
235RANGE ONLY 40W 120V APPL BULB
239GEN WB01X5968
239PLATE GROUND
241CLIP WINDOW
242GEN WB63K10009
243GEN WB63K0006
243GEN WB63K0007
244GEN WB02K0001
245GEN WB02X7701
246GEN WB63K10019
247WB63K10021 GE Oven Top
248GEN WB63K10010
249GEN WB63K10011
250WB53K10007 GE Oven Back
251WB38K10002 GE Oven Vent Tube
252SENSOR ASM
254GEN WB01K0053
254GEN WB10K0014
254GEN WB10K0013
255WB02K10158 GE Oven Drawer Support
259WB39K16 GE Oven Drawer Rail
260WB32K2 GE Oven Gasket Seal
261GEN WB35K10011
262GEN WB35K10022
266GEN WZ05X0124
266GEN WB01K0012
273GEN WB53K0012
273GEN WB53K0011
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
279WB02K10144 GE Oven Door Latch Assembly
280GEN WB02K0029
281GEN WB24K10013
285GEN WB15K10020
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
296GEN WB34K10031
701SHIELD SWITCH
710WB02K10254 GE Oven Anti-Tip Bracket Assembly
