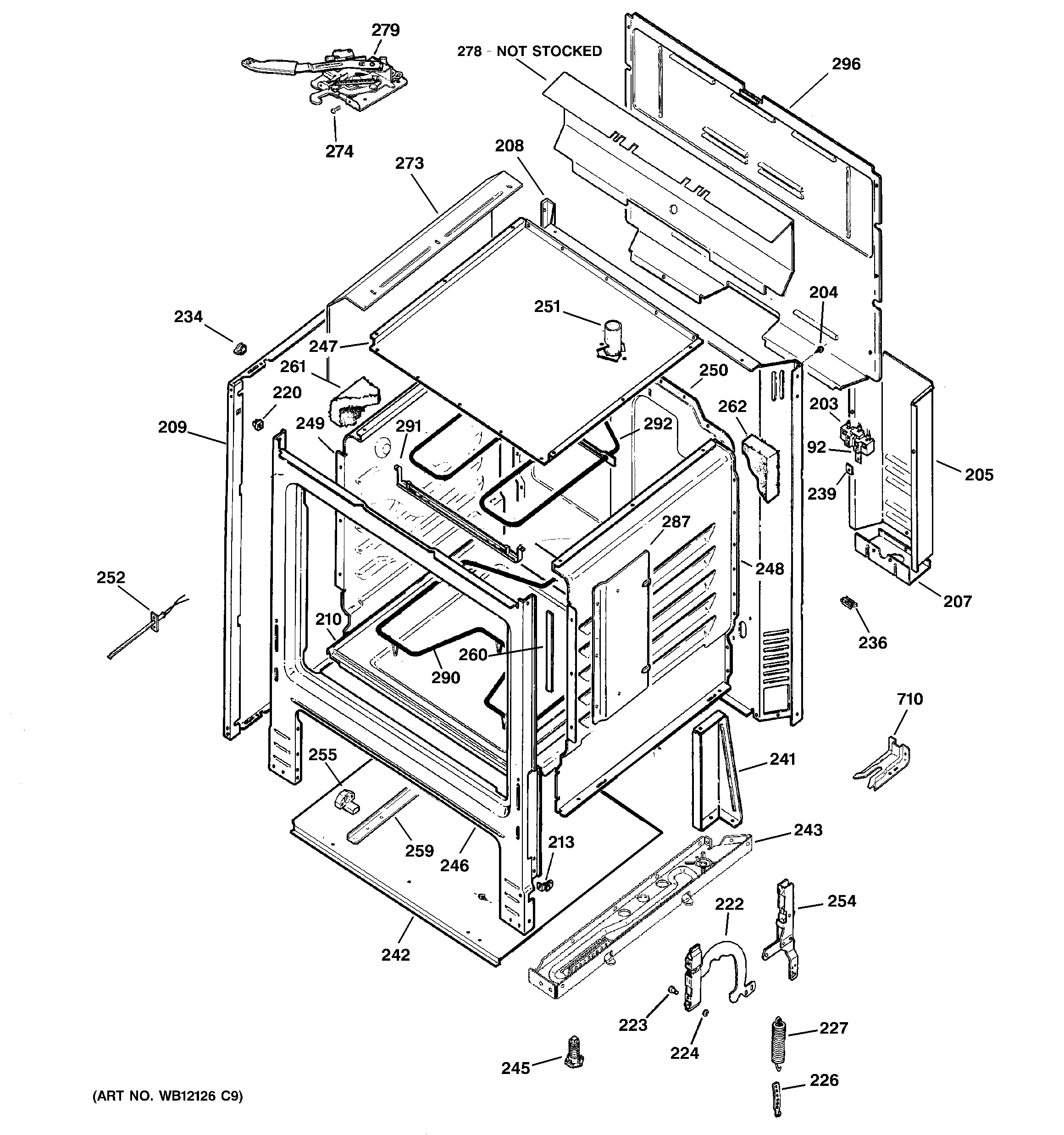

JBP21BH4CT BODY PARTS

JBP21BH4CT BODY PARTS

Written by

in

JBP21BH4CT BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
203WB17T10011 GE Oven Terminal Block
204WB1K5062 GE Oven Screw
204WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
204WZ4X345D GE Screw Package 12 C92
205WB34K10029 GE Oven Guard Terminal
207WB02K10029 GE Oven Mounting Terminal Bracket
208GEN WB63K10005
209GEN WB63K10026
210WB63K10006 GE Oven Bottom Assembly
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
226GEN WB09K10001
227GEN WB09K0005
234GEN WB02K0066
236GEN WB02K0022
239PLATE GROUND
241SUPPORT CONTROL
242GEN WB63K10009
243WB63K10233 GE Oven Support Base
243WB63K10232 GE Oven Support Base
245WB02X10521 GE Oven Leveling Leg
246GEN WB63K10047
247WB63K10021 GE Oven Top
248GEN WB63K10010
249GEN WB63K10011
250GEN WB53K10011
251WB38K10016 GE Oven Vent Tube Assembly
251WB35X29722 GE Oven Door Gasket Assembly
251WB38K10002 GE Oven Vent Tube
252SENSOR ASM
254GEN WB10K0013
254GEN WB10K0014
254GEN WB01K0053
255WB02K10158 GE Oven Drawer Support
259WB39K16 GE Oven Drawer Rail
260WB32K2 GE Oven Gasket Seal
261GEN WB35K10092
262GEN WB35K10022
273GEN WB53K0011
273GEN WB53K0012
274GEN WB01K0044
279WB02K10144 GE Oven Door Latch Assembly
287CLIP WINDOW
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
296WB34K10066 GE Oven Back Cover
710WB02K10254 GE Oven Anti-Tip Bracket Assembly
