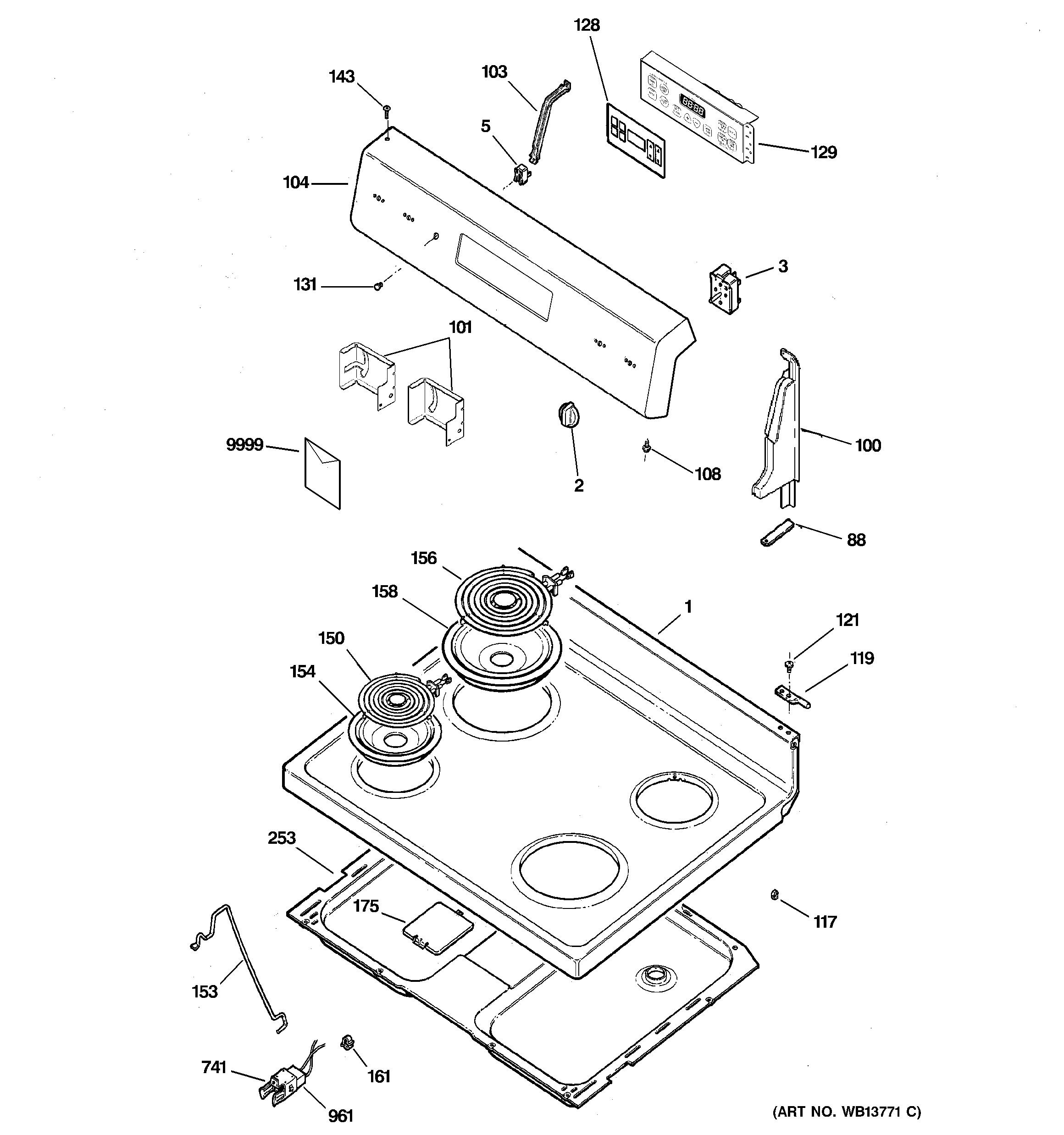

JBP22BK3WH CONTROL PANEL & COOKTOPadmin2025-04-26T09:53:12+00:00JBP22BK3WH CONTROL PANEL & COOKTOP ProductsPositionProduct1WB62K10080 GE Range White Top2GEN WB03T102033WB24T10025 SWITCH INFIN(2500W)3WB24T10029 GE Oven Infinite Burner Switch5WB25K10002 GE Stove Oven Cooktop Pilot Lamp88GEN WB02K006288GEN WB02K10098100WB07K10194 GE Oven End Support Gloss Black100WB07K10193 GE Oven End Support Gloss Black101WB37K10003 GE Cooktop Right Bracket101WB37K10004 GE Cooktop Left Bracket103WB02K10077 GE Control Bracket104GEN WB36K10384108WB1X5364 GE Oven Mounting Screw108WB01T10016 GE Oven Screw 8-18 AB Hex117WB02K10075 GE Oven Plastic Nail117GEN WB02K0017119WB14K5 GE Oven Hinge Pin121WB1K5119 GE Oven Screw128GEN WB27K10188129WB27K10357 GE Oven Gas Control TO9131WB25T10041 GE Oven Lens143GEN WB01X5716150WB30X24401 GE Oven Surface Element Coil153WB02K10026 GE Oven Rod Support154WB31T10010 GE Oven 6" Chrome Burner Drip Bowl156WB30T10074 GE Oven 8" Burner Unit 2600W158WB31T10011 GE Oven 8" Chrome Drip Bowl Burner161CLIP WIRE175LATCH COVER253WB64K10011 GE Oven Cooktop Box741WB02K10133 GE Oven Receptacle Clip961WB17T10006 GE Oven Burner Receptacle Block9999PM MINI-MANUALS9999GEN 49-88024
