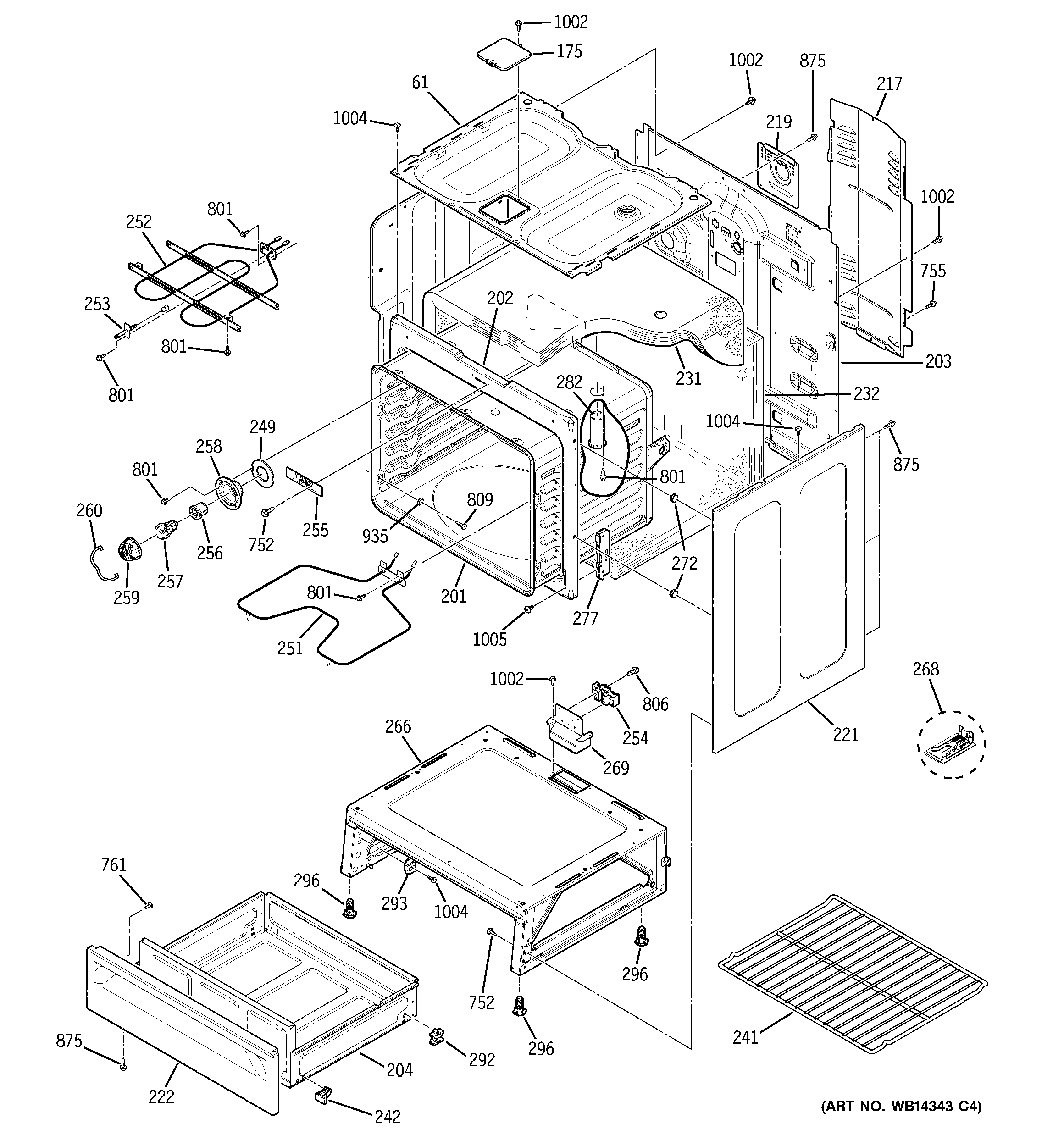

JBP23DIR1WW BODY PARTS

JBP23DIR1WW BODY PARTS

Written by

in

JBP23DIR1WW BODY PARTS

Products

PositionProduct
61WB64T10073 GE Oven Burner Box
175LATCH COVER
201WB63X20942 GE Oven Body Weld Assembly
202FRAME FRONT
203GEN WB63T10147
204WB55T10178 GE Oven Mechanical Drawer Body Assembly
217WB34T10128 GE Oven Back Cover
219COVER RECEPTACLE
221WB56X28884 GE Oven White Side Panel
222GEN WB56T10268
231WB35T10209 GE Oven Insulation
232WB35T10113 GE Oven Insulation Assembly
241WB48T10063 GE Oven Rack
242WB48T10068 GE Oven Wedge Drawer
249WB02T10027 GE Oven Gasket
251BAKE ELEMENT
252WB44T10009 GE Oven Broil Element
253WB21X22134 GE Oven Sensor Assembly
254WB17T10011 GE Oven Terminal Block
256WB08T10026 GE Range Push-In Receptacle
257RANGE ONLY 40W 120V APPL BULB
258WB02T10037 GE Oven Light Cup
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
266WB63X28540 GE Base Assembly Rivet
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
269WB17T10021 GE Oven Mount Terminal Block
272WB02T10034 GE Oven Body Side Support
277WB10T10068 GE Oven Hinge Receiver
282WB38X33649 GE Vent Tube
292WB02X33180 GE Oven Drawer Glide
293WB48T10013 GE Oven Drawer Support
752WB1K5200 GE Oven Screw 340531
755WB1X1261 GE Oven Screw
761WB1K5156 GE Oven Screw
801WB1M1 GE Oven Screw
806WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
809WB1X1137 GE Oven Screw
875WH2X930 GE Screw
935WB01T10112 GE Washer Aluminum
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004WB01T10037 GE Screw 8-18 7/16"
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
