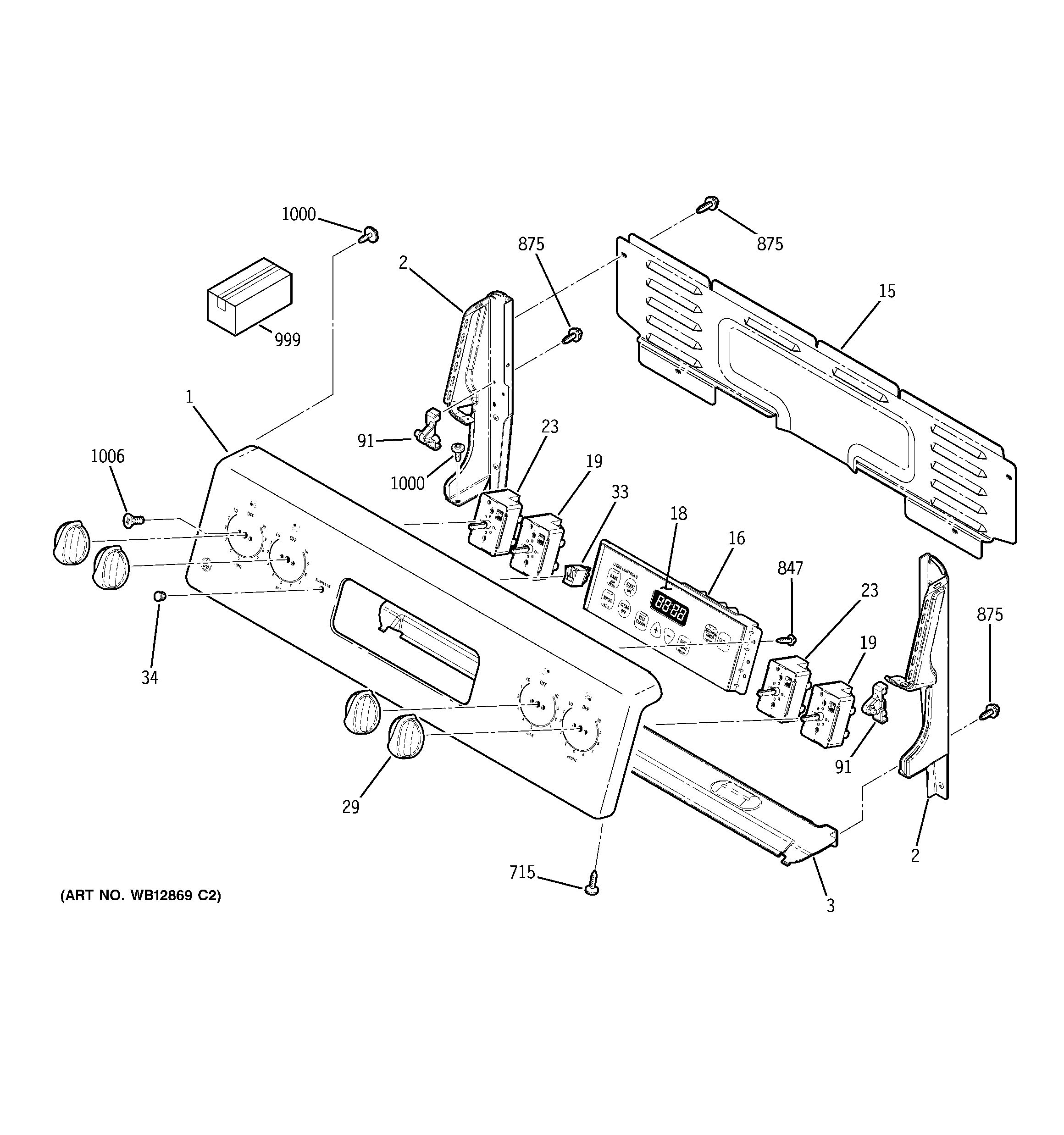

JBP23DR1CC CONTROL PANEL

Products

Position	Product
1	TRIM & BRACKET ASM
1	GEN WB36T11164
1	GEN WB36T11055
2	GEN WB36T11040
2	GEN WB36T11043
2	WB36T11039 GE Oven End Plate Right (Black)
2	GEN WB36T11050
2	GEN WB36T11051
2	GEN WB36T11042
3	SHIELD HEAT BKGD
15	GEN WB02T10499
16	CONTROL OVEN TO9 (ELEC)
18	WB27T11013 GE Oven Graphic Faceplate
18	GEN WB27T11015
18	FACEPLATE GRAPHICS (WH)
19	WB24T10025 SWITCH INFIN(2500W)
23	WB24T10029 GE Oven Infinite Burner Switch
29	KNOB INFINITE (BK)
29	WB03T10282 GE Oven Infinite Knob (White)
29	WB03T10285 GE Oven Infinite Control Knob
33	WB27T10626 GE Oven Indicator Light Pilot
34	WB25T10041 GE Oven Lens
91	GEN WB10T10125
715	WD2X432 GE Dishwasher Screw
715	WD2X433 GE Dishwasher Trim Screw
715	WD2X434 GE Dishwasher Trim Screw
847	WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875	WH2X930 GE Screw
999	INSTR INSTALL OVN DOOR
999	GEN 31-14544
999	GEN 49-80591
999	GEN 31-10677
1000	WB01T10016 GE Oven Screw 8-18 AB Hex
1006	WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
