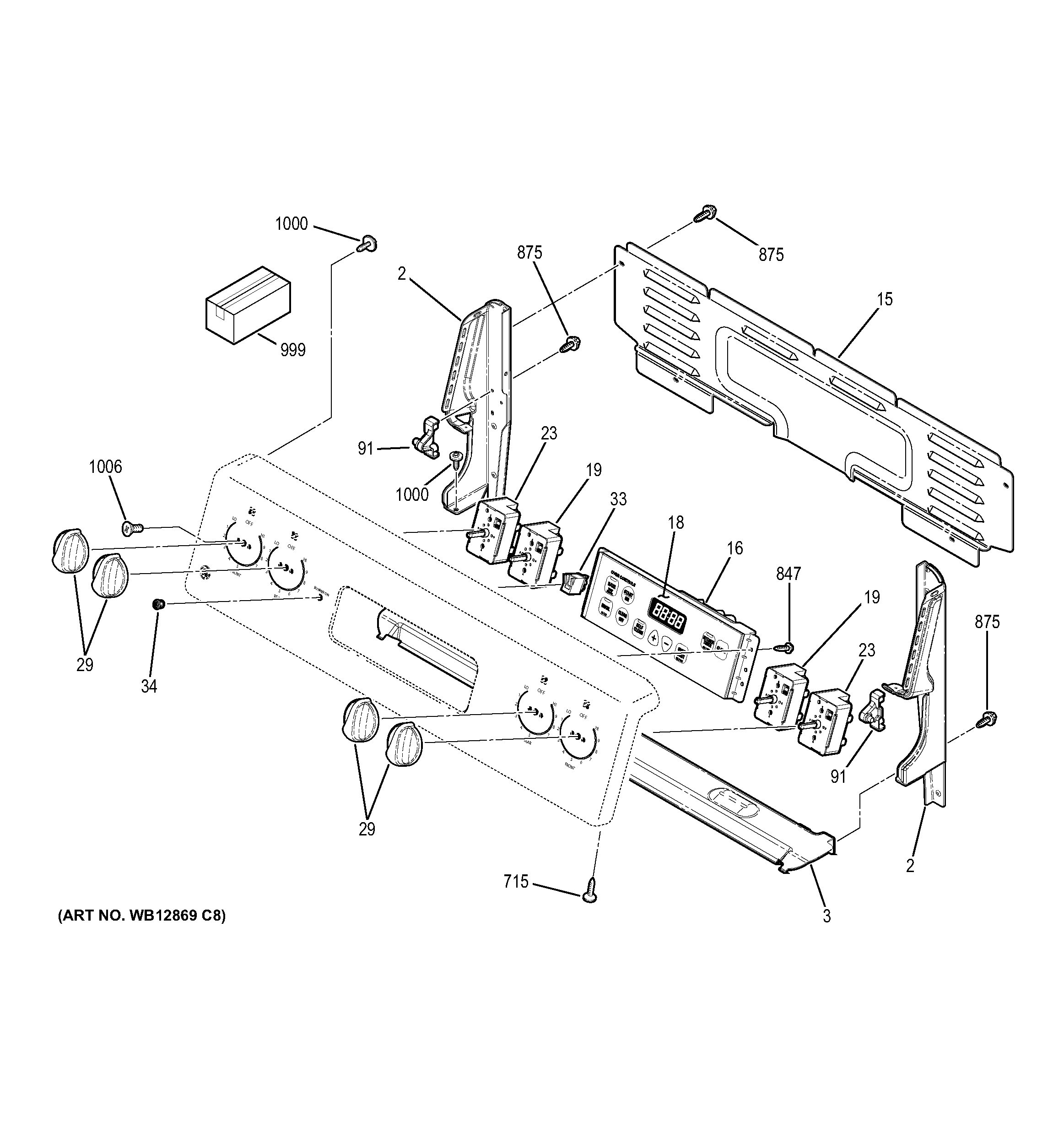

JBP23DR4CC CONTROL PANEL

Products

Position	Product
1	LABEL WIRE DIAGRAM
2	GEN WB36T11051
2	GEN WB36T11050
3	GEN WB02T10525
15	COVER CONTROL
16	CONTROL OVEN TO9 (ELEC)
18	GEN WB27T11427
19	WB24T10025 SWITCH INFIN(2500W)
23	WB24T10029 GE Oven Infinite Burner Switch
29	WB03T10285 GE Oven Infinite Control Knob
33	WB27T10626 GE Oven Indicator Light Pilot
34	WB25T10041 GE Oven Lens
91	GEN WB10T10125
715	WD2X434 GE Dishwasher Trim Screw
847	WS02X10087 GE Screws 10-32 GX HXW 7/16 S
875	WZ4X245D GE Screw Package
875	WH2X930 GE Screw
999	GEN 49-80632
999	INSTR INSTALL OVN DOOR
999	GEN 31-10781
999	GEN 31-15033
999	GEN 31-10816
1000	GEN WB01M0013
1006	WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
