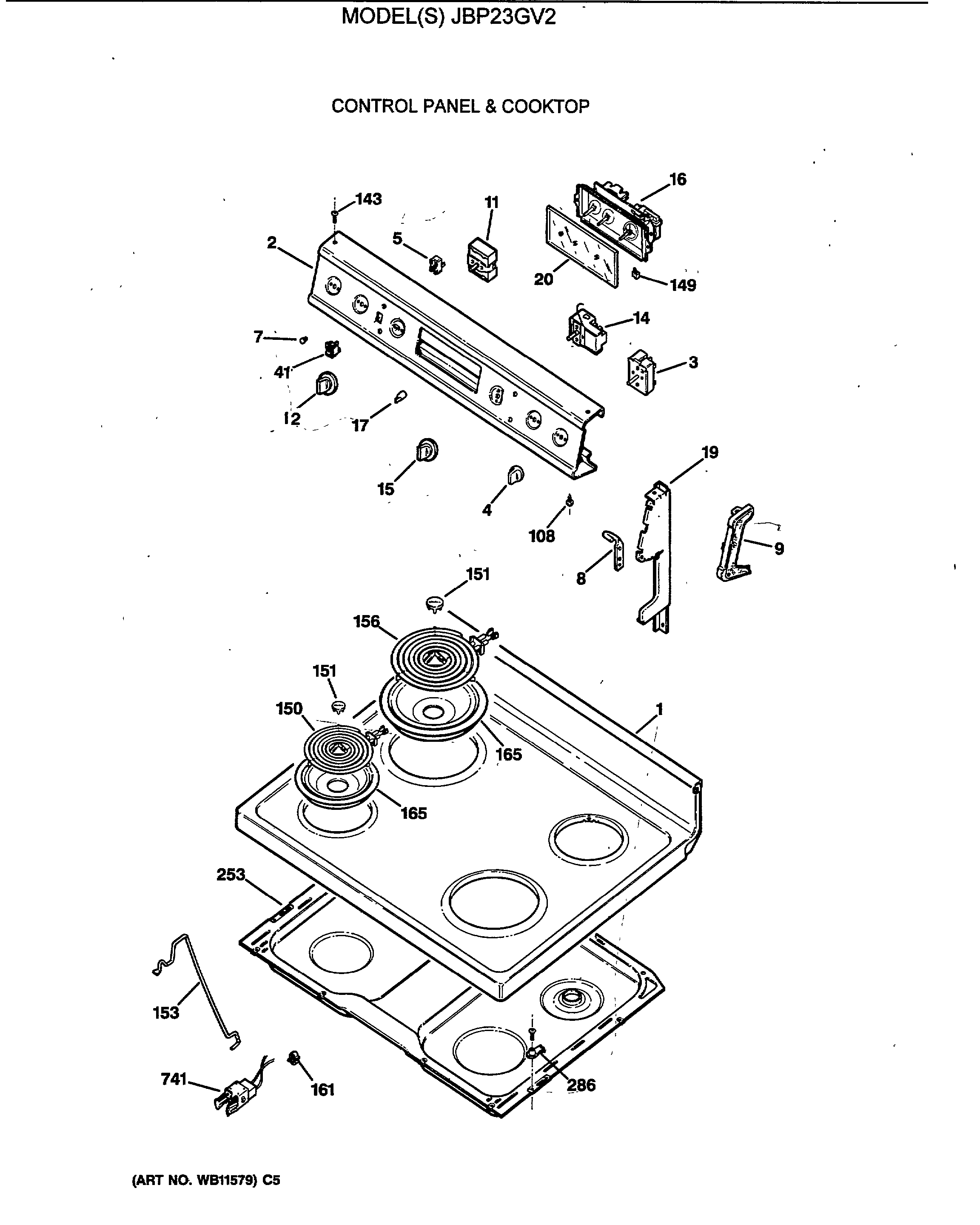

JBP23GV2 CONTROL PANEL & COOKTOP

Products

Position	Product
1	GEN WB62X5406
1	RANGE TOP ASM – WHITE
2	GEN WB36XX5756
3	WB21X36771 GE Surface Element Switch
4	GEN WB03X5834
5	GEN WB02X7698
5	GEN WB02X7697
7	JEWEL
8	GEN WB02X8127
8	GEN WB02X8126
9	GEN WB07X7130
9	GEN WB07X7131
11	SWITCH, OVEN-LOWER
12	GEN WB03X5832
14	GEN WB24X0176
14	GEN WB02X6274
15	GEN WB03X5833
16	GEN WB27X5555
17	WB3X5699 GE Oven Timer Knob Kit
19	GEN WB07X7270
19	PLATE END RH WH
19	GEN WB07X7271
19	PLATE END LH WH
20	GEN WB36X5574
41	GEN WB24X5290
108	WB1X5904 GE Oven Screw 8-18 BA
143	GEN WB01X5860
149	GEN WB02X7702
150	WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
151	GEN WB31X5021
153	GEN WB02X8114
156	WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
161	CLIP WIRE
165	WB31T10014 GE Oven 6-Inch Black Drip Bowl
165	WB31T10015 8" BOWL BLACK REAR BUBBLE
253	GEN WB49X5566
286	GEN WB02X8107
741	RECEPTACLE W/CLIP
752	WB1K5200 GE Oven Screw 340531
758	GEN WB01K5050
875	WH2X930 GE Screw
1458	TERMINAL BLK ASM (1 PIN)
32767	WB02T10415 GE Oven Anti-Tip Bracket Assembly
32767	GEN 31-0824
32767	GEN 49-8720
32767	WB17X171 GE Oven Terminal
