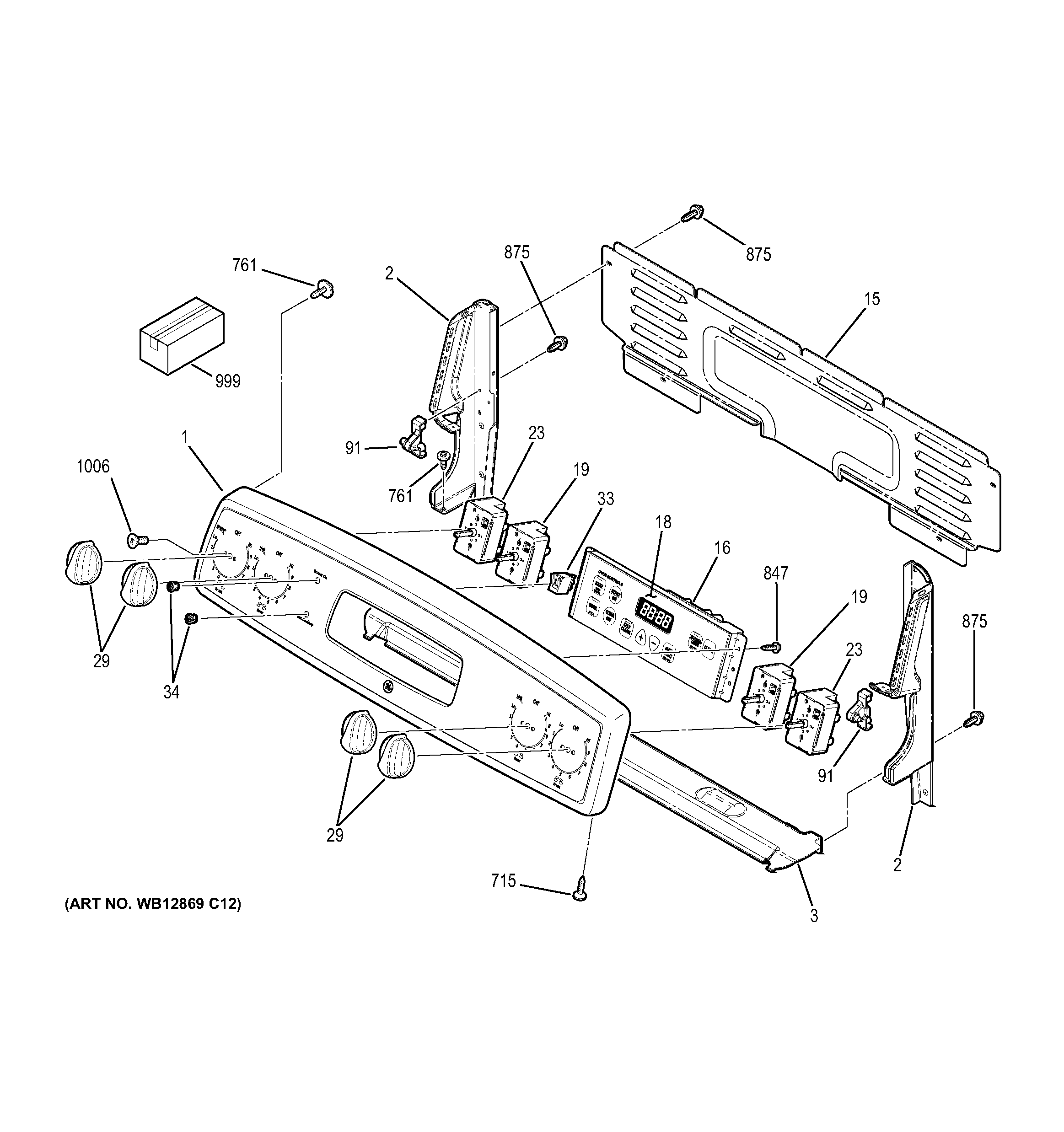

| 1 | GEN WB36T11218 |
| 1 | LABEL WIRE DIAGRAM |
| 2 | GEN WB36T11040 |
| 2 | WB36T11039 GE Oven End Plate Right (Black) |
| 3 | GEN WB02T10525 |
| 15 | COVER CONTROL |
| 16 | CONTROL OVEN TO9 (ELEC) |
| 18 | GEN WB27T11421 |
| 19 | WB24T10025 SWITCH INFIN(2500W) |
| 23 | WB24T10029 GE Oven Infinite Burner Switch |
| 29 | KNOB INFINITE (BK) |
| 33 | WB27T10626 GE Oven Indicator Light Pilot |
| 34 | WB25T10041 GE Oven Lens |
| 91 | GEN WB10T10125 |
| 715 | WD2X432 GE Dishwasher Screw |
| 761 | WB1X500D GE Oven Screw Package |
| 761 | WB1X5364 GE Oven Mounting Screw |
| 847 | WS02X10087 GE Screws 10-32 GX HXW 7/16 S |
| 875 | WH2X930 GE Screw |
| 875 | WZ4X245D GE Screw Package |
| 999 | GEN 31-15033 |
| 999 | GEN 49-80632 |
| 999 | GEN 31-10816 |
| 999 | GEN 31-10781 |
| 999 | INSTR INSTALL OVN DOOR |
| 1006 | WB01T10053 GE Oven 8-32 TPT FLR Screw |
