JBP24BB4WH CONTROL PANEL

JBP24BB4WH CONTROL PANEL

Written by

in

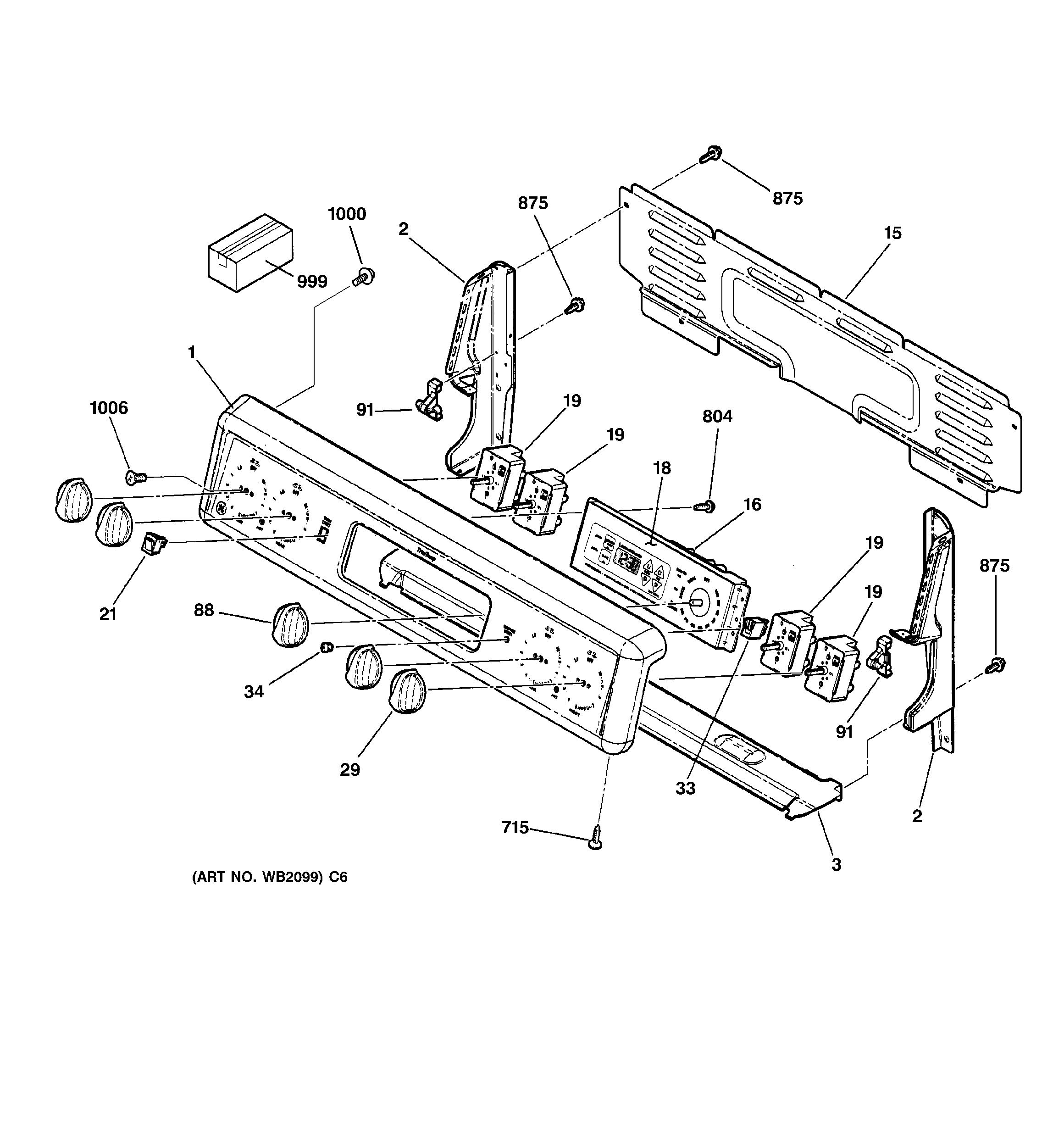

JBP24BB4WH CONTROL PANEL

Products

PositionProduct
1GEN WB36T10259
2GEN WB36T10220
2GEN WB36T10219
3GEN WB02T10022
15GEN WB34T10020
16GEN WB27T10231
18GEN WB27T10123
19WB24T10025 SWITCH INFIN(2500W)
19WB24T10029 GE Oven Infinite Burner Switch
21WB24T10042 GE Oven Rocker Switch
29WB03T10072 GE Oven Burner Knob
33WB27T10626 GE Oven Indicator Light Pilot
34JEWEL
88GEN WB03T10071
91GEN WB10T10002
715WD2X432 GE Dishwasher Screw
804WB1X681 GE Oven Screw
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
999GEN 49-8889
999GEN WB18T10053
999GEN WB18T10055
999MINI MANUAL & WIRE DIAG
999GEN WB18T10054
999GEN WB18T10052
999GEN 49-8939
999GEN 31-10414
999GEN 31-10301
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
