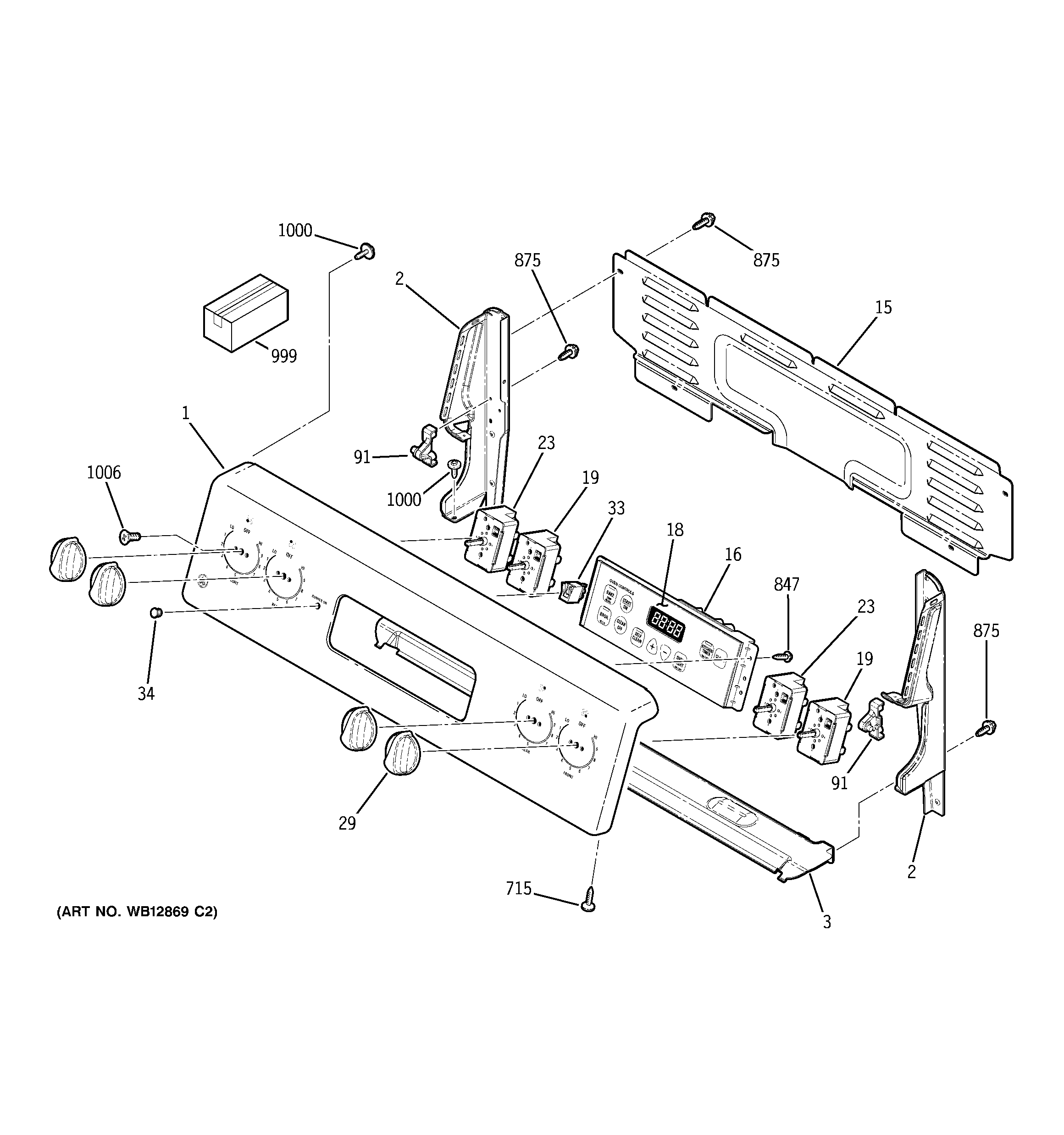

JBP25BM1WH CONTROL PANEL

Products

Position	Product
1	TRIM & BRACKET ASM
2	GEN WB36T11040
2	WB36T11039 GE Oven End Plate Right (Black)
3	SHIELD HEAT BKGD
15	GEN WB02T10392
16	CONTROL OVEN TO9 (ELEC)
18	WB27T11013 GE Oven Graphic Faceplate
19	WB24T10025 SWITCH INFIN(2500W)
23	WB24T10029 GE Oven Infinite Burner Switch
29	KNOB INFINITE (BK)
33	WB27T10626 GE Oven Indicator Light Pilot
34	WB25T10041 GE Oven Lens
91	WB10T10116 GE Range Top Hinge Pin
715	WD2X432 GE Dishwasher Screw
847	WB1X1118 GE Oven Screw 6-32T
875	WH2X930 GE Screw
875	WZ4X245D GE Screw Package
999	GEN 31-10620
999	GEN 31-10574
999	GEN 31-14544
999	INSTR INSTALL OVN DOOR
999	GEN 49-80494
1000	WB01T10016 GE Oven Screw 8-18 AB Hex
1006	WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
