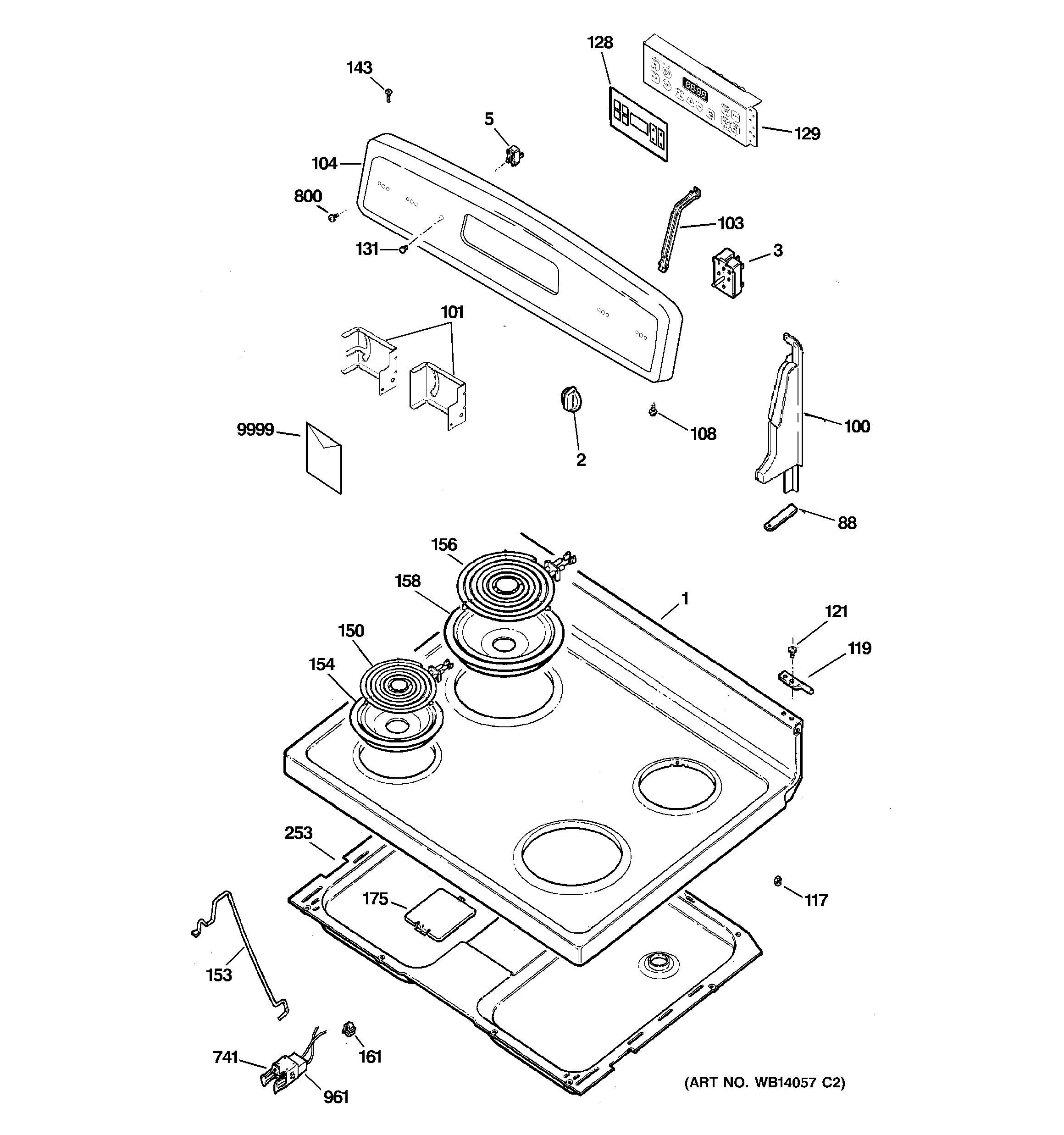

JBP27DM2BB CONTROL PANEL & COOKTOP

JBP27DM2BB CONTROL PANEL & COOKTOP

Written by

in

JBP27DM2BB CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10085 GE Oven Cooktop Black
2WB03K10301 GE Oven Knob
3WB24T10029 GE Oven Infinite Burner Switch
3WB24T10025 SWITCH INFIN(2500W)
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
88GEN WB02K0062
100GEN WB07K10260
100GEN WB07K10261
101WB37K10015 GE Right Cooktop Bracket
101WB37K10016 GE Cooktop Left Bracket
103GEN WB02K10181
104GEN WB36K10685
108WB1X5364 GE Oven Mounting Screw
117WB02K10075 GE Oven Plastic Nail
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WZ4X345D GE Screw Package 12 C92
128WB27K10264 GE Oven T09-B Overlay
129CONTROL OVEN TO9 (ELEC)
131WB25T10041 GE Oven Lens
143GEN WB01X5716
150SURFACE UNIT ASM 6
153WB02K10026 GE Oven Rod Support
154WB31T10014 GE Oven 6-Inch Black Drip Bowl
156WB30K10018 GE Oven 8" Burner Unit
158WB31T10015 8" BOWL BLACK REAR BUBBLE
161CLIP WIRE
175LATCH COVER
253WB64K10011 GE Oven Cooktop Box
741WB02K10133 GE Oven Receptacle Clip
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
800WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 31-10781
9999GEN 31-10831
9999GEN 49-88045
9999GEN 31-21361
