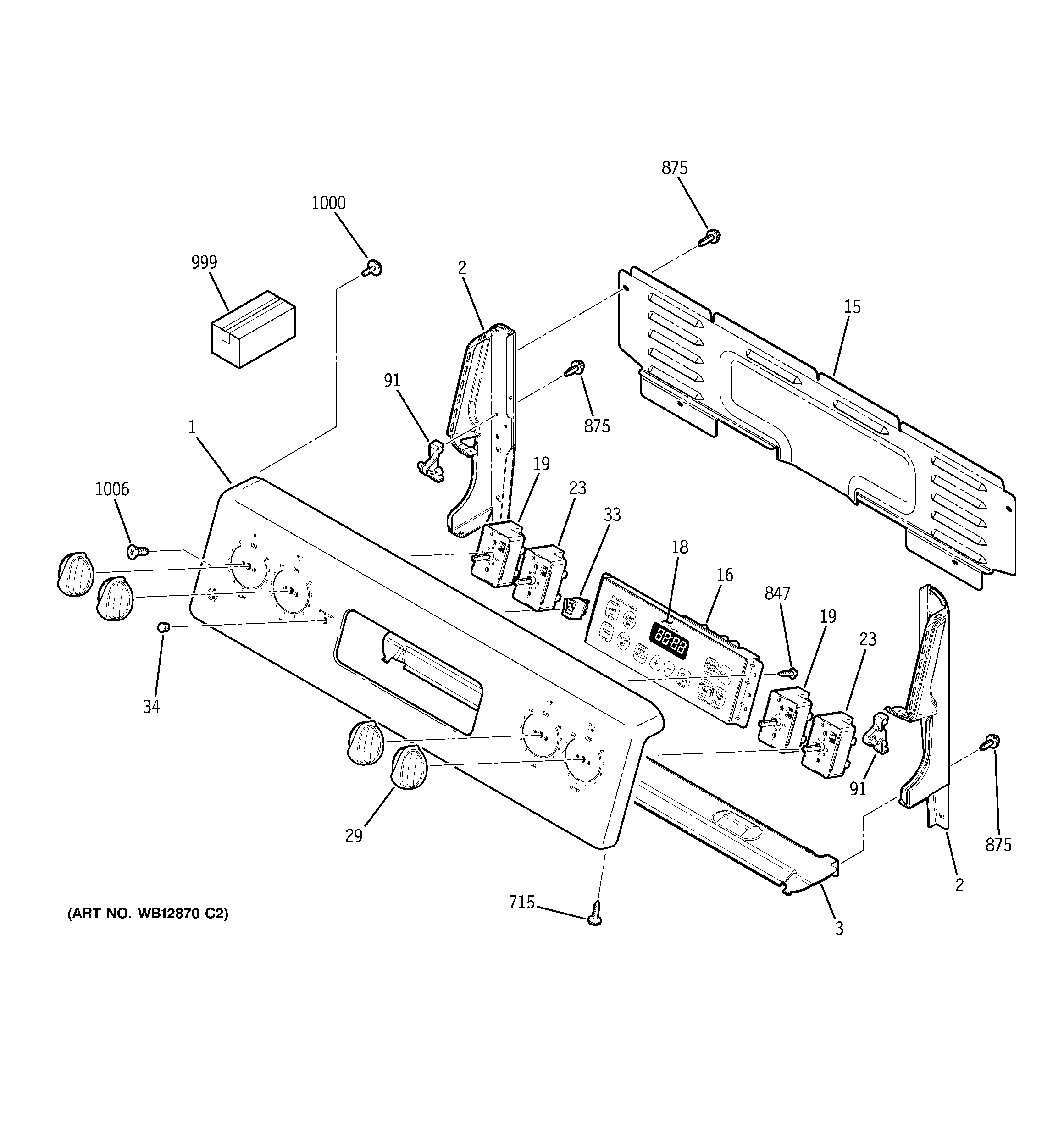

JBP28DR2CC CONTROL PANEL

JBP28DR2CC CONTROL PANEL

Written by

in

JBP28DR2CC CONTROL PANEL

Products

PositionProduct
1TRIM & BRACKET ASM
1GEN WB36T11164
1GEN WB36T11055
2GEN WB36T11042
2WB36T11039 GE Oven End Plate Right (Black)
2GEN WB36T11043
2GEN WB36T11040
2GEN WB36T11050
2GEN WB36T11051
3GEN WB02T10525
15COVER CONTROL
16CONTROL OVEN TO9 (ELEC)
18WB27T11005 GE Oven Faceplate Graphics Black
18WB27T11006 GE Oven Overlay
18GEN WB27T11012
19WB24T10025 SWITCH INFIN(2500W)
23WB24T10029 GE Oven Infinite Burner Switch
29WB03T10282 GE Oven Infinite Knob (White)
29KNOB INFINITE (BK)
29WB03T10285 GE Oven Infinite Control Knob
33WB27T10626 GE Oven Indicator Light Pilot
34WB25T10041 GE Oven Lens
91GEN WB10T10125
715WD2X433 GE Dishwasher Trim Screw
715WD2X434 GE Dishwasher Trim Screw
715WD2X432 GE Dishwasher Screw
847WB1X5364 GE Oven Mounting Screw
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
999GEN 31-14544
999GEN 31-10677
999INSTR INSTALL OVN DOOR
999GEN 49-80591
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
1006WB01T10053 GE Oven 8-32 TPT FLR Screw
