JBP28GR5SA CONTROL PANEL

JBP28GR5SA CONTROL PANEL

Written by

in

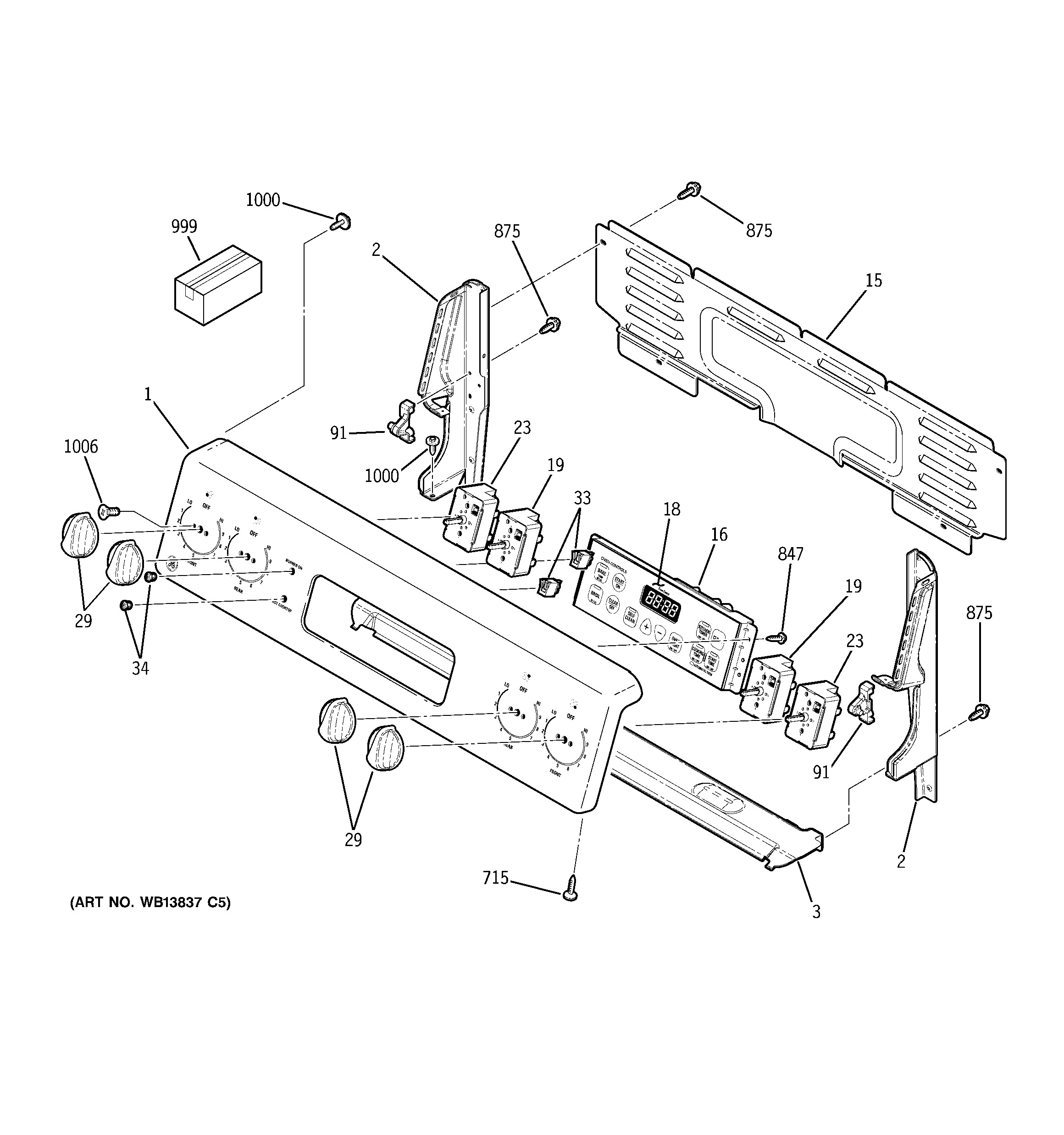

JBP28GR5SA CONTROL PANEL

Products

PositionProduct
1GEN WB36T11376
2GEN WB36T11040
2WB36T11039 GE Oven End Plate Right (Black)
3GEN WB02T10525
15COVER CONTROL
16CONTROL OVEN TO9 (ELEC)
18FACEPLATE GRAPHICS
19WB24T10025 SWITCH INFIN(2500W)
23WB24T10029 GE Oven Infinite Burner Switch
29KNOB INFINITE (BK)
33WB27T10626 GE Oven Indicator Light Pilot
34WB25T10041 GE Oven Lens
91GEN WB10T10125
847WS02X10087 GE Screws 10-32 GX HXW 7/16 S
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
999GEN 31-10780
999GEN 31-15033
999GEN 49-80632
999GEN 31-10816
999INSTR INSTALL OVN DOOR
999GEN 31-10781
1000WB1X5364 GE Oven Mounting Screw
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
