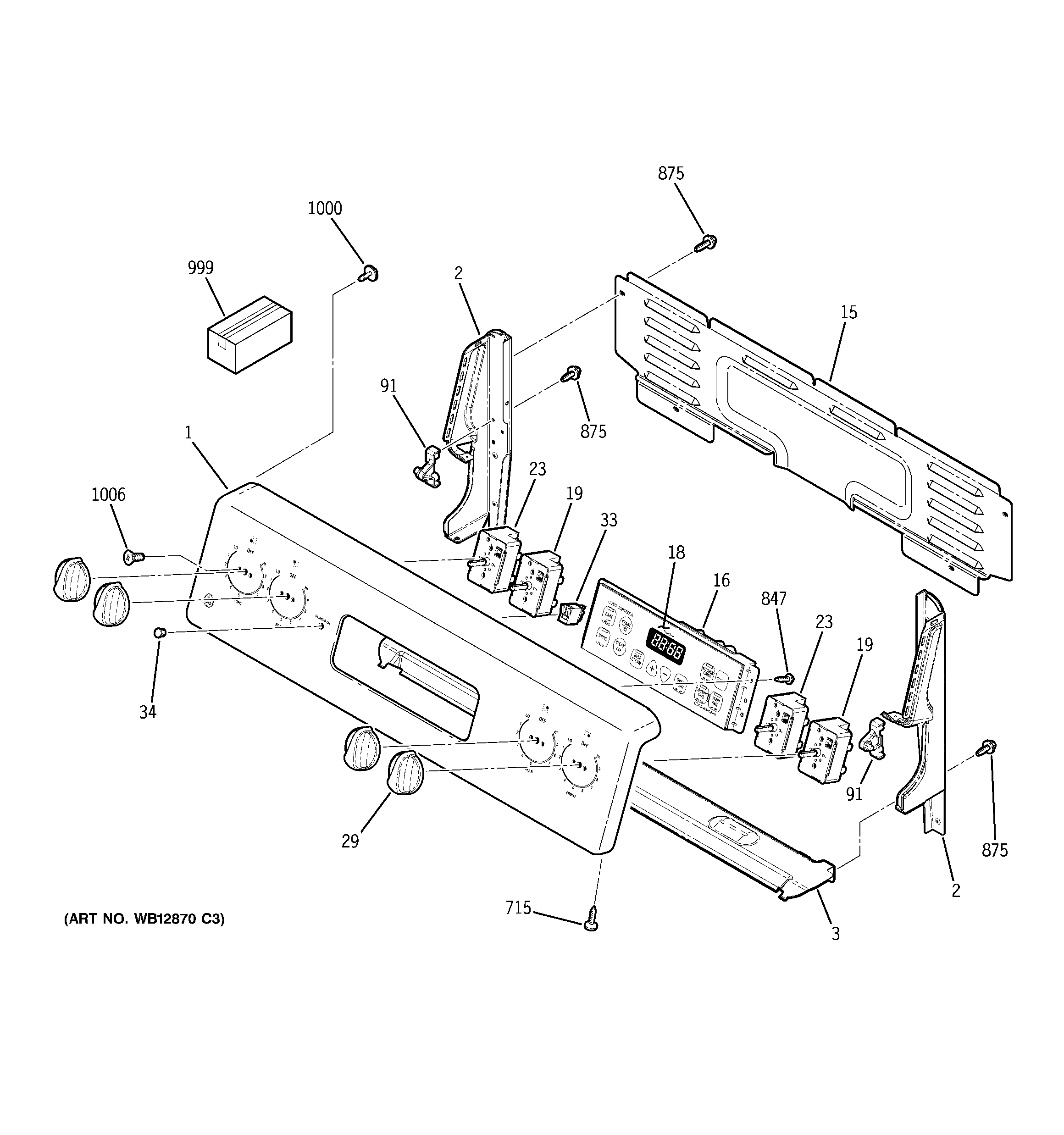

JBP35CM1WW CONTROL PANEL

Products

PositionProduct
1GEN WB36T11055
2GEN WB36T11043
2GEN WB36T11042
3SHIELD HEAT BKGD
15GEN WB02T10392
16CONTROL OVEN TO9 (ELEC)
18WB27T11006 GE Oven Overlay
19WB24T10025 SWITCH INFIN(2500W)
23WB24T10029 GE Oven Infinite Burner Switch
29WB03T10282 GE Oven Infinite Knob (White)
33WB27T10626 GE Oven Indicator Light Pilot
34WB25T10041 GE Oven Lens
91WB10T10116 GE Range Top Hinge Pin
715WD2X433 GE Dishwasher Trim Screw
847WB1X1118 GE Oven Screw 6-32T
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
999GEN 31-10620
999GEN 31-10574
999GEN 31-14544
999INSTR INSTALL OVN DOOR
999GEN 49-80494
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
