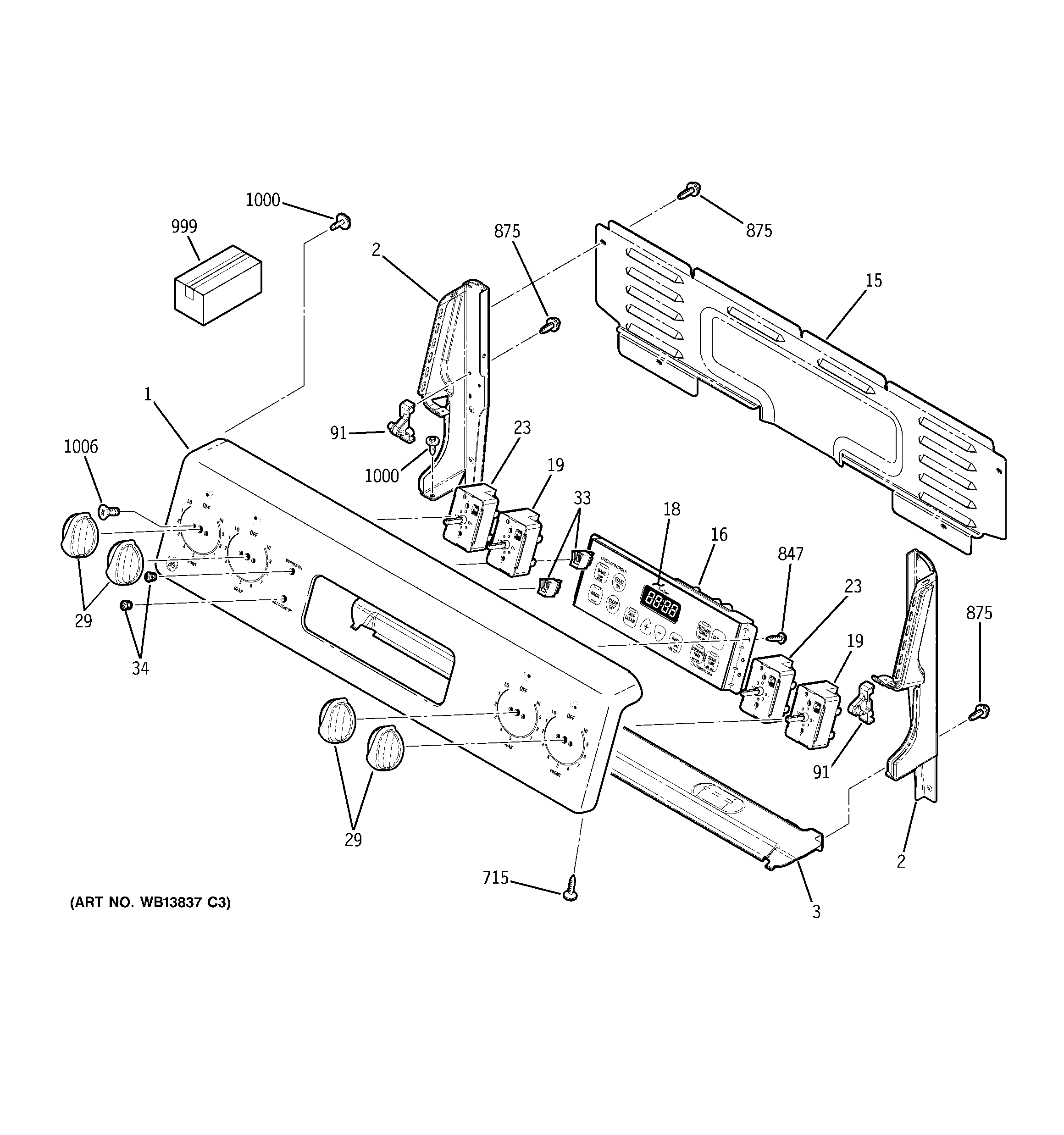

JBP35SM4SS CONTROL PANEL

JBP35SM4SS CONTROL PANEL

Written by

in

JBP35SM4SS CONTROL PANEL

Products

PositionProduct
1GEN WB36T11172
2GEN WB36T11040
2WB36T11039 GE Oven End Plate Right (Black)
3GEN WB02T10525
15COVER CONTROL
16CONTROL OVEN TO9 (ELEC)
18WB27T11005 GE Oven Faceplate Graphics Black
19WB24T10025 SWITCH INFIN(2500W)
23WB24T10029 GE Oven Infinite Burner Switch
29KNOB INFINITE (BK)
33WB27T10626 GE Oven Indicator Light Pilot
34WB25T10041 GE Oven Lens
91GEN WB10T10125
715WB1X500D GE Oven Screw Package
847WB1K5186 GE Oven Screw 6-32 X 3/5" 1/4" Hex D
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
999INSTR INSTALL OVN DOOR
999GEN 31-14544
999GEN 49-80632
999GEN 31-10780
1000GEN WH02X0941
1006WB01T10053 GE Oven 8-32 TPT FLR Screw
