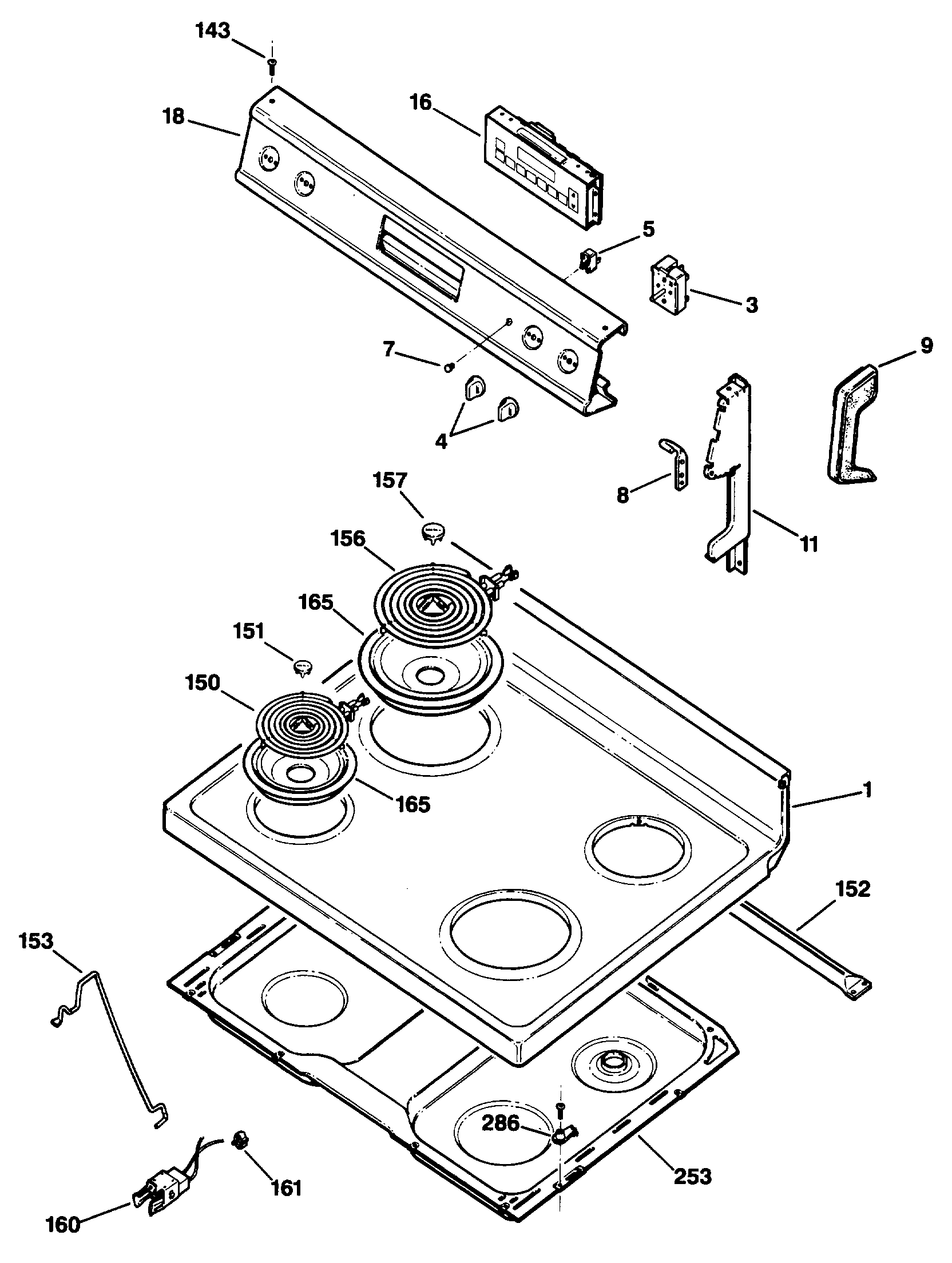

JBP45G*R1

JBP45G*R1

Written by

in

JBP45G*R1

Products

Position	Product
1	GEN WB62X5386
3	WB21X36771 GE Surface Element Switch
4	GEN WB03X5775
5	GEN WB02X7698
7	JEWEL
8	GEN WB02X8127
8	GEN WB02X8126
9	GEN WB07X7139
9	GEN WB07X7140
11	GEN WB07X7126
11	GEN WB07X7125
16	GEN WB27X5475
18	GEN WB36X5667
21	GEN WB49X5496
143	GEN WB01X5860
150	WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
151	GEN WB32X0052
152	GEN WB02X8113
153	GEN WB02X8114
156	WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
157	GEN WB32X0051
160	WB17X5113 GE Oven Cooktop Burner Receptacle Kit
161	CLIP WIRE
165	6" BOWL BLACK REAR BUBBLE
165	WB31M19 GE Range Rear 8" Black Porcelain Cooktop Drip Bowl Assembly
248	WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
251	GEN WB56X7030
252	WH2X930 GE Screw
252	GEN WB49X5498
253	GEN WB49X5499
255	GEN WB07X7036
256	GEN WB02X8116
258	GEN WB39X0051
259	SLIDE GUIDE
260	GEN WB10X5206
261	GEN WB10X0149
261	GEN WB10X0148
263	GEN WB02X6195
264	RING RETAINING
265	GEN WB02X6342
266	HOOK DOOR SPRING
267	GEN WB09X0144
268	GEN WB29X5022
272	WB17X5095 GE Black Oven Terminal
274	KNOCKOUT PLATE
275	GEN WB02X8104
276	GEN WB02X8105
277	SWITCH, OVEN LIGHT
279	WB08T10026 GE Range Push-In Receptacle
282	GEN WB24X5267
283	GEN WB02X3164
285	GEN WB02X8106
286	GEN WB02X8107
292	GEN WB01X0386
302	GEN WB02X7694
303	WB36X192 GE Oven Light Cover
332	GEN WB02X8109
342	GEN WB02X8108
348	PLATE GROUND
350	GEN WB55X5358
352	WB2X3138 GE Oven Self-Clean Door Gasket
355	GEN WB55X5359
356	GEN WB02X6574
358	GEN WB36X5659
359	GEN WB07X7129
360	GEN WB55X0378
361	WB1X5731D GE Oven Nut Package of 12
362	WB1X119D GE Oven Range Washer
363	GEN WB02X3030
365	GEN WB15X5174
371	GEN WB01X5732
373	GEN WB56K0019
391	GEN WB2X7881
392	CAM LINK
393	GEN WB09X5083
394	GEN WB07X7128
396	WB1X5858 GE Oven End Screw CP
397	WB15X5189 GE Oven Endcap 2-Pack
397	GEN WZ04X0384
398	GEN WB01X0600
399	GEN WB02X3285
415	GEN WB02X7608
440	WB01K10093 GE Oven Speednut
441	GEN WB02X8111
441	GEN WB02X8110
442	GEN WB01X5743
451	GEN WB58X5013
452	SLIDE TOP
453	GEN WB02X3394
457	GEN WB56X7033
457	GEN WB56X7032
459	WB1X537 GE Oven Screw
518	GEN WB02X8100
519	GEN WB02X8099
520	GEN WB02X3471
520	GEN WB53X5144
521	HOOK PACKAGE
523	GEN WB02X7693
526	GEN WB02X3165
528	WB48X5099 GE Stove Oven Rack
529	WB48X10056 GE Broil Pan Set, Large Porcelain
530	GEN WB48X5093
650	BAKE ELEMENT SELF CLEAN
651	WB44X173 GE Range Broil Element
700	GEN WB14X5037
701	GEN WB15X5190
702	GEN WB03X5774
703	RETAINER KNOB
704	GEN WB02X7707
705	GEN WB02X7710
706	PAWL LOCKING
707	GEN WB02X7709
709	GEN WB24X5097
710	GEN WB09X0148
711	GEN WB02X6212
712	RETAINER RING
713	GEN WB24X5251
714	GEN WB02X3475
731	GEN WB02X7711
732	SWITCH
740	CLIP WIRE BLACK
782	WB17X5060 GE Oven Block Assembly
1024	RANGE ONLY 40W 120V APPL BULB
32767	GEN 31-1047-B
32767	GEN 31-1047
32767	GEN 31-0824
32767	WB02T10415 GE Oven Anti-Tip Bracket Assembly
32767	GEN 49-8257
