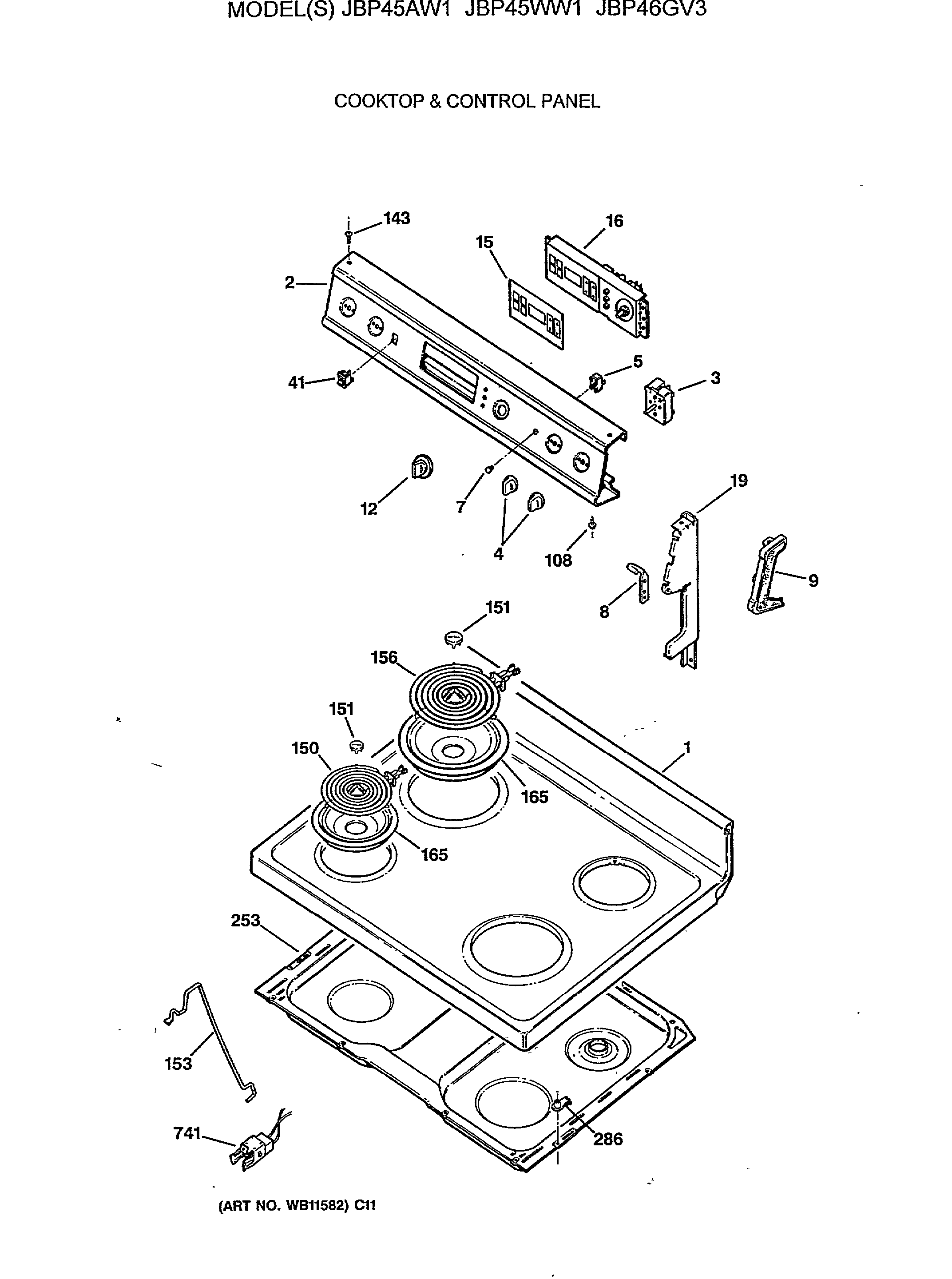

JBP46GV3 COOKTOP & CONTROL PANEL

Products

Position	Product
1	RANGE TOP ASM – WHITE
2	GEN WB36X5753
3	WB21X36771 GE Surface Element Switch
4	KNOB (WHITE/RED STRIPE)
5	GEN WB02X7697
7	JEWEL
8	GEN WB02X8126
8	GEN WB02X8127
9	CAP END LH WH
9	CAP END RH WH
12	KNOB
16	GEN WB02X8268
16	GEN WB09X5121
16	GEN WB27X5565
16	GEN WB27X5581
16	GEN WB02X8324
19	PLATE END RH WH
19	PLATE END LH WH
41	SWITCH ROCKER WH
108	WB1X5904 GE Oven Screw 8-18 BA
143	GEN WB01X5874
150	WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
151	GEN WB31X5021
153	GEN WB02X8114
156	WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
165	WB31T10013 GE Oven 8" Drip Bowl
165	WB31T10012 GE Oven 6" Gray Drip Bowl
248	SENSOR ASM
253	GEN WB49X5566
286	GEN WB02X8107
350	GEN WB55X5382
360	GEN WB55X5403
650	BAKE ELEMENT SELF CLEAN
651	WB44X173 GE Range Broil Element
709	GEN WB14X5043
741	RECEPTACLE W/CLIP
875	WH2X930 GE Screw
1458	GEN WB01X5967
1458	TERMINAL BLK ASM (1 PIN)
1458	GEN WB01X5968
