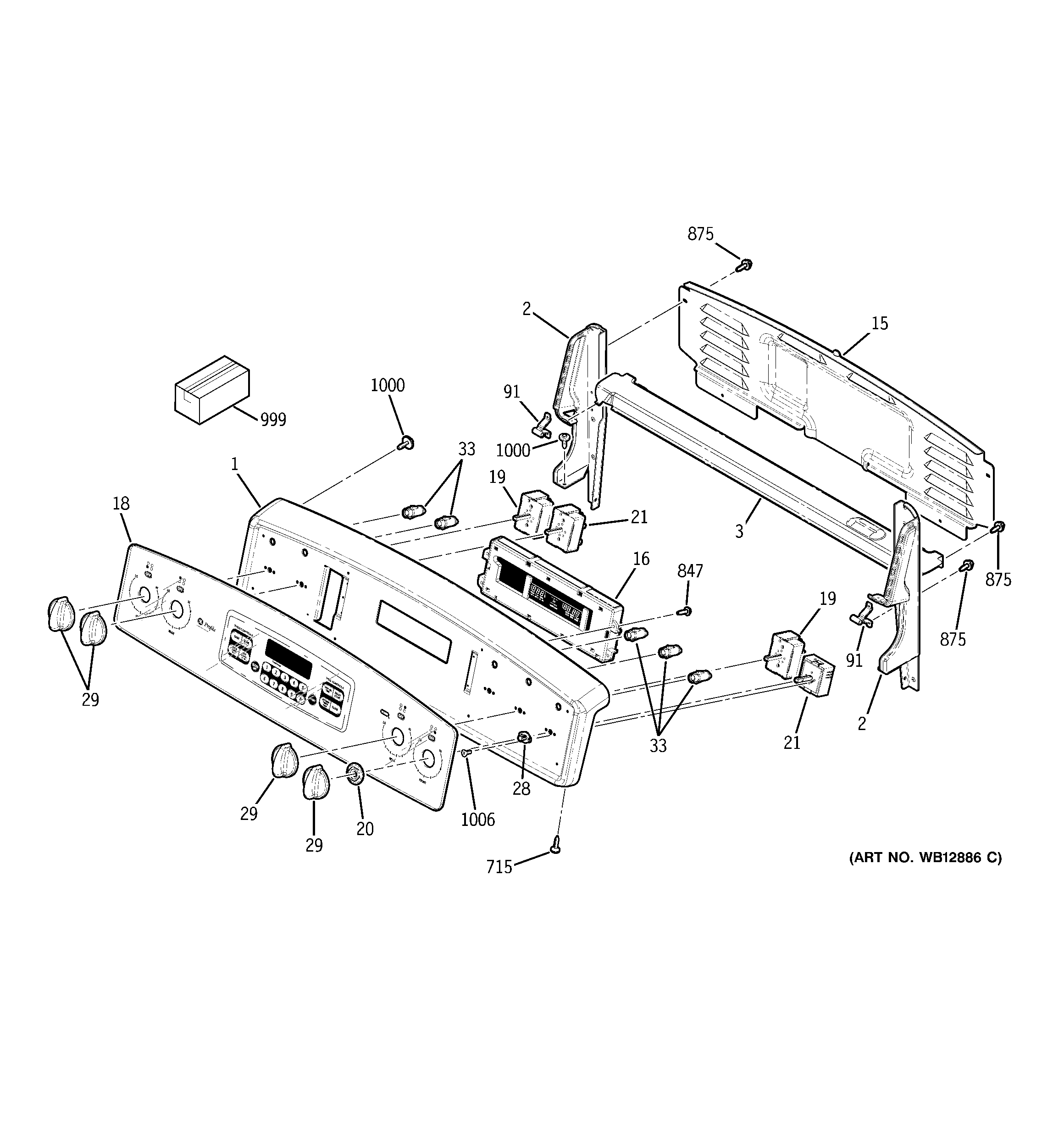

JBP48WH1WW CONTROL PANEL

JBP48WH1WW CONTROL PANEL

Written by

in

JBP48WH1WW CONTROL PANEL

Products

PositionProduct
1TRIM CONTROL WH
2GEN WB36T10233
2GEN WB36T10232
3GEN WB02T10022
15GEN WB34T10020
16GEN WB27T10502
18GEN WB07T10419
19WB24T10028 GE Oven Infinite Switch
20WB02T10046 GE Oven Crystal Retainer
21WB24T10026 GE Oven Infinite Control Switch (2000W)
21WB24T10012 GE Oven Infinite Switch
28WB02T10047 GE Oven Crystal Mount Assembly
29KNOB PROFILE SU
33GEN WB25T10031
33GEN WB25T10034
91GEN WB10T10002
715WD2X432 GE Dishwasher Screw
847WB1K5167 GE Screw 8-18 X 3/8"
847WB1X1118 GE Oven Screw 6-32T
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
999GEN 31-10414
999GEN 49-80115
999GEN 31-10556
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01T10053 GE Oven 8-32 TPT FLR Screw
