JBP49CK1CC DOOR

JBP49CK1CC DOOR

Written by

in

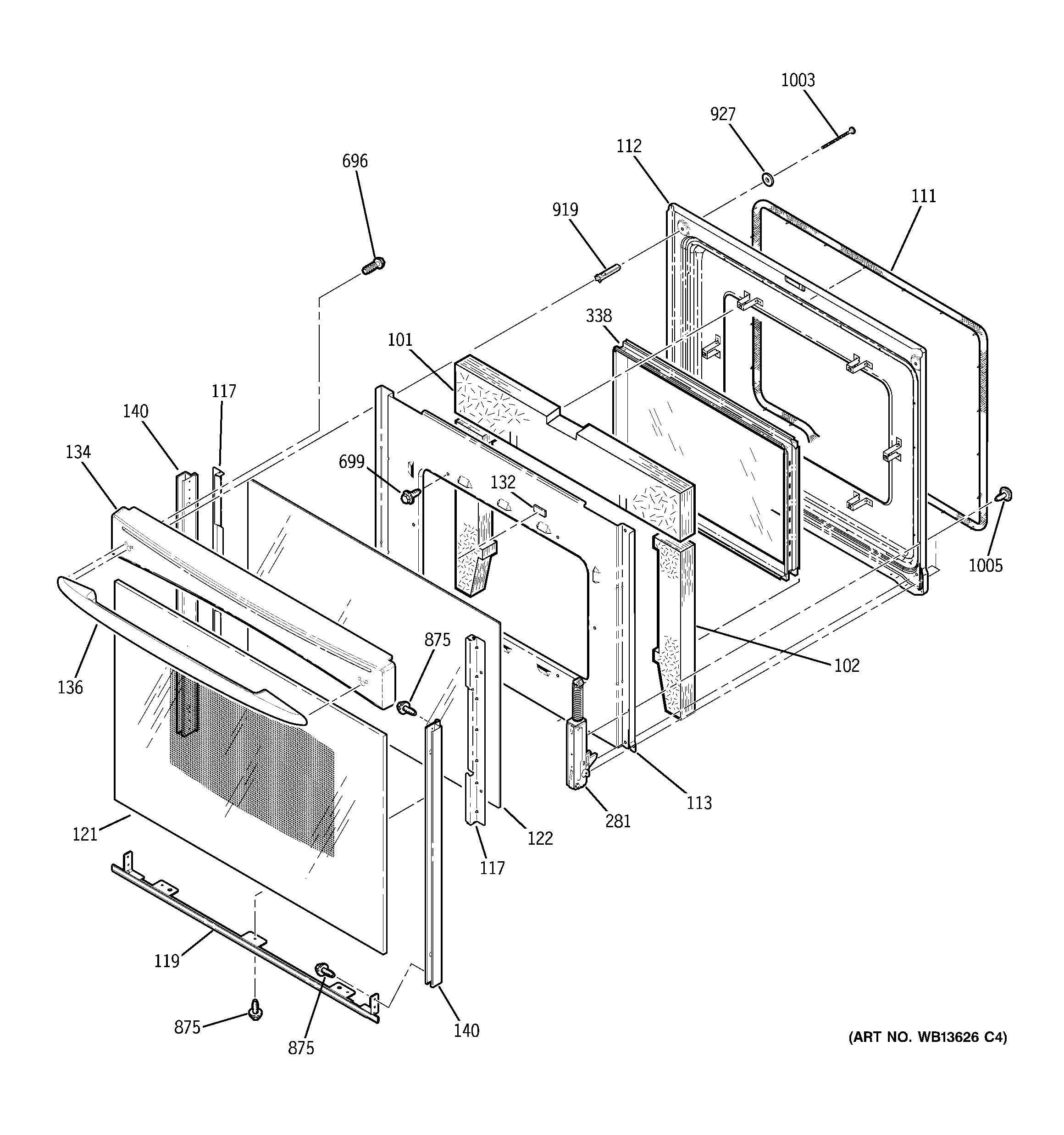

JBP49CK1CC DOOR

Products

PositionProduct
101WB35T10077 GE Oven Door Insulation
102INSULATION DOOR
111WB04T10022 GE Oven Door Gasket Seal
112GEN WB55T10155
113WB56T10178 GE Oven Door Insulation Retainer
117WB56T10373 GE Oven Door Retainer Kit
119WB07X42948 GE Range Bottom Trim Channel White
119WB07X42966 GE Range Bottom Trim Channel
119WB07X32931 GE Bisque Bottom Trim Channel
121GEN WB56T10191
121GEN WB56T10190
121GEN WB56T10192
122WB57K5230 GE Oven Inner Glass Door
132WB01T10026 GE Oven Door Pad
134GEN WB07T10484
134GEN WB07T10486
134GEN WB07T10487
136GEN WB15T10138
136WB15T10136 GE Oven Drawer Handle
136GEN WB15T10137
140GEN WB56T10098
140FRAME DOOR SIDE
140WB56T10290 GE Oven Door Side Frame (White)
281WB10T10067 GE Oven Door Hinge
338WB56T10105 GE Oven Inner Window Assembly
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
919SPACER
927WB1X119D GE Oven Range Washer
1003GEN WB01T10019
1005WB01T10008 GE Oven Screw 10-32
