JBP56G*R2

JBP56G*R2

Written by

in

JBP56G*R2

Products

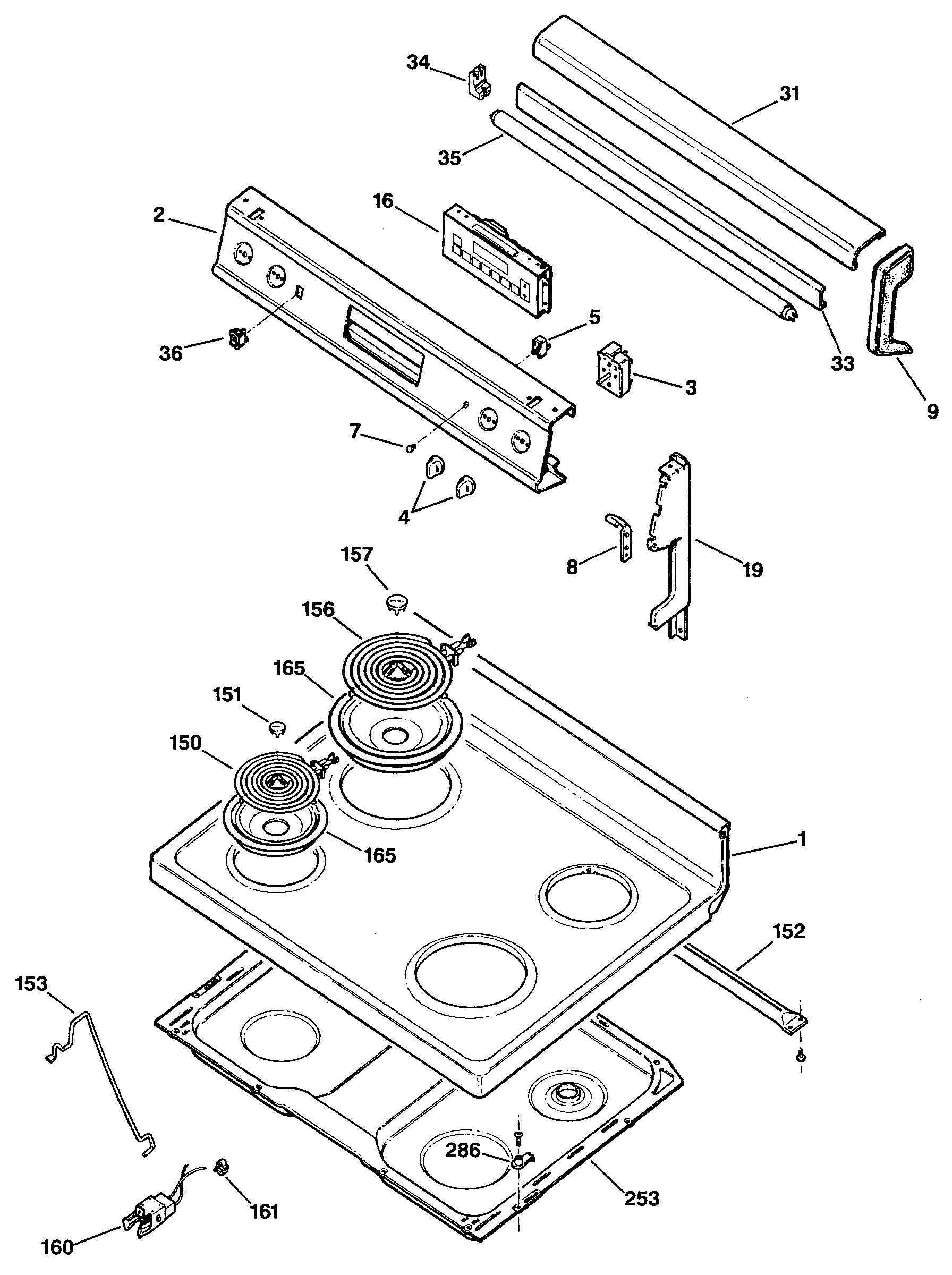

Position	Product
1	RANGE TOP ASM – WHITE
2	GEN WB36X5664
3	WB21X36771 GE Surface Element Switch
4	GEN WB03X5782
5	GEN WB02X7698
7	JEWEL
8	GEN WB02X8126
8	GEN WB02X8127
9	GEN WB07X7124
9	GEN WB07X7123
14	GEN WB09X0148
16	GEN WB27X5476
19	GEN WB07X7164
19	GEN WB07X7161
19	GEN WB07X7162
19	GEN WB07X7163
21	GEN WB49X5496
31	GEN WB07X7134
33	GEN WB07K0040
34	"F" LAMP SOCKET RH LH
36	GEN WB24X5263
56	WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
57	WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
151	GEN WB32X0052
152	GEN WB02X8128
153	GEN WB02X8114
154	BOWL BURNER 6 (CH)
157	GEN WB32X0051
158	BOWL BURNER 8 (CH)
160	WB17X5113 GE Oven Cooktop Burner Receptacle Kit
161	CLIP WIRE
248	WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
251	GEN WB56X7030
252	GEN WB49X5498
252	WH2X930 GE Screw
253	GEN WB49X5499
254	GEN WB01X0549
255	GEN WB07X7036
256	GEN WB02X8116
258	GEN WB39X0051
259	SLIDE GUIDE
260	GEN WB10X5206
260	GEN WB02X3165
261	GEN WB10X0148
261	GEN WB10X0149
262	GEN WB02X3193
263	GEN WB02X6195
264	RING RETAINING
265	GEN WB02X6342
266	HOOK DOOR SPRING
267	GEN WB9X5117
272	WB17X5095 GE Black Oven Terminal
274	KNOCKOUT PLATE
275	GEN WB02X8104
276	GEN WB2X8105
277	SWITCH, OVEN LIGHT
279	WB08T10026 GE Range Push-In Receptacle
282	GEN WB24X5267
283	GEN WB02X3164
285	GEN WB02X8106
286	GEN WB02X8107
291	GEN WB08K0003
292	GEN WB01X0386
302	GEN WB02X7694
303	WB36X192 GE Oven Light Cover
314	PAD
321	WB1X5731D GE Oven Nut Package of 12
326	GEN WB02X6574
327	WB01K10093 GE Oven Speednut
328	SCR 8-22 BTHW 9/16 S HLT
332	GEN WB02X8109
342	GEN WB02X8108
348	PLATE GROUND
350	GEN WB55X5358
352	WB2X3138 GE Oven Self-Clean Door Gasket
354	WB1X536 GE Oven Screw
355	GEN WB55X5359
358	GEN WB36X5665
359	GEN WB07X7129
360	GEN WB55X0378
362	WB1X119D GE Oven Range Washer
363	GEN WB02X3030
365	GEN WB15X5177
371	GEN WB01X5732
373	GEN WB56K0019
391	GEN WB2X7881
392	CAM LINK
393	GEN WB09X5083
394	GEN WB07X7135
397	GEN WZ04X0384
397	WB15X5189 GE Oven Endcap 2-Pack
398	GEN WB01X0600
399	GEN WB02X3285
415	GEN WB02X7608
441	GEN WB02X8110
441	GEN WB02X8111
452	SLIDE TOP
453	GEN WB02X3394
457	GEN WB56X7032
457	GEN WB56X7033
459	WB1X537 GE Oven Screw
518	GEN WB02X8100
519	GEN WB02X8099
520	GEN WB53X5144
521	HOOK PACKAGE
523	GEN WB02X7693
528	WB48X5099 GE Stove Oven Rack
529	WB48X10056 GE Broil Pan Set, Large Porcelain
530	BROILER PAN RACK
532	GEN WB38X5063
650	BAKE ELEMENT SELF CLEAN
651	WB44X173 GE Range Broil Element
652	SUPPORT BROIL
700	GEN WB14X5037
701	GEN WB15X5190
703	RETAINER KNOB
704	GEN WB02X7707
705	GEN WB02X7710
706	PAWL LOCKING
707	GEN WB02X7709
709	GEN WB24X0197
709	GEN WB24X5097
711	GEN WB02X6212
712	RETAINER RING
713	GEN WB24X5251
714	GEN WB02X3475
731	GEN WB02X7711
732	SWITCH
740	CLIP WIRE BLACK
741	LAMP 60W
782	WB17X5060 GE Oven Block Assembly
1024	RANGE ONLY 40W 120V APPL BULB
32767	WB02T10415 GE Oven Anti-Tip Bracket Assembly
32767	GEN 49-8257
32767	GEN 31-0824
