JBP56G*R3

JBP56G*R3

Written by

in

JBP56G*R3

Products

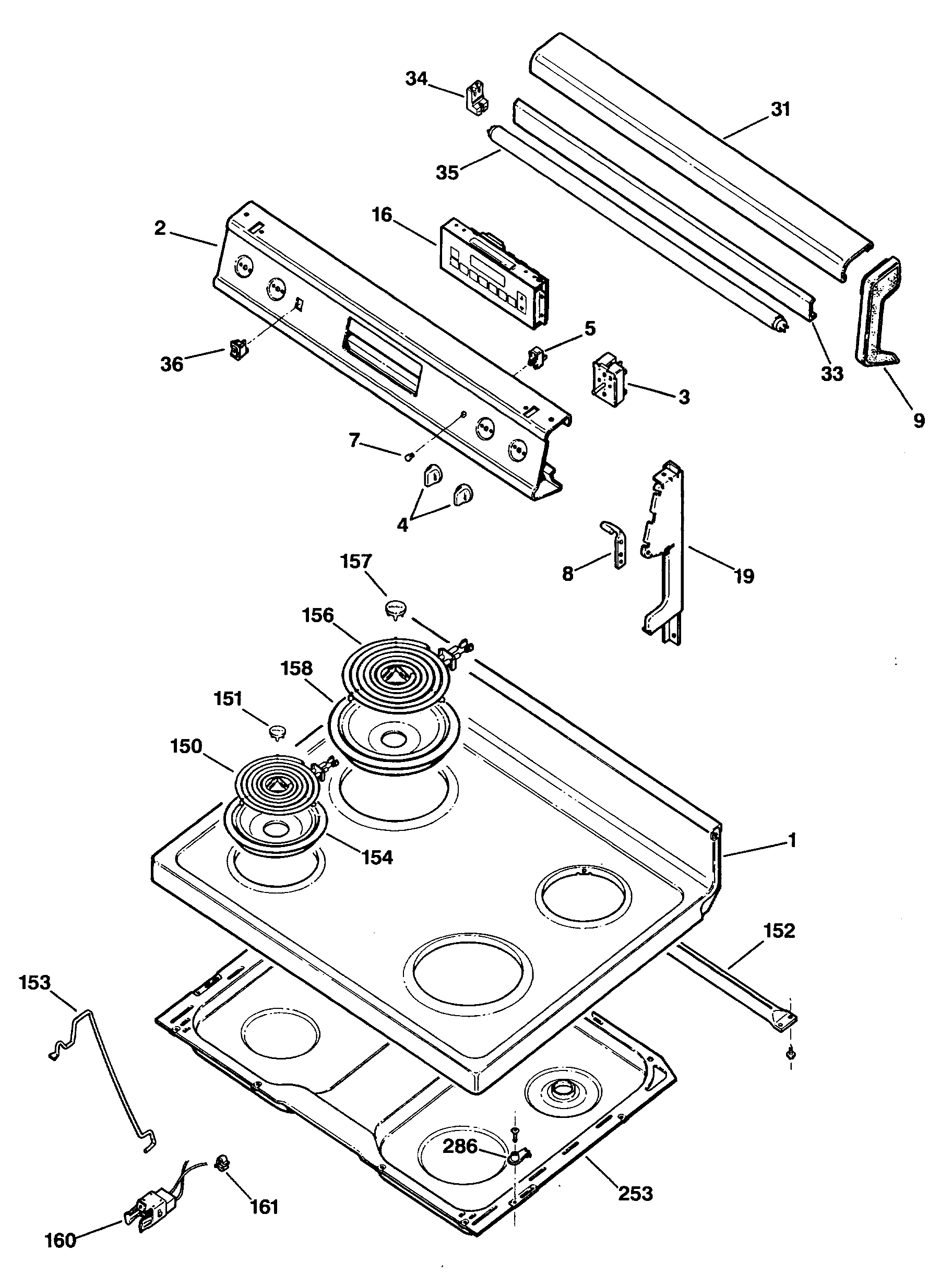

Position	Product
1	GEN WB62X5410
2	GEN WB36X5664
3	WB21X36771 GE Surface Element Switch
4	GEN WB03X5782
5	GEN WB02X7697
7	JEWEL
8	GEN WB02X8127
8	GEN WB02X8126
9	GEN WB07X7123
9	GEN WB07X7124
16	GEN WB27X5476
19	GEN WB07X7161
19	GEN WB07X7164
19	GEN WB07X7163
19	GEN WB07X7162
21	GEN WB49X5521
31	GEN WB07X7134
33	GEN WB07K0040
34	"F" LAMP SOCKET RH LH
36	GEN WB24X5263
150	WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
151	GEN WB32X0052
152	GEN WB02X8128
153	GEN WB02X8114
154	BOWL BURNER 6 (CH)
156	WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
157	GEN WB32X0051
158	BOWL BURNER 8 (CH)
161	CLIP WIRE
248	WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
251	GEN WB56X7049
252	WH2X930 GE Screw
252	GEN WB49X5498
253	GEN WB49X5499
254	GEN WB01X0549
256	GEN WB02X8116
258	GEN WB39X0051
259	SLIDE GUIDE
260	GEN WB10X5206
261	GEN WB10X0148
261	GEN WB10X0149
262	GEN WB02X3193
263	GEN WB02X6195
264	RING RETAINING
265	GEN WB02X6342
266	HOOK DOOR SPRING
267	GEN WB09X5117
272	WB17X5095 GE Black Oven Terminal
274	KNOCKOUT PLATE
275	GEN WB02X8104
276	GEN WB2X8105
277	SWITCH, OVEN LIGHT
279	WB08T10026 GE Range Push-In Receptacle
285	GEN WB02X8106
286	GEN WB02X8107
291	GEN WB08K0003
292	GEN WB01X0386
302	GEN WB02X7694
303	WB36X192 GE Oven Light Cover
314	PAD
328	SCR 8-22 BTHW 9/16 S HLT
342	GEN WB02X8241
348	PLATE GROUND
350	GEN WB55X5368
352	WB2X3138 GE Oven Self-Clean Door Gasket
354	WB1X536 GE Oven Screw
355	GEN WB55X5359
356	GEN WB02X6574
358	GEN WB36X5687
359	GEN WB07X7129
360	GEN WB55X0378
361	WB1X5731D GE Oven Nut Package of 12
362	WB1X119D GE Oven Range Washer
363	GEN WB02X3030
365	GEN WB15X5177
373	GEN WB56K0019
375	GEN WB36X5679
391	GEN WB02X7881
392	CAM LINK
393	GEN WB09X5083
394	GEN WB07X7135
396	GEN WZ04X0384
397	WB15X5189 GE Oven Endcap 2-Pack
398	GEN WB01X0600
399	GEN WB02X3285
415	GEN WB02X7608
440	WB01K10093 GE Oven Speednut
441	GEN WB02X8111
441	GEN WB02X8110
451	GEN WB58X5015
452	SLIDE TOP
453	GEN WB02X3394
457	GEN WB56X7033
457	GEN WB56X7032
459	WB1X537 GE Oven Screw
518	GEN WB02X8100
520	GEN WB53X5148
521	GEN WB09X5118
523	GEN WB02X7693
528	WB48X5099 GE Stove Oven Rack
529	WB48X10056 GE Broil Pan Set, Large Porcelain
530	BROILER PAN RACK
532	GEN WB38X5063
650	BAKE ELEMENT SELF CLEAN
651	WB44X173 GE Range Broil Element
652	SUPPORT BROIL
701	GEN WB15X5198
702	LATCH KNOB
703	RETAINER KNOB
704	GEN WB02X8220
705	GEN WB02X8221
706	GEN WB24X5292
706	GEN WB02X8222
709	GEN WB14X5040
740	CLIP WIRE BLACK
741	SCREW – MT. TRIM
741	LAMP 60W
741	RECEPTACLE W/CLIP
769	WB1X500D GE Oven Screw Package
782	WB17X5060 GE Oven Block Assembly
961	WB17X5121 GE Oven Receptacle Assembly
1024	RANGE ONLY 40W 120V APPL BULB
32767	GEN WB18X5126
32767	WB17X171 GE Oven Terminal
32767	WB02T10415 GE Oven Anti-Tip Bracket Assembly
32767	GEN 31-1411
32767	GEN 31-0824
32767	GEN 49-8383
