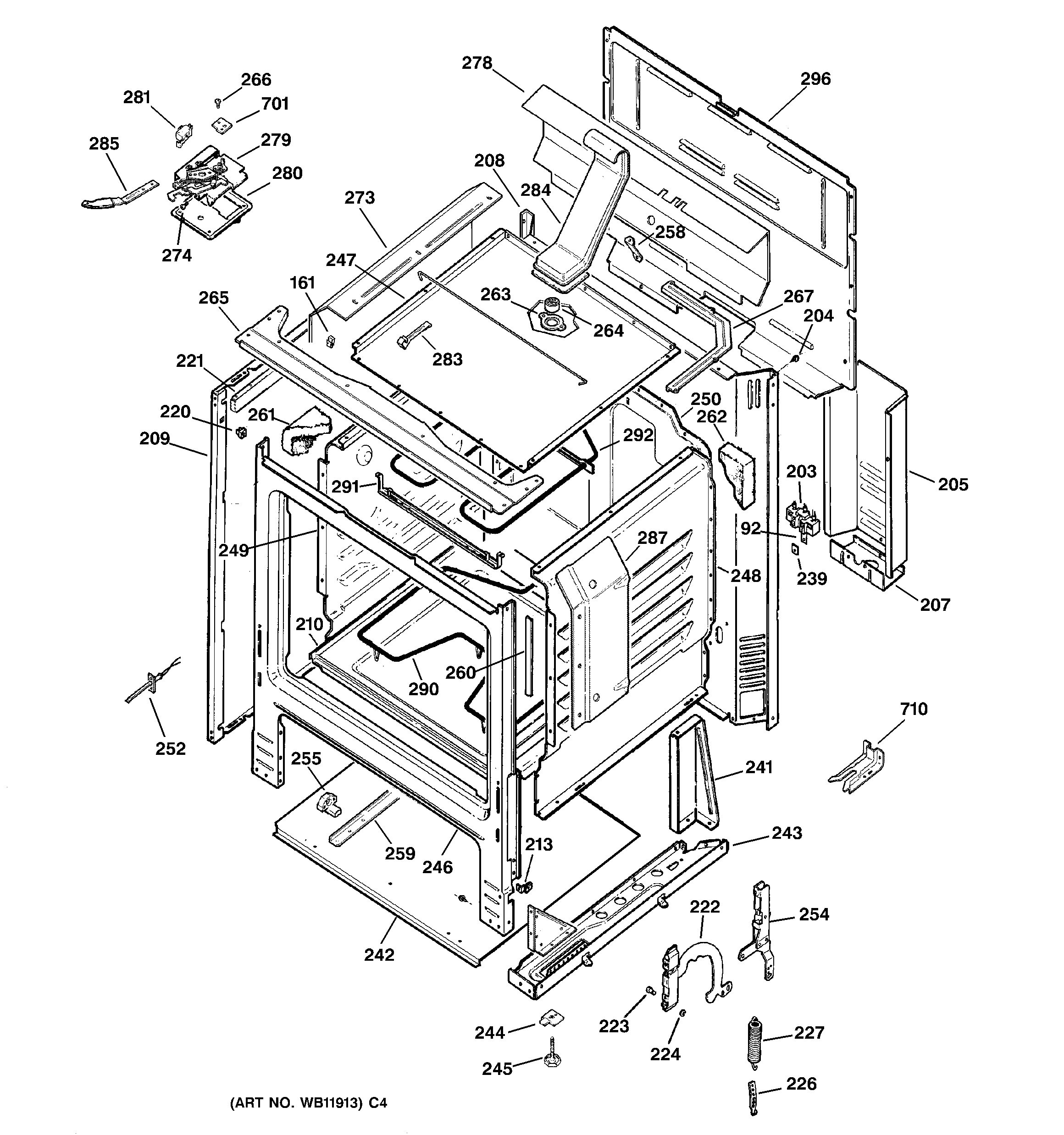

JBP60BC1WH BODY PARTS

Products

Position	Product
92	GEN WB02T10030
161	CLIP WIRE
203	WB17X5095 GE Black Oven Terminal
204	WZ4X345D GE Screw Package 12 C92
204	WB1K5062 GE Oven Screw
205	WB34K10029 GE Oven Guard Terminal
207	WB02K10029 GE Oven Mounting Terminal Bracket
208	GEN WB63K10005
209	GEN WB63K10013
210	WB63K10006 GE Oven Bottom Assembly
213	WB1K3 GE Oven Speed Nut
220	GEN WB02K0008
221	WB7K403 GE Oven Top Door Trim
222	WB10K12 GE Oven Hinge Assembly
223	GEN WB02X6195
224	RING RETAINING
226	GEN WB09K10001
227	GEN WB09K0004
239	GEN WB01X5968
239	PLATE GROUND
241	CLIP WINDOW
242	GEN WB63K10009
243	GEN WB63K0007
243	GEN WB63K0006
244	GEN WB02K0001
245	GEN WB02X7701
246	GEN WB63K10019
247	WB63K10023 GE Oven Top
248	SENSOR ASM
248	GEN WB63K10010
249	GEN WB63K10011
250	GEN WB53K10011
254	GEN WB10K0014
254	GEN WB10K0013
254	GEN WB01K0053
255	WB02K10158 GE Oven Drawer Support
258	WB02K10040 GE Oven Vent Bracket
259	WB39K16 GE Oven Drawer Rail
260	WB32K2 GE Oven Gasket Seal
261	GEN WB35K10011
262	GEN WB35K10022
263	WB02K10039 GE Vent Ring
264	GEN WB35K10018
265	GEN WB34K10044
266	GEN WB01K0012
266	GEN WZ05X0124
267	WB02K10038 GE Corner Brace
273	GEN WB53K0012
273	GEN WB53K0011
274	GEN WB01K0044
279	WB02K10144 GE Oven Door Latch Assembly
280	GEN WB02K0029
281	GEN WB24K10013
283	WB02X21679 GE Oven Wire Clip
284	GEN WB38K10003
285	GEN WB15K10020
290	WB30X46987 GE Bake Element
291	WB02K10028 GE Oven Broil Support
292	WB30X46986 GE Broil Element
296	GEN WB34K10031
701	SHIELD SWITCH
710	WB02K10254 GE Oven Anti-Tip Bracket Assembly
