JBP61BD2WH CONTROLS & COOKTOP

JBP61BD2WH CONTROLS & COOKTOP

Written by

in

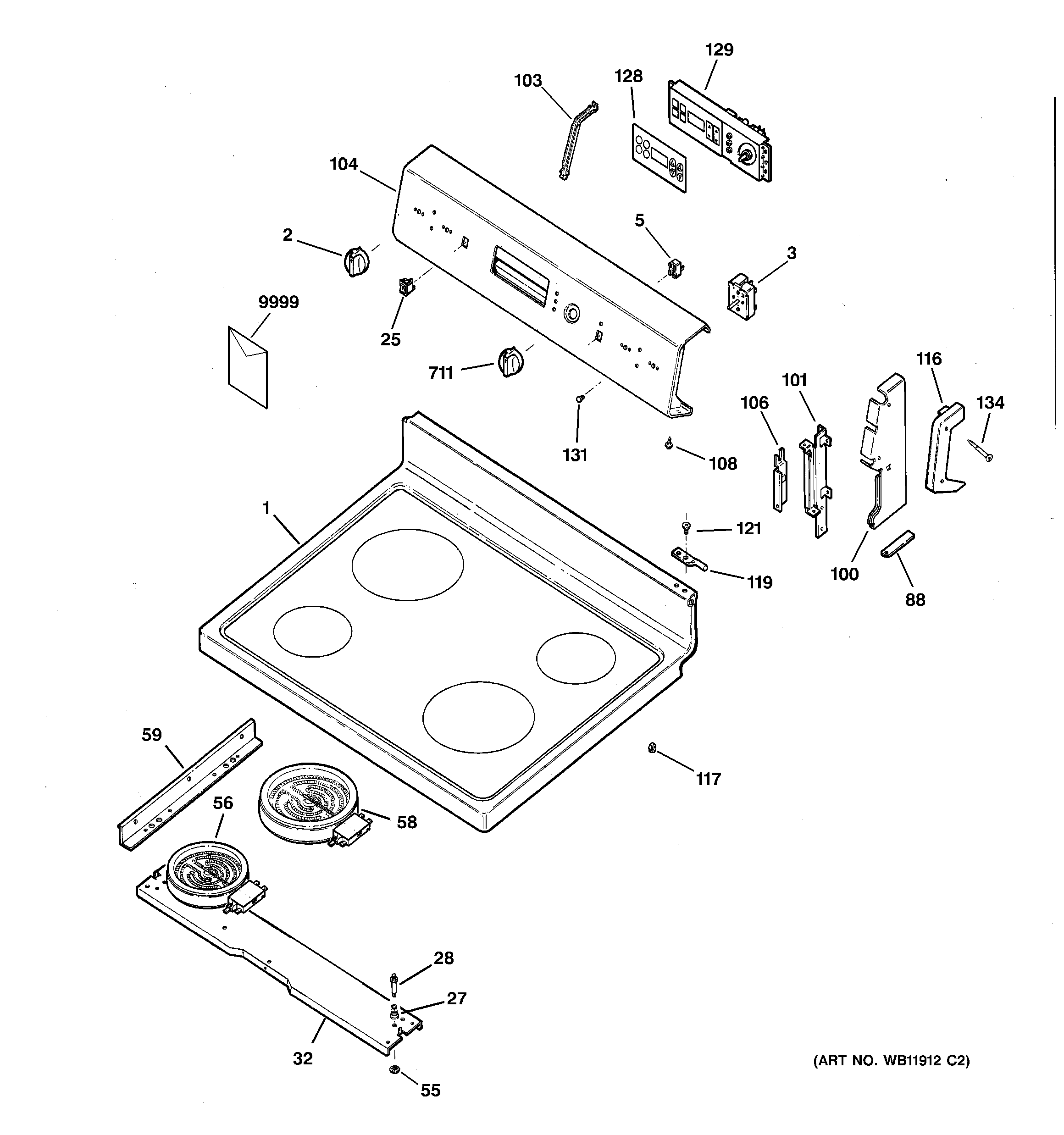

JBP61BD2WH CONTROLS & COOKTOP

Products

PositionProduct
1GEN WB57K10054
2WB03T10072 GE Oven Burner Knob
3WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
3WB24T10029 GE Oven Infinite Burner Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
25GEN WB24K10011
27GEN WB09X5119
28GEN WB02X8377
32WB02K10045 GE Bottom Heater Support
55GEN WB02X8323
56WB30X44826 GE 6 Inch Heating Element Kit
58WB30T10045 GE Oven Range Cooktop 8" Halogen Burner Assembly
59WB02K10046 GE Oven Side Heater Brace
88GEN WB02K0085
100GEN WB07K10002
100GEN WB07K10001
101GEN WB37K0018
101GEN WB37K0017
103GEN WB02K10027
104GEN WB36K10249
106GEN WB10K10001
106GEN WB10K10002
108GEN WB01X5716
108WB1X5364 GE Oven Mounting Screw
116WB07K10003 GE Oven Right Black Endcap
116GEN WB07K10004
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
128GEN WB27K10042
129WB27K10026 GE Oven Thermostat Control
131WB25T10041 GE Oven Lens
134GEN WB01K10003
711GEN WB03K10114
9999PM10X310 GE Cerama Bryte Cooktop Cleaner
9999GEN 31-21001
9999GEN 49-88003
9999GEN 49-88005
