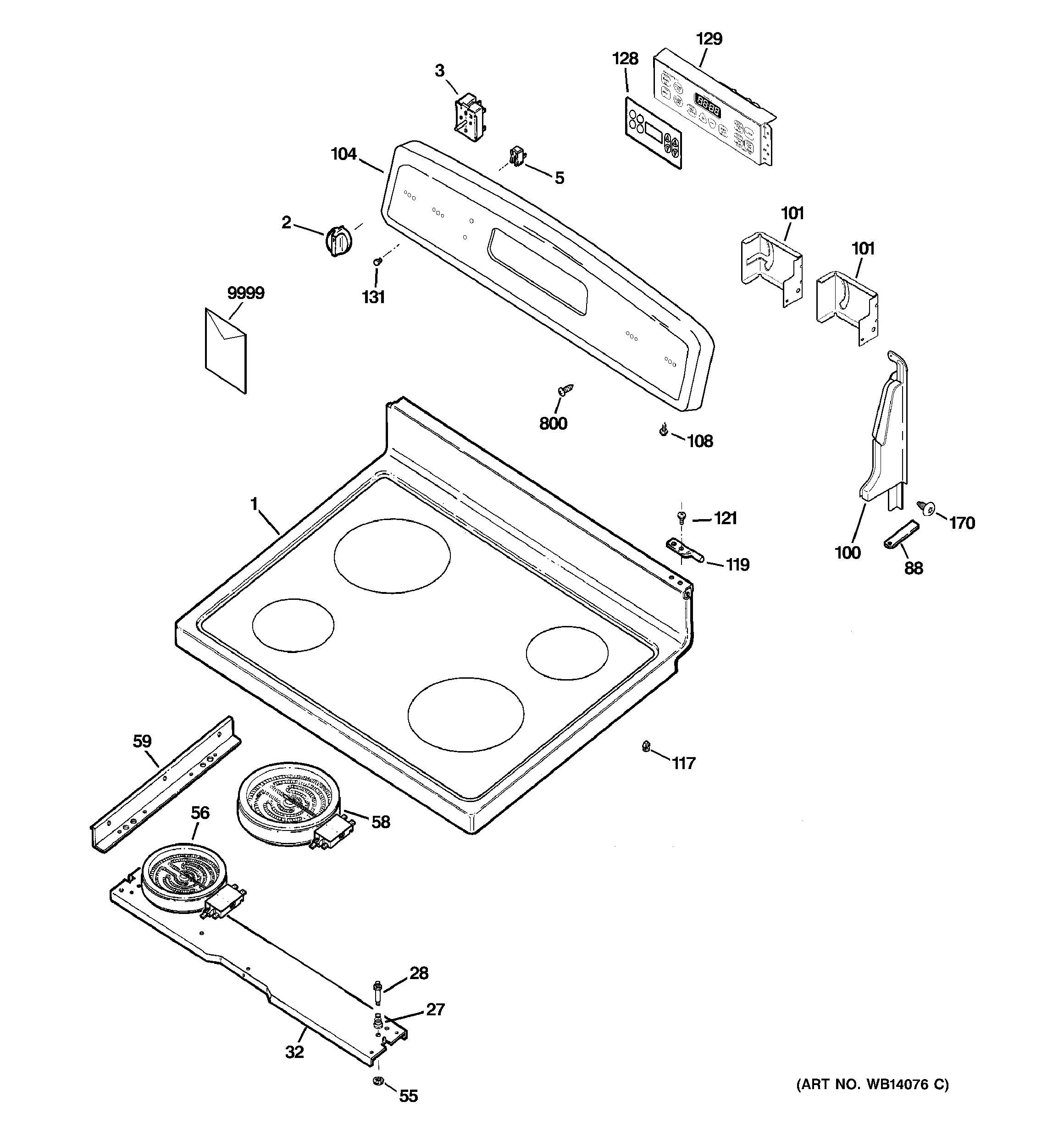

JBP61DM1WW CONTROL PANEL & COOKTOP

JBP61DM1WW CONTROL PANEL & COOKTOP

Written by

in

JBP61DM1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB57K10097
2WB03T10282 GE Oven Infinite Knob (White)
3WB24T10029 GE Oven Infinite Burner Switch
3WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
27GEN WB09X5119
28GEN WB02X8377
32WB02K10045 GE Bottom Heater Support
55GEN WB02X8323
56WB30X38928 GE Surface 6" Radiant Element
58WB30T10045 GE Oven Range Cooktop 8" Halogen Burner Assembly
59WB02K10046 GE Oven Side Heater Brace
88GEN WB02K10098
88GEN WB02K0062
100GEN WB07K10266
100GEN WB07K10265
101WB37K10016 GE Cooktop Left Bracket
101WB37K10015 GE Right Cooktop Bracket
104GEN WB36K10691
108WZ4X345D GE Screw Package 12 C92
117WB02K10075 GE Oven Plastic Nail
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
128WB27K10413 GE Oven Overlay T09-A
129WB27K10357 GE Oven Gas Control TO9
131WB25T10041 GE Oven Lens
170GEN WB01X5874
800WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
9999GEN 31-21363
9999PM10X310 GE Cerama Bryte Cooktop Cleaner
9999GEN 49-88029
