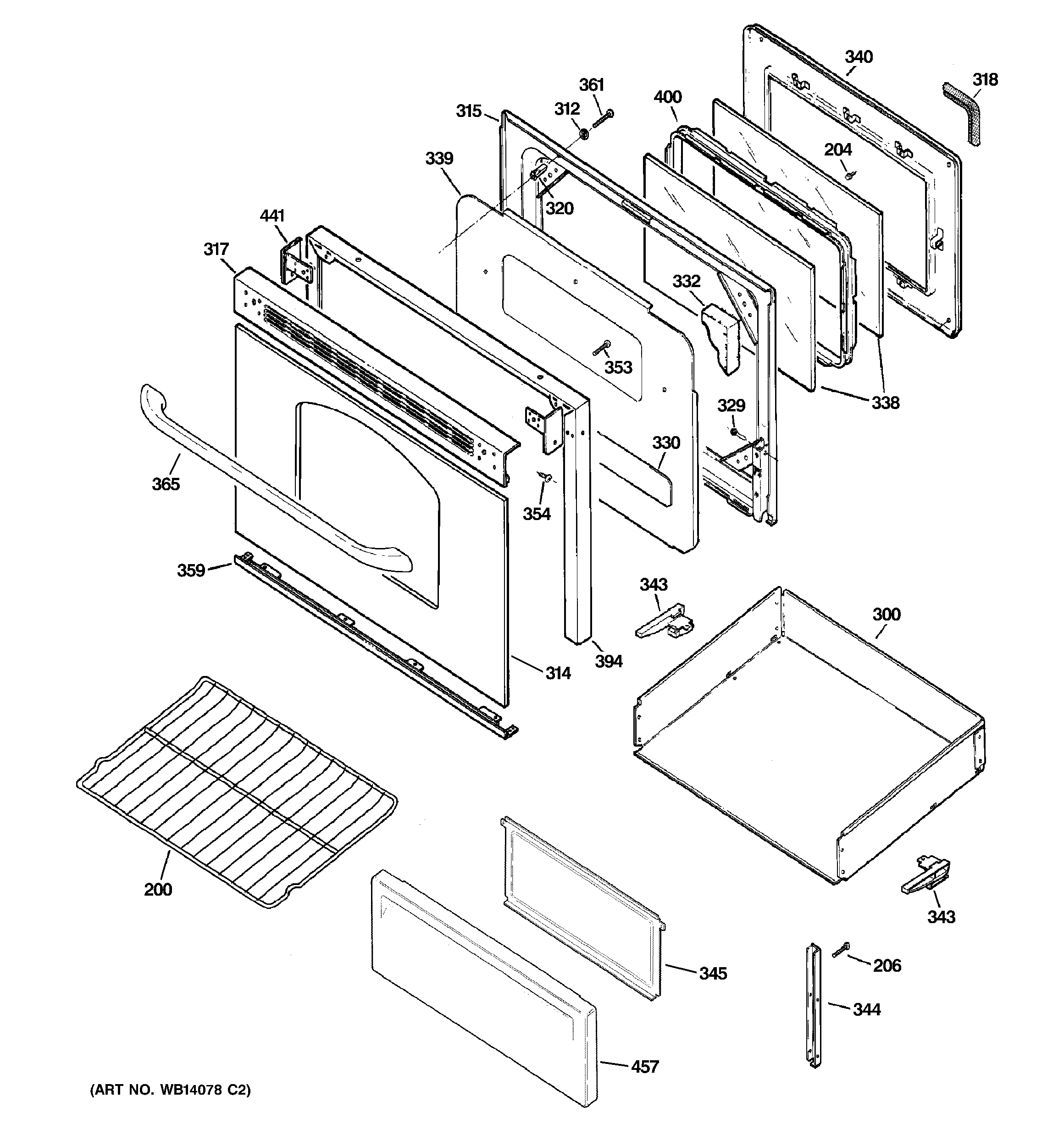

JBP61DM1WW DOOR & DRAWER PARTS

JBP61DM1WW DOOR & DRAWER PARTS

Written by

in

JBP61DM1WW DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
204WB1K5062 GE Oven Screw
204WB1X536 GE Oven Screw
206WR01X10065 GE Screw
300GEN WB58K10004
312WB1X119D GE Oven Range Washer
314GEN WB57K10120
315GEN WB55K10042
317GEN WB07K0400
318WB35X29668 GE Oven Door Gasket Assembly
318WB35X29722 GE Oven Door Gasket Assembly
320WB02K10161 GE Oven Spacer
320WB02K10156 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330WB35K10041 GE Oven Reflector
330GEN WB35K0022
332GEN WB35K0020
338WB56K5 GE Oven Crystal Wind
338GEN WB56K0019
339GUARD INSULATION
340GEN WB55K0020
343WB02K10061 GE Oven Drawer Glide
343WB02K10062 GE Oven Drawer Glide
344GEN WB02K10025
345WB34K10034 GE Oven Drawer Cover
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K66 GE Screw
359TRIM BOTTOM ASM
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
365WB15T10176 GE Oven Handle (White)
394GEN WB07K0268
400GEN WB34K10088
441WB7X7188 GE Oven Left Endcap
441GEN WB07X7187
457WB56X31459 GE Oven Drawer Front
