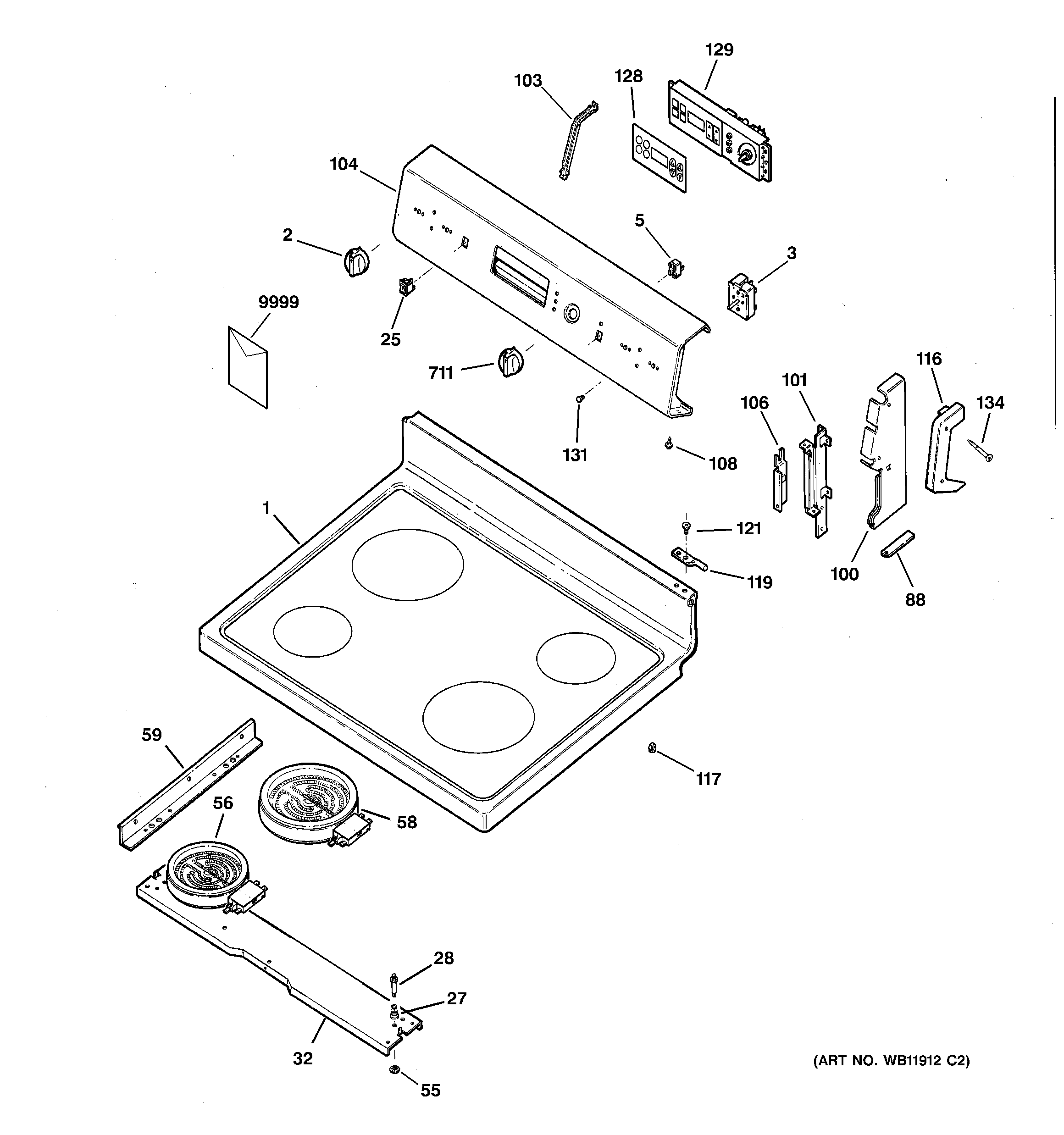

JBP62CD3CC CONTROL PANEL & COOKTOP

JBP62CD3CC CONTROL PANEL & COOKTOP

Written by

in

JBP62CD3CC CONTROL PANEL & COOKTOP

Products

PositionProduct
1COOKTOP & GLASS ASM
2INF KNOB (GE) BSQT
3WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
3WB24T10029 GE Oven Infinite Burner Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
25WB24K10005 GE Oven Switch Rocker
27GEN WB09X5119
28GEN WB02X8377
32WB02K10045 GE Bottom Heater Support
55GEN WB02X8323
56WB30X44826 GE 6 Inch Heating Element Kit
58WB30T10045 GE Oven Range Cooktop 8" Halogen Burner Assembly
59WB02K10046 GE Oven Side Heater Brace
88GEN WB02K0062
100GEN WB07K10115
100GEN WB07K10116
101GEN WB37K0017
101GEN WB37K0018
103GEN WB02K10027
104GEN WB36K10260
106GEN WB10K10001
106GEN WB10K10002
108WB1X5364 GE Oven Mounting Screw
116GEN WB07K10118
116GEN WB07K10117
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
128GEN WB27K10067
129WB27K10026 GE Oven Thermostat Control
131WB25T10041 GE Oven Lens
134GEN WB01K10017
711GEN WB03K10117
9999GEN 49-88005
9999GEN 31-21051
9999PM10X310 GE Cerama Bryte Cooktop Cleaner
9999GEN 49-88006
