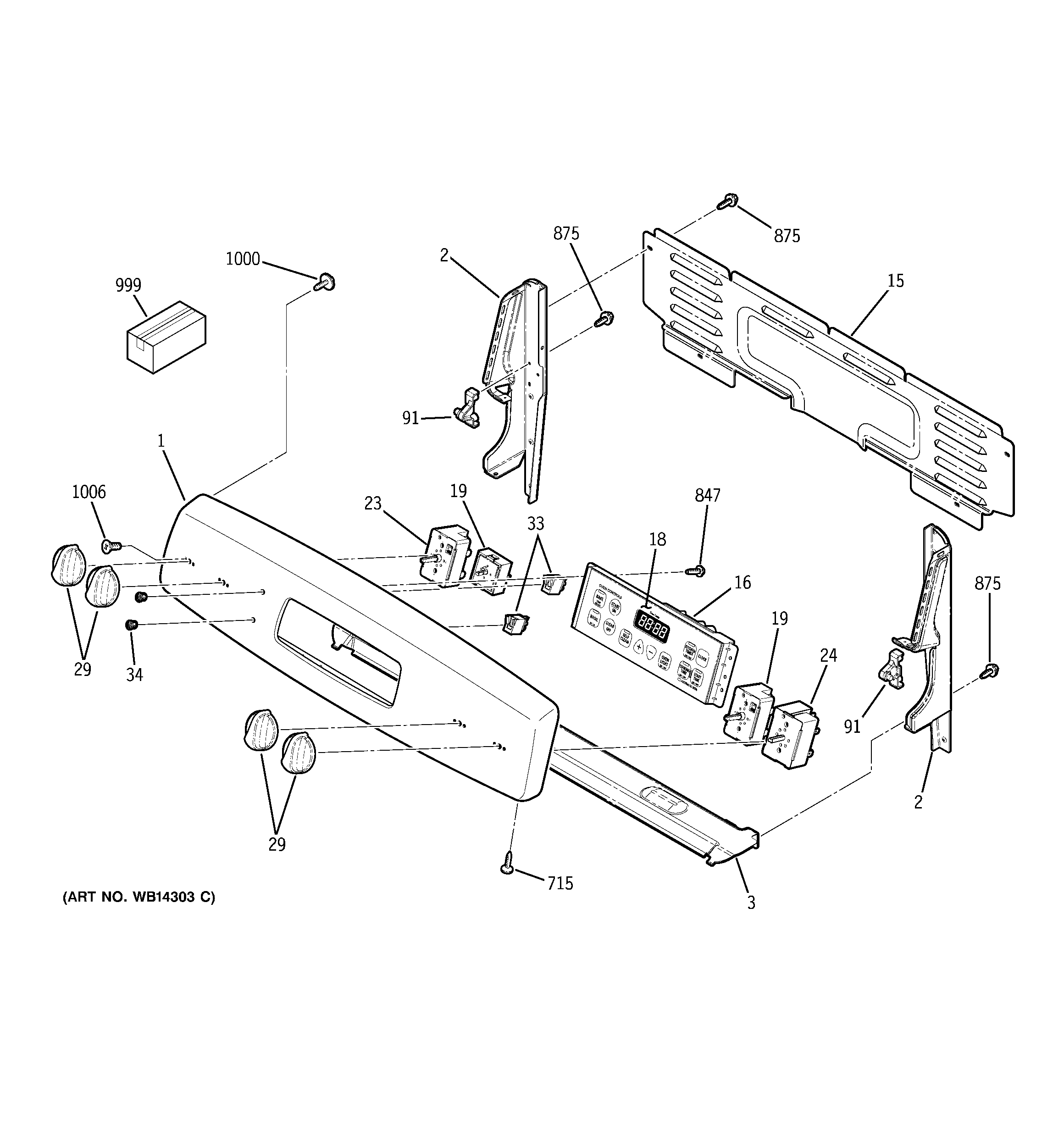

JBP68DM2BB CONTROL PANEL

JBP68DM2BB CONTROL PANEL

Written by

in

JBP68DM2BB CONTROL PANEL

Products

PositionProduct
1GEN WB36T11074
1GEN WB36T11073
1GEN WB36T11072
2WB36T11039 GE Oven End Plate Right (Black)
2GEN WB36T11042
2GEN WB36T11050
2GEN WB36T11043
2GEN WB36T11051
2GEN WB36T11040
3SHIELD HEAT BKGD
15GEN WB02T10460
16CONTROL OVEN TO9 (ELEC)
18WB27T11005 GE Oven Faceplate Graphics Black
18WB27T11006 GE Oven Overlay
18GEN WB27T11012
19WB24T10145 GE Oven Burner Switch
23WB24T10153 GE Oven Infinite Switch Control
24INFINITE CONTROL SWITCH
29KNOB INFINITE (BK)
29WB03T10285 GE Oven Infinite Control Knob
29WB03T10282 GE Oven Infinite Knob (White)
33WB27T10626 GE Oven Indicator Light Pilot
34WB25T10041 GE Oven Lens
91WB10T10116 GE Range Top Hinge Pin
715WD2X432 GE Dishwasher Screw
715WD2X433 GE Dishwasher Trim Screw
715WD2X434 GE Dishwasher Trim Screw
847WB1X537 GE Oven Screw
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
999GEN 31-10620
999GEN 31-10574
999GEN 49-80530
999INSTR INSTALL OVN DOOR
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999GEN 31-14602
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
