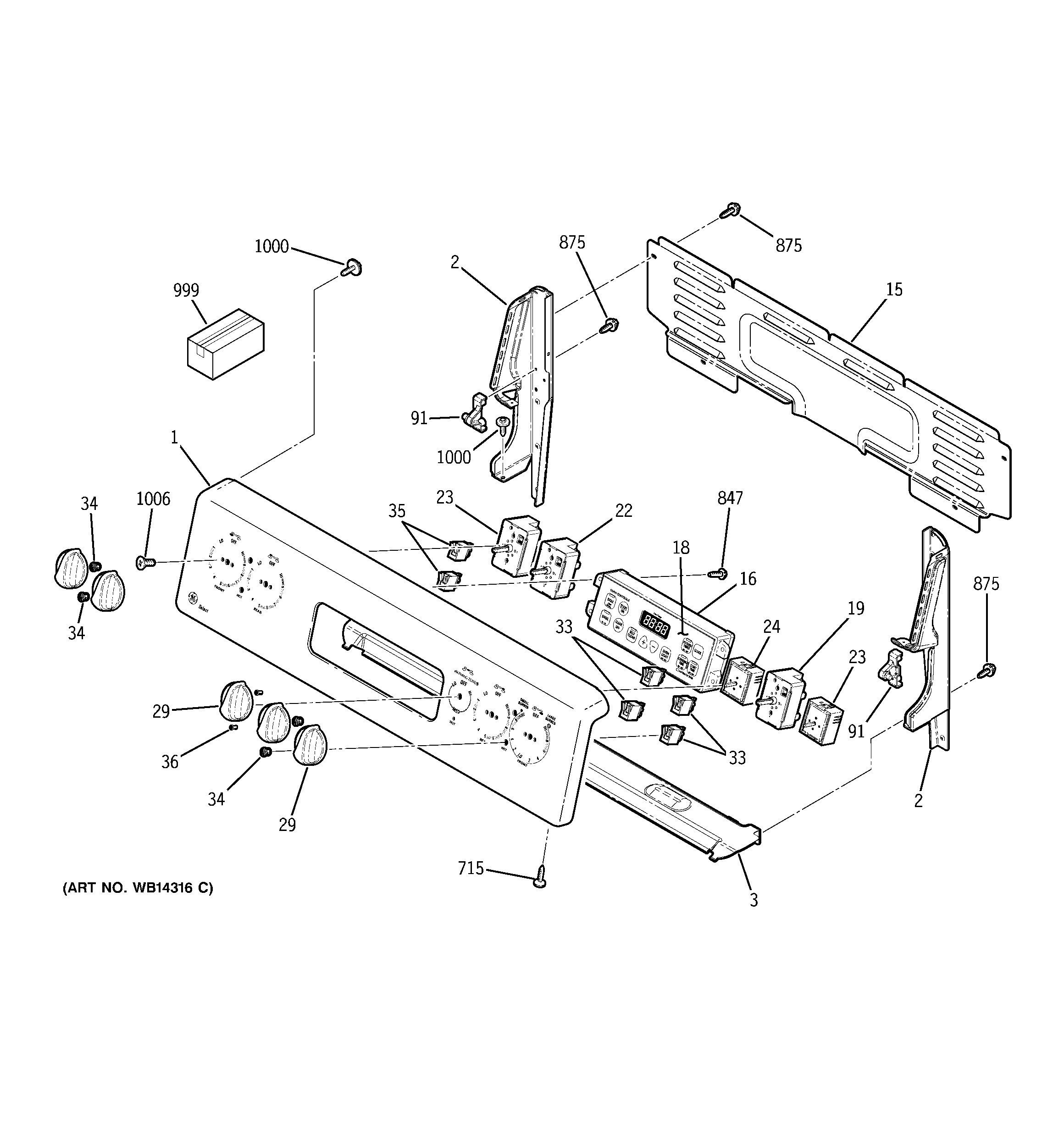

JBP71CM1BB CONTROL PANEL

Products

Position	Product
1	GEN WB36T11077
2	GEN WB36T11040
2	WB36T11039 GE Oven End Plate Right (Black)
3	SHIELD HEAT BKGD
15	GEN WB02T10392
16	CONTROL OVEN TO9 (ELEC)
18	WB27T11005 GE Oven Faceplate Graphics Black
19	WB24T10011 GE Oven Infinite Switch
22	WB24T10145 GE Oven Burner Switch
23	WB24T10153 GE Oven Infinite Switch Control
24	INFINITE CONTROL SWITCH
29	KNOB INFINITE (BK)
33	WB27T10626 GE Oven Indicator Light Pilot
34	WB25T10041 GE Oven Lens
35	WB25K10010 GE Oven Light Indicator Pilot
36	LENS
91	WB10T10116 GE Range Top Hinge Pin
715	WD2X432 GE Dishwasher Screw
847	WB1X537 GE Oven Screw
875	WZ4X245D GE Screw Package
875	WH2X930 GE Screw
999	GEN 49-80463
999	PM10X310 GE Cerama Bryte Cooktop Cleaner
999	GEN 31-14546
999	GEN 31-10620
999	GEN 31-10574
999	INSTR INSTALL OVN DOOR
1000	WB01T10016 GE Oven Screw 8-18 AB Hex
1006	WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
