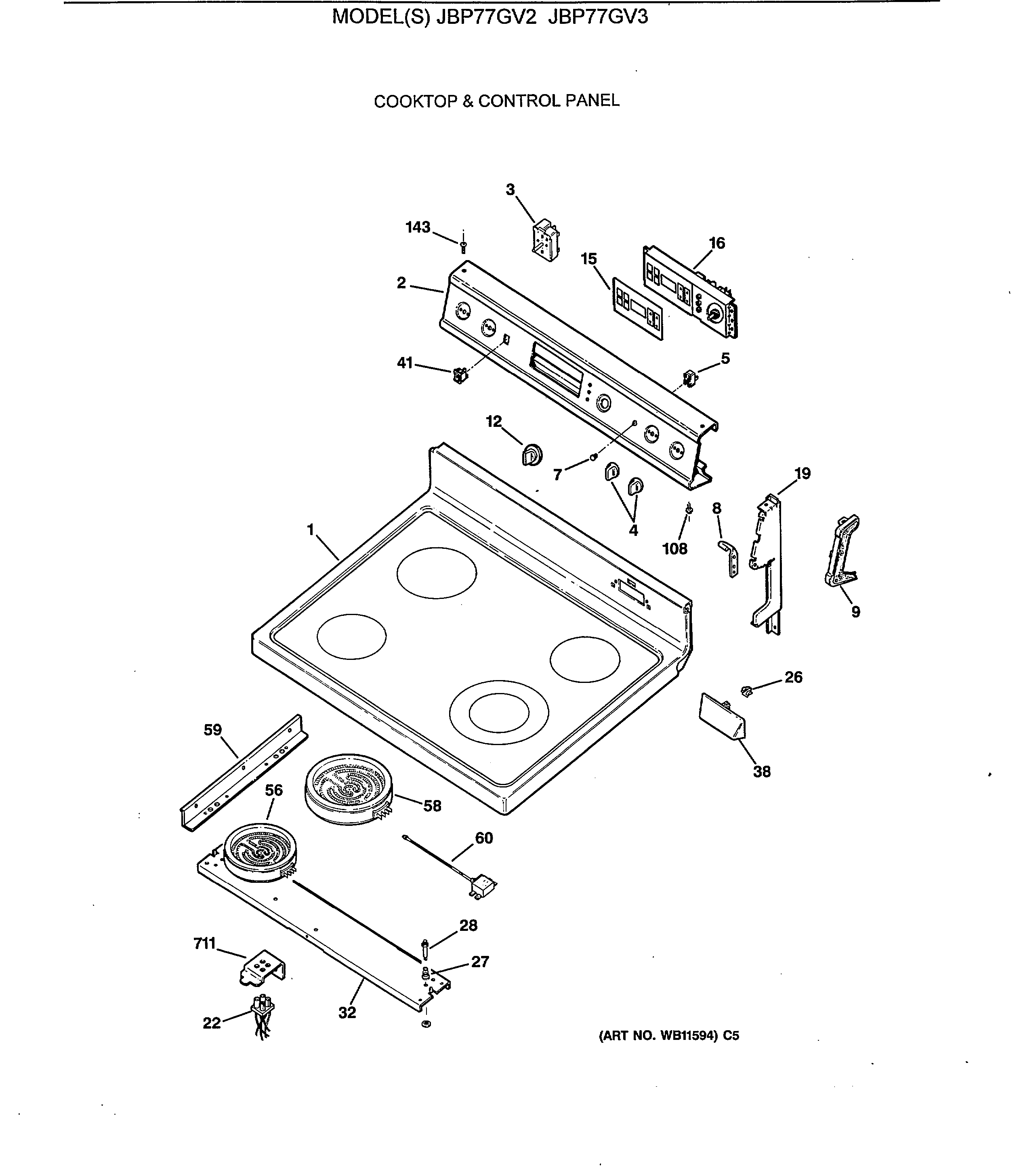

JBP77GV3 COOKTOP & CONTROL PANEL

Products

Position	Product
1	GEN WB62X5470
2	TRIM & BRACKET ASM
3	WB21X36771 GE Surface Element Switch
4	KNOB – ALMOND
5	GEN WB02X7697
7	JEWEL
8	GEN WB02X8126
8	GEN WB02X8127
9	GEN WB07X7227
9	GEN WB07X7228
12	KNOB
15	GEN WB27X5566
16	GEN WB09X5121
16	GEN WB27X5581
16	GEN WB02X8268
16	GEN WB02X8350
19	GEN WB07X7270
19	GEN WB07X7271
22	INDICATOR HOT SURFACE
26	GEN WB02X8312
27	GEN WB09X5119
28	GEN WB02X8377
32	GEN WB02X8556
38	GEN WB07X7218
41	GEN WB24X5318
56	WB30X44826 GE 6 Inch Heating Element Kit
58	WB30T10045 GE Oven Range Cooktop 8" Halogen Burner Assembly
59	GEN WB02X8321
108	WB1X5904 GE Oven Screw 8-18 BA
143	SCREW (AD)
680	WR1X1850 GE Refrigerator Screw
684	SCREW
711	GEN WB02X8555
752	WB1K5200 GE Oven Screw 340531
758	GEN WB01K5050
875	WH2X930 GE Screw
999	WX10X302 GE Scraper
1458	TERMINAL BLK ASM (1 PIN)
32767	WB02T10415 GE Oven Anti-Tip Bracket Assembly
32767	GEN 31-0824
32767	GEN 31-20240
32767	GEN 49-8723
32767	WB17X171 GE Oven Terminal
