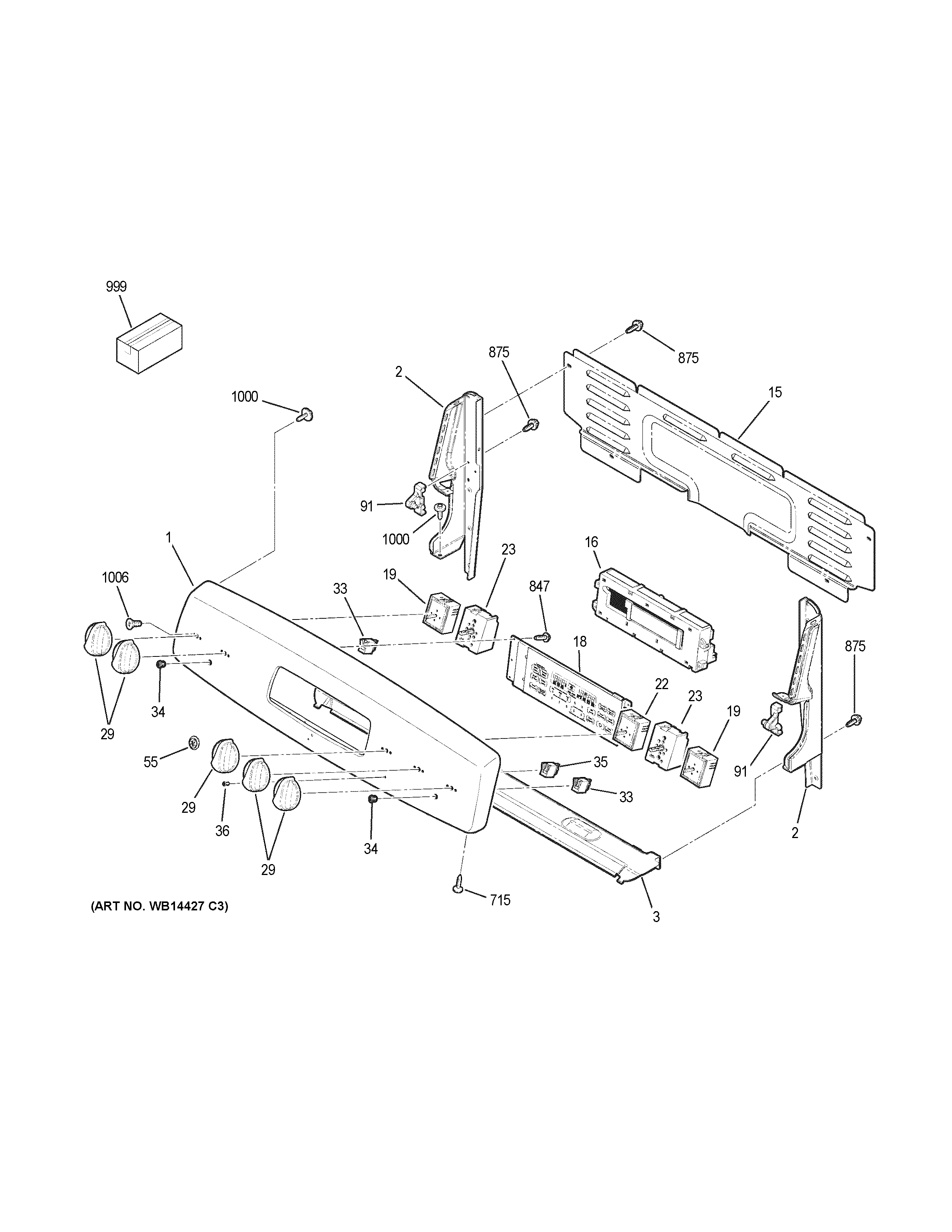

JBP77SM1SS CONTROL PANEL

JBP77SM1SS CONTROL PANEL

Written by

in

JBP77SM1SS CONTROL PANEL

Products

PositionProduct
1TRIM & BRACKET ASM
2GEN WB36T11040
2WB36T11039 GE Oven End Plate Right (Black)
3SHIELD HEAT BKGD
15GEN WB02T10392
16GEN WB27T10810
18GEN WB27T11018
19WB24T10153 GE Oven Infinite Switch Control
22INFINITE CONTROL SWITCH
23WB24T10145 GE Oven Burner Switch
29WB03T10284 GE Range Infinite Burner Knob Cooktop Element
33WB27T10626 GE Oven Indicator Light Pilot
34WB25T10041 GE Oven Lens
35WB25K10010 GE Oven Light Indicator Pilot
36LENS
55WB02T10359 GE Oven Badge
91WB10T10116 GE Range Top Hinge Pin
715WD2X432 GE Dishwasher Screw
847WB1K5167 GE Screw 8-18 X 3/8"
875WH2X930 GE Screw
999MANUAL USE & CARE
999INSTRUCTION INSTALL
999INSTRUCTION INSTALL
999INSTRUCTIONS INSTALL
999MANUAL MINI & WD ASM
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
