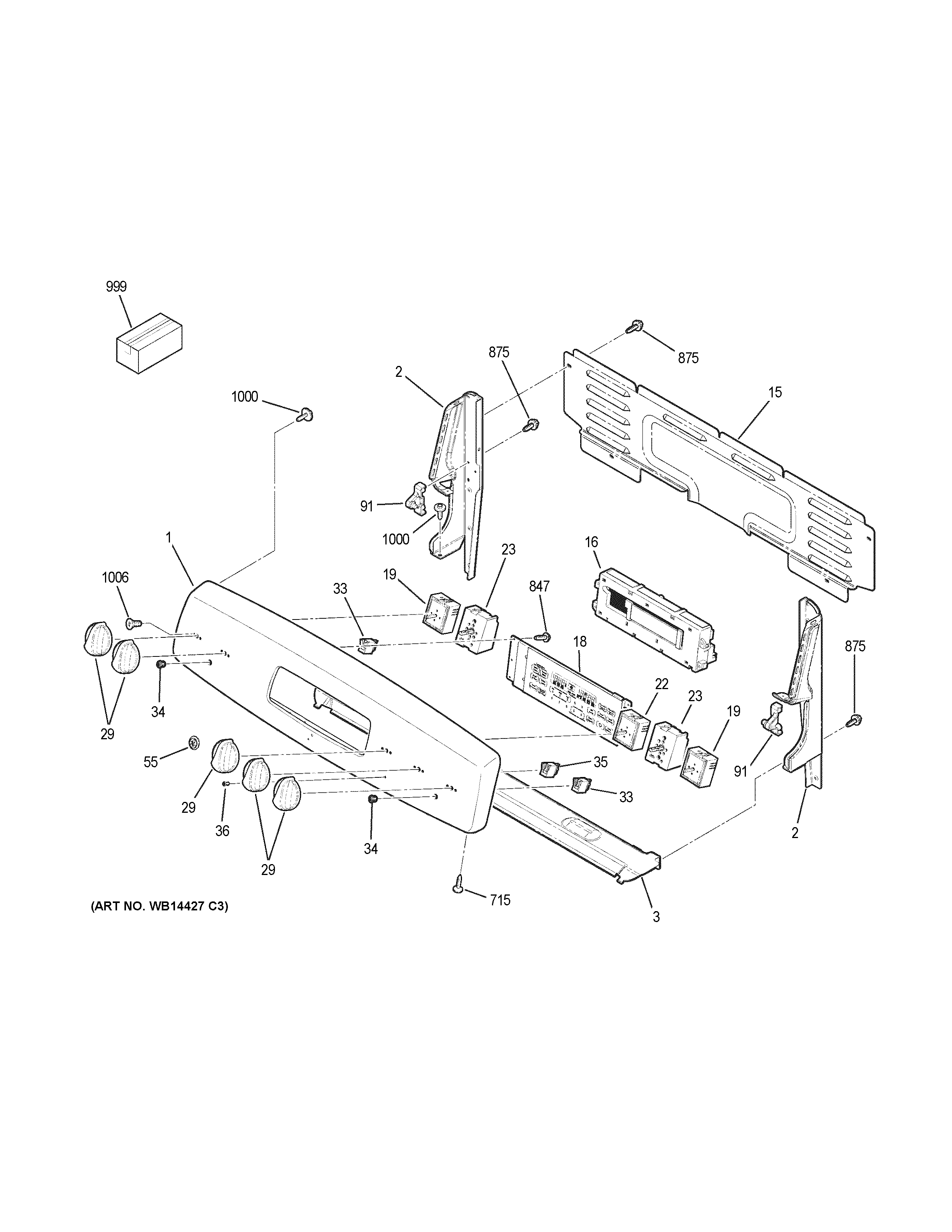

JBP77SM3SS CONTROL PANEL

Products

Position	Product
1	GEN WB36T11241
2	GEN WB36T11040
2	WB36T11039 GE Oven End Plate Right (Black)
3	SHIELD HEAT BKGD
15	GEN WB02T10499
16	GEN WB27T10810
18	GEN WB27T11018
19	INFINITE CONTROL SWITCH
22	WB24T10153 GE Oven Infinite Switch Control
23	WB24T10145 GE Oven Burner Switch
29	WB03T10284 GE Range Infinite Burner Knob Cooktop Element
33	WB27T10626 GE Oven Indicator Light Pilot
34	WB25T10041 GE Oven Lens
35	WB25K10010 GE Oven Light Indicator Pilot
36	LENS
55	WB02T10359 GE Oven Badge
91	GEN WB10T10125
715	WD2X432 GE Dishwasher Screw
847	WB1K5167 GE Screw 8-18 X 3/8"
875	WH2X930 GE Screw
999	INSTRUCTION INSTALL
999	MANUAL MINI & WD ASM
999	MANUAL USE & CARE
999	INSTRUCTION INSTALL
1000	WB01T10016 GE Oven Screw 8-18 AB Hex
1006	WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
