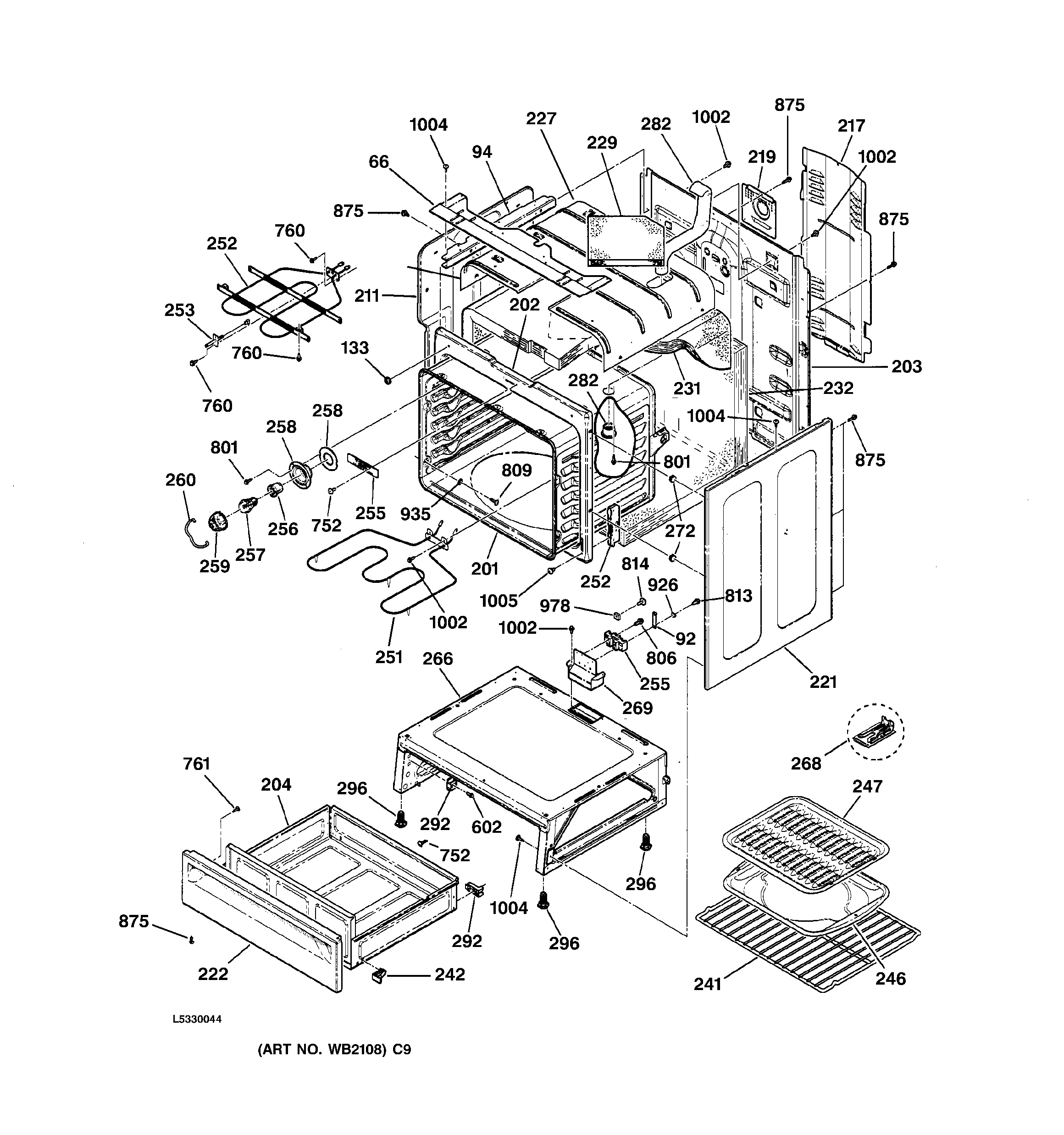

JBP78AB4AA BODY & DRAWER PARTS

Products

PositionProduct
66ENCLOSURE RANGETOP
92GEN WB02T10067
94GEN WB02T10038
133WB01T10022 GE Oven Door Bumper
133WB02X29562 GE Range Top Bumper
133GEN WB01T10023
133WB01T10026 GE Oven Door Pad
201WB63X20942 GE Oven Body Weld Assembly
202GEN WB63T10045
203GEN WB63T10047
204WB55T10178 GE Oven Mechanical Drawer Body Assembly
211GEN WB02T10028
217WB34T10128 GE Oven Back Cover
219COVER RECEPTACLE
221GEN WB63T10050
222GEN WB56T10015
227GEN WB02T10029
229WB35T10017 GE Oven Vent Tube Insulation
231GEN WB35T10012
232WB35T10113 GE Oven Insulation Assembly
241WB48T10011 GE Oven Shelf Rack
242WB48T10068 GE Oven Wedge Drawer
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44T10011 GE Oven Bake Element
252GEN WB10T10005
252WB44T10009 GE Oven Broil Element
253SENSOR ASM
255GEN WB17T10003
256WB08T10026 GE Range Push-In Receptacle
257RANGE ONLY 40W 120V APPL BULB
258WB02T10037 GE Oven Light Cup
258WB02T10027 GE Oven Gasket
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
266BASE RIVET ASSY
268WB02T10415 GE Oven Anti-Tip Bracket Assembly
269TERMINAL BOX
272WB02T10034 GE Oven Body Side Support
282WB38X33648 GE Vent Tube
282GEN WB38T10013
292GEN WB02T10031
292WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
602GEN WH02X0941
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1K5062 GE Oven Screw
801WB1M1 GE Oven Screw
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
814GEN WB01X5967
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
926GROUND WASHER
935WB1K5174 GE Oven Washer
978GEN WB01X5968
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004WB01T10037 GE Screw 8-18 7/16"
1004GEN WB01T10019
1005WB01T10008 GE Oven Screw 10-32
