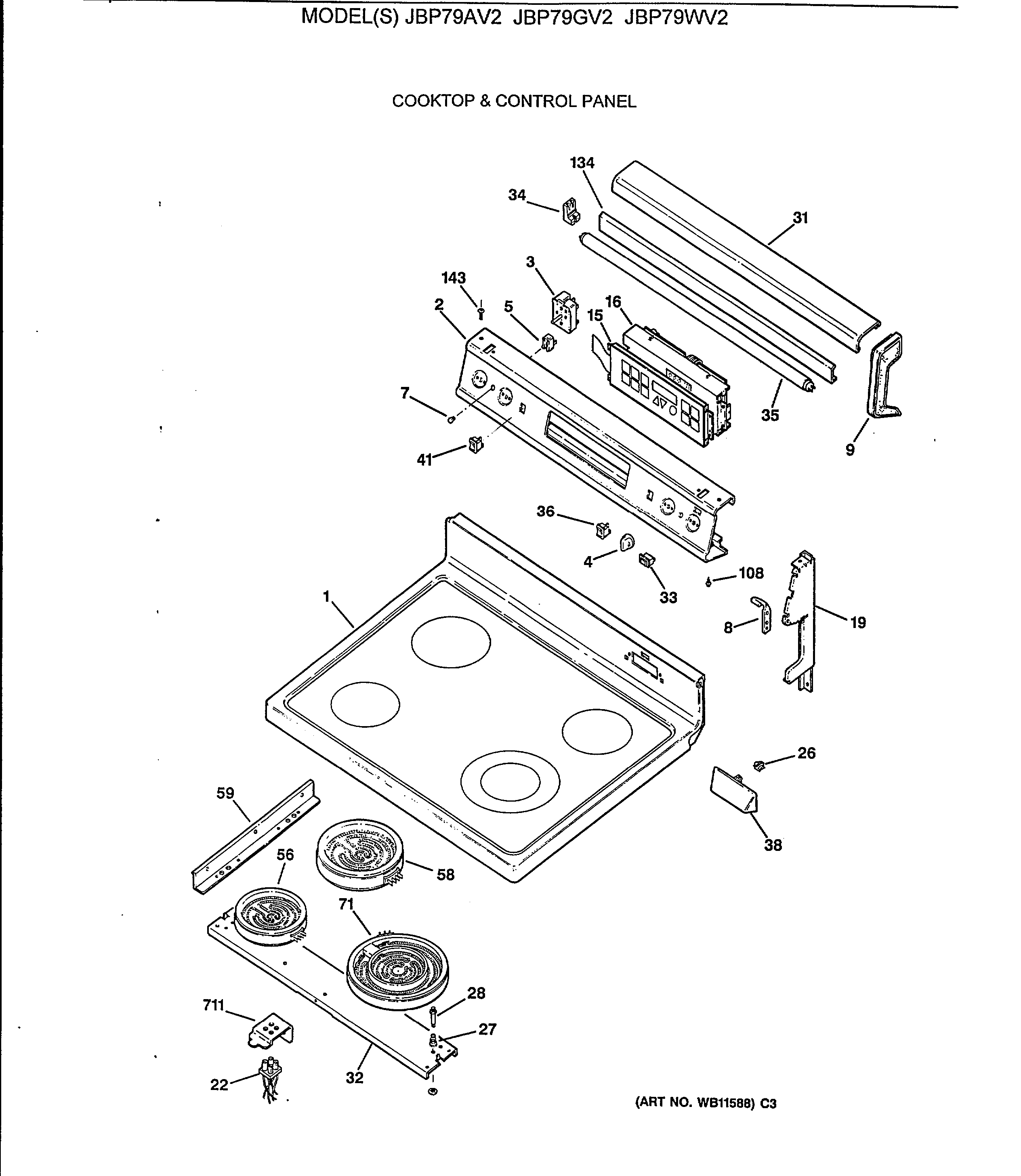

JBP79WV2 COOKTOP & CONTROL PANEL

Written by

Products

Position	Product
1	GEN WB62X5467
2	GEN WB36X5781
3	WB21X36771 GE Surface Element Switch
4	KNOB (WHITE/RED STRIPE)
5	GEN WB02X7697
7	JEWEL
8	GEN WB02X8126
8	GEN WB02X8127
9	GEN WB07X7199
9	GEN WB07X7200
15	GEN WB27X5574
16	GEN WB27X5572
19	PLATE END LH WH
19	PLATE END RH WH
22	INDICATOR HOT SURFACE
26	GEN WB02X8312
27	GEN WB09X5119
28	GEN WB02X8377
31	GEN WB07X7134
32	GEN WB02X8556
33	WB24T10167 GE Oven Rocker Switch Element (White)
34	"F" LAMP SOCKET RH LH
35	FLUORESCENT LAMP
36	GEN WB24X5263
38	GEN WB07X7219
41	SWITCH ROCKER WH
56	WB30X44826 GE 6 Inch Heating Element Kit
57	WB30T10045 GE Oven Range Cooktop 8" Halogen Burner Assembly
58	WB30T10099 GE Oven Radiant Surface Element
59	GEN WB02X8321
108	WB1X5904 GE Oven Screw 8-18 BA
134	GEN WB07K0040
143	GEN WB01X5874
347	GEN WB49X5527
370	WR01X10618 GE Refrigerator Screw 8-18 TPT 1/4
682	WB1K5186 GE Oven Screw 6-32 X 3/5" 1/4" Hex D
684	SCREW
711	GEN WB02X8555
741	SCREW – MT. TRIM
752	GEN WB00X6542
758	GEN WB01K5050
875	WH2X930 GE Screw
999	WX10X302 GE Scraper
1458	TERMINAL BLK ASM (1 PIN)
32767	WB17X171 GE Oven Terminal
32767	GEN 31-0824
32767	GEN 340732
32767	WB02T10415 GE Oven Anti-Tip Bracket Assembly
32767	GEN 31-20219
32767	GEN 49-8687
