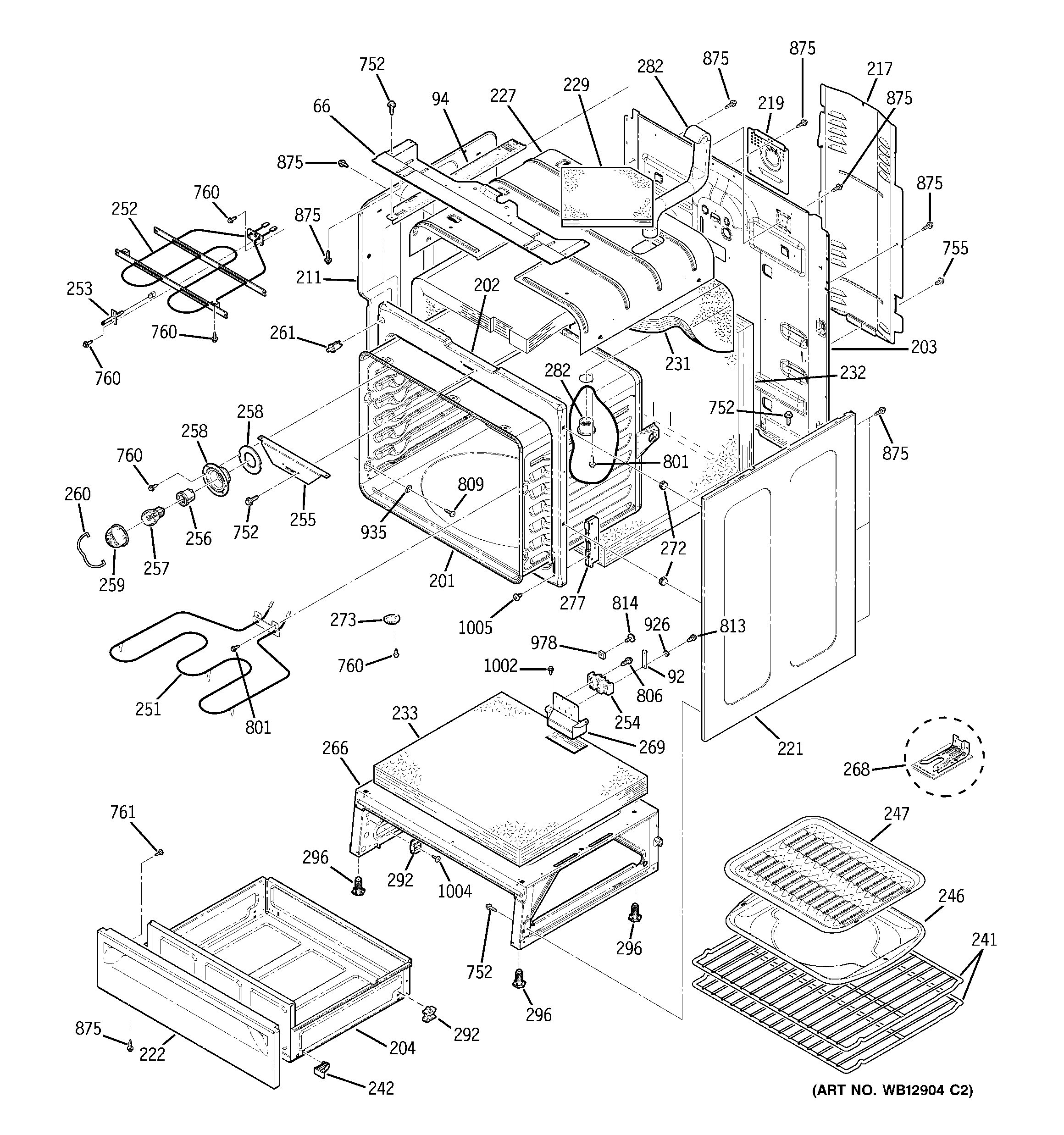

JBP84BH1BB BODY PARTS

JBP84BH1BB BODY PARTS

Written by

in

JBP84BH1BB BODY PARTS

Products

PositionProduct
66ENCLOSURE RANGETOP
92GEN WB02T10067
94WB02T10463 GE Oven Radiant Chassis Brace
94WB34X26004 GE Range Radiant LT Chassis BR
201GEN WB63T10098
202GEN WB63T10096
203GEN WB63T10047
204WB55T10178 GE Oven Mechanical Drawer Body Assembly
211GEN WB02T10028
217WB34T10128 GE Oven Back Cover
219COVER RECEPTACLE
221WB56X28881 GE Oven Side Panel Black
222PANEL DRAWER BLACK
227GEN WB02T10196
229GEN WB35T10087
229WB35T10017 GE Oven Vent Tube Insulation
231GEN WB35T10012
232GEN WB35T10023
233GEN WB35T10022
241GEN WB48T10019
241GEN WB48T10015
242WB48T10068 GE Oven Wedge Drawer
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44T10011 GE Oven Bake Element
252WB44T10012 GE Oven Broil Element
253WB21X22134 GE Oven Sensor Assembly
254WB17T10011 GE Oven Terminal Block
255GEN WB07T10109
256WB08T10026 GE Range Push-In Receptacle
257RANGE ONLY 40W 120V APPL BULB
258WB02T10027 GE Oven Gasket
258WB02T10037 GE Oven Light Cup
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261WB24T10147 GE Oven SPDT Light Switch
266BASE RIVET ASSY
268WB02T10415 GE Oven Anti-Tip Bracket Assembly
269TERMINAL BOX
272WB02T10034 GE Oven Body Side Support
273GEN WB02K5365
277GEN WB10T10041
282GEN WB38T10022
282WB38X33648 GE Vent Tube
292WB48T10013 GE Oven Drawer Support
292WB02X33180 GE Oven Drawer Glide
296WB02X10521 GE Oven Leveling Leg
752WB1K5200 GE Oven Screw 340531
755WZ4X44D GE Screw Package
760WB1X536 GE Oven Screw
761WB1X5364 GE Oven Mounting Screw
801WB1M1 GE Oven Screw
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
814SCR 10-32 IND HXW .437
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
926GROUND WASHER
935WB1K5174 GE Oven Washer
978GEN WB01X5968
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
