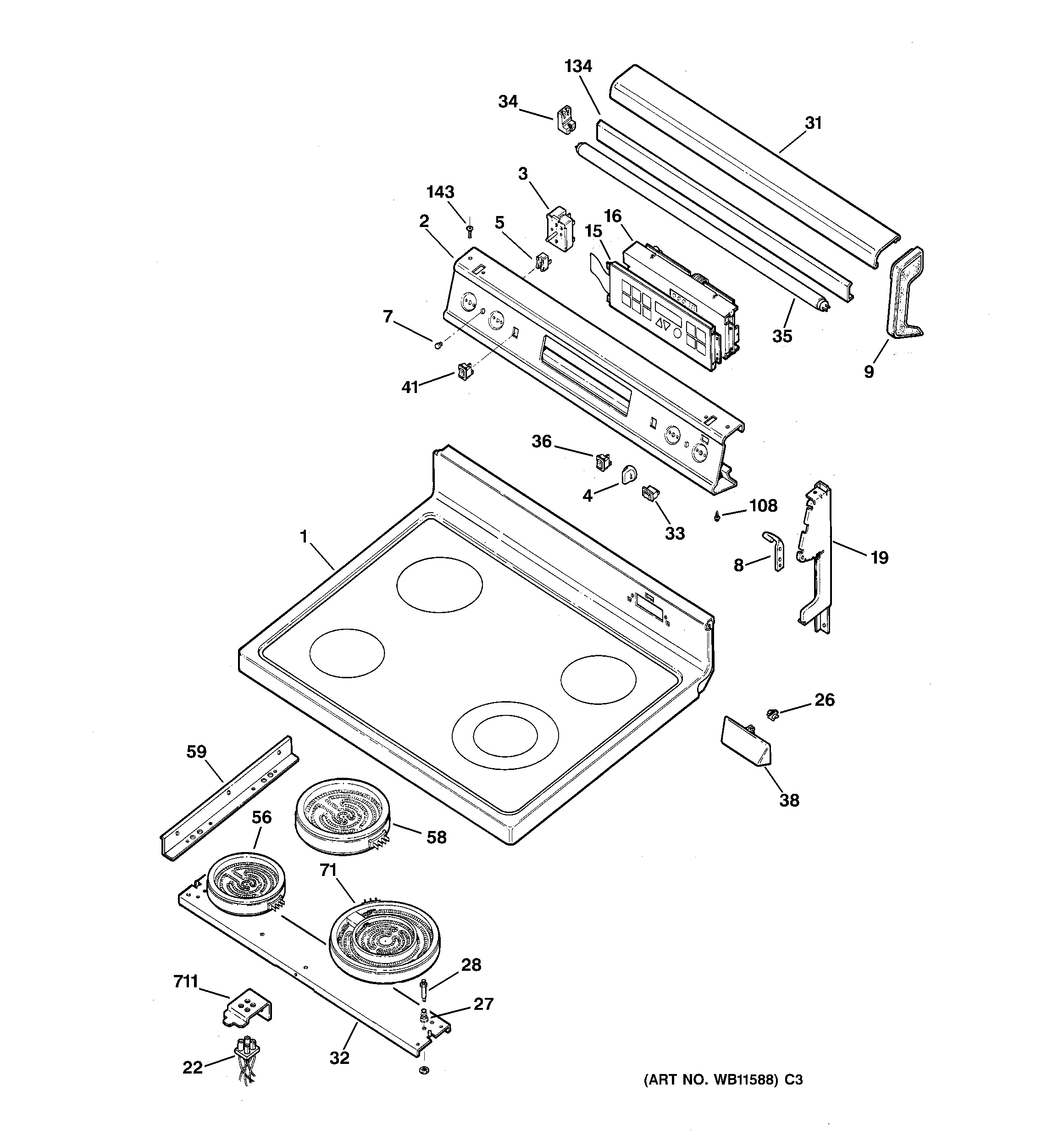

JBP90AW1 COOKTOP & CONTROL PANEL

Products

Position	Product
1	GEN WB62X5465
2	TRIM & BRACKET ASM
3	WB21X36771 GE Surface Element Switch
4	KNOB – ALMOND
5	GEN WB02X7697
7	JEWEL
8	GEN WB02X8126
8	GEN WB02X8127
9	GEN WB07X7233
9	GEN WB07X7234
15	GEN WB27X5558
16	GEN WB27X5583
19	GEN WB07X7270
19	GEN WB07X7271
22	GEN WB08X5115
26	GEN WB02X8312
27	GEN WB09X5119
28	GEN WB02X8377
31	GEN WB07X7236
32	GEN WB02X8556
33	GEN WB24X5319
34	"F" LAMP SOCKET RH LH
35	FLUORESCENT LAMP
36	GEN WB24X5320
38	GEN WB07X7218
41	GEN WB24X5318
56	WB30X44826 GE 6 Inch Heating Element Kit
58	WB30T10045 GE Oven Range Cooktop 8" Halogen Burner Assembly
59	GEN WB02X8321
71	WB30T10099 GE Oven Radiant Surface Element
108	WB1X5904 GE Oven Screw 8-18 BA
134	GEN WB07K0040
143	SCREW (AD)
711	GEN WB02X8555
875	WH2X930 GE Screw
939	GEN WB01K5198
942	WB1X5573 GE Oven Washer
999	SCR 8-18 AB PHR 1/2 S
1458	GEN WB01X5968
1458	TERMINAL BLK ASM (1 PIN)
1458	GEN WB01X5967
32767	GEN 31-20220
32767	WB02T10415 GE Oven Anti-Tip Bracket Assembly
32767	WB17X171 GE Oven Terminal
32767	GEN WB18X5139
32767	GEN 340732
32767	GEN 49-8443
32767	GEN 31-0824
32767	GEN 49-8730
