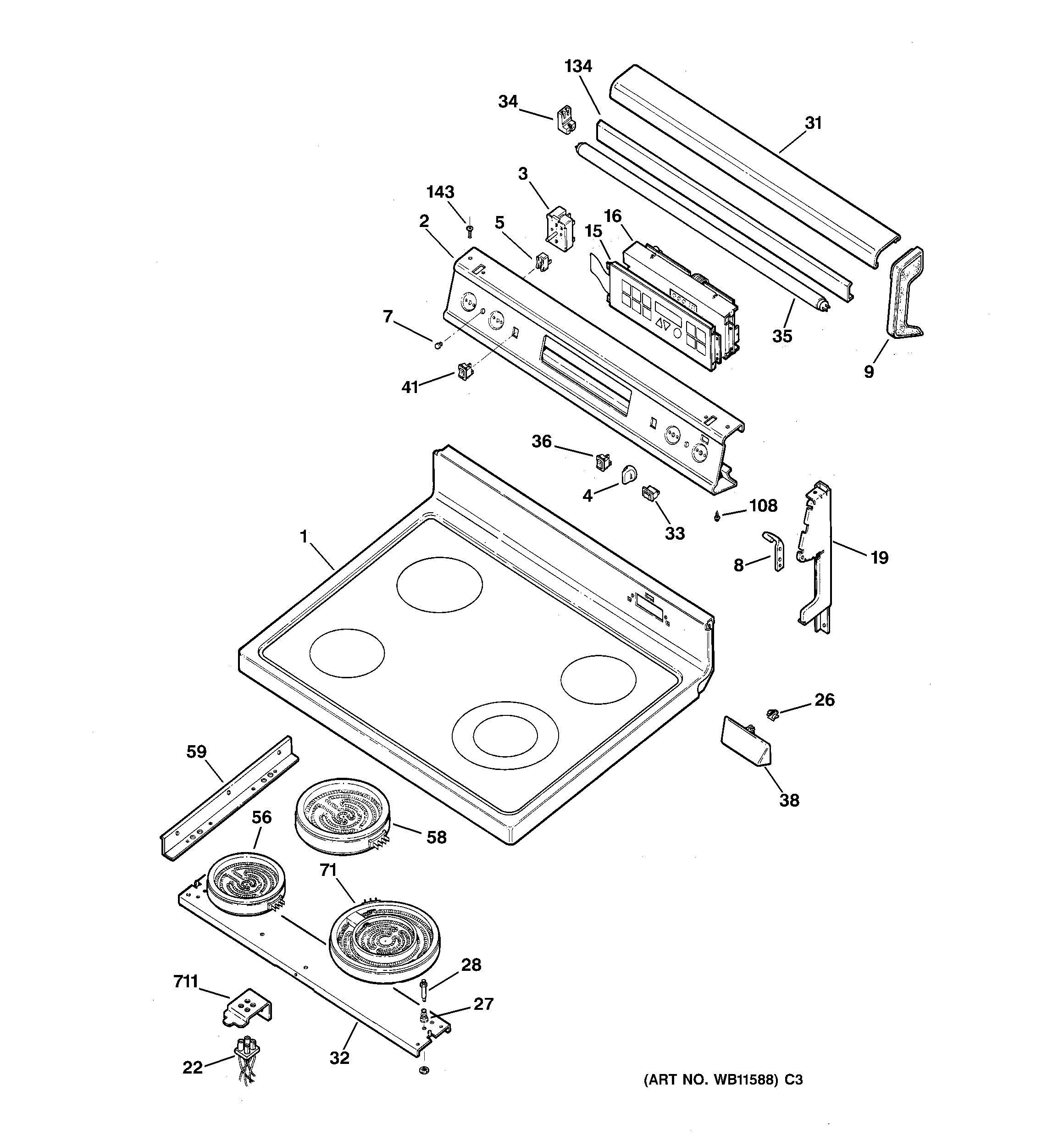

JBP90GV2 COOKTOP & CONTROL PANEL

Products

Position	Product
1	GEN WB62X5466
2	TRIM BRACKET ASM
3	WB21X36771 GE Surface Element Switch
4	GEN WB03X5834
5	GEN WB02X7697
7	JEWEL
8	GEN WB02X8127
8	GEN WB02X8126
9	GEN WB07X7202
9	GEN WB07X7201
15	GEN WB27X5556
16	GEN WB27X5583
19	PLATE END L
19	PLATE END R
22	INDICATOR HOT SURFACE
26	GEN WB02X8312
27	GEN WB09X5119
28	GEN WB02X8377
31	GEN WB07X7127
32	GEN WB02X8556
33	GEN WB24X5314
34	"F" LAMP SOCKET RH LH
35	FLUORESCENT LAMP
36	GEN WB24X5261
38	GEN WB07X7217
41	GEN WB24X5290
56	WB30X44826 GE 6 Inch Heating Element Kit
58	WB30T10045 GE Oven Range Cooktop 8" Halogen Burner Assembly
59	GEN WB02X8321
71	WB30T10099 GE Oven Radiant Surface Element
108	WB1X5904 GE Oven Screw 8-18 BA
134	GEN WB07K0040
143	GEN WB01X5860
370	WR01X10618 GE Refrigerator Screw 8-18 TPT 1/4
682	WB1K5186 GE Oven Screw 6-32 X 3/5" 1/4" Hex D
684	SCREW
711	GEN WB02X8555
741	SCREW – MT. TRIM
752	WB1K5200 GE Oven Screw 340531
758	GEN WB01K5050
875	WH2X930 GE Screw
942	WB1X5573 GE Oven Washer
999	SCR 8-18 AB PHR 1/2 S
1458	TERMINAL BLK ASM (1 PIN)
32767	GEN 31-0824
32767	GEN 49-8443
32767	WB17X171 GE Oven Terminal
32767	GEN WB18X5139
32767	WB02T10415 GE Oven Anti-Tip Bracket Assembly
32767	GEN 31-20220
32767	GEN 49-8724
32767	GEN 340732
