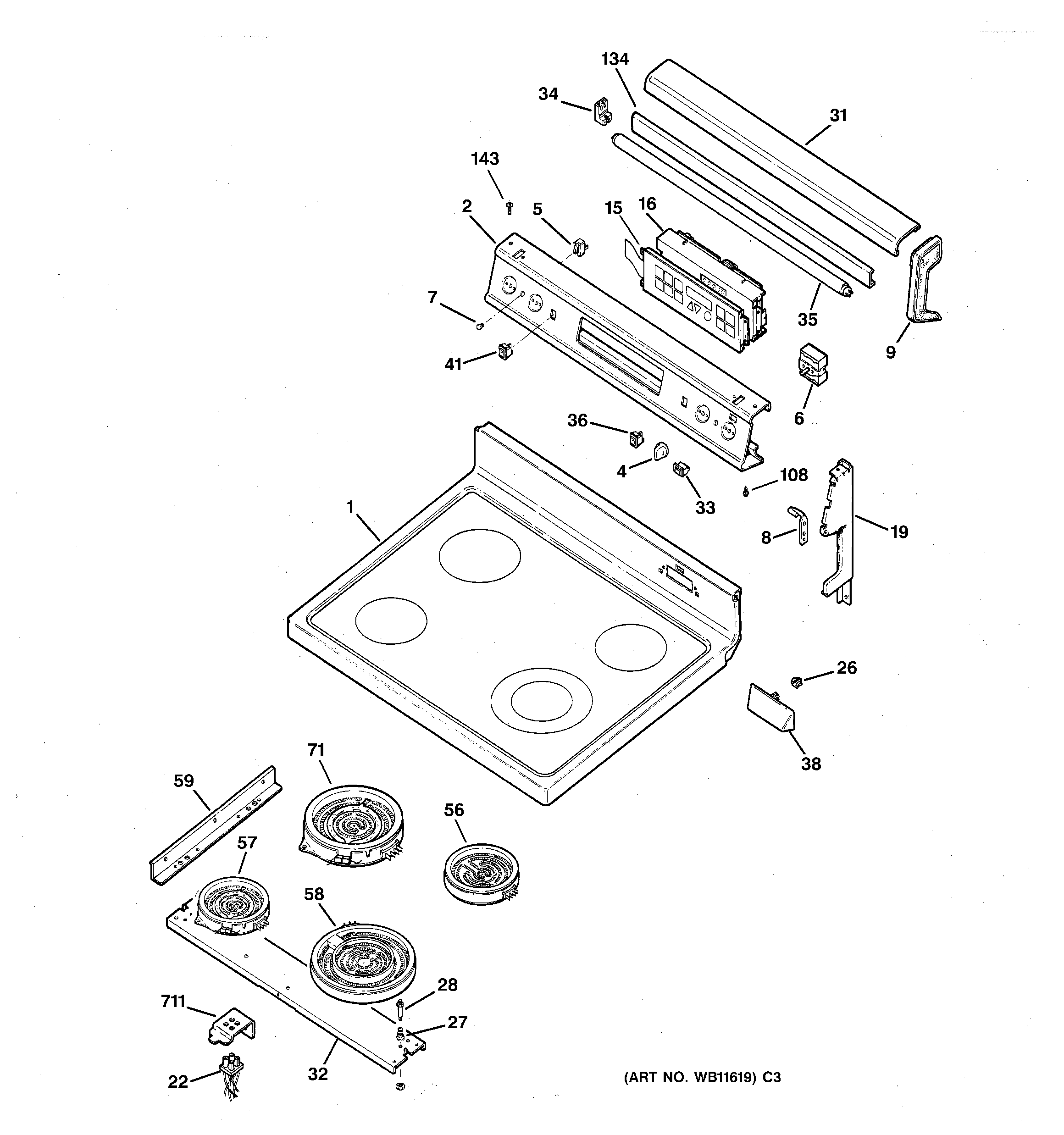

JBP95AV2 COOKTOP & CONTROL PANEL

Products

Position	Product
1	GEN WB62X5462
2	TRIM & BRACKET ASM
4	KNOB – ALMOND
5	GEN WB02X7697
6	WB21X36771 GE Surface Element Switch
7	JEWEL
8	GEN WB02X8126
8	GEN WB02X8127
9	GEN WB07X7234
9	GEN WB07X7233
15	GEN WB27X5558
16	GEN WB27X5583
19	GEN WB07X7271
19	GEN WB07X7270
22	GEN WB08X5115
26	GEN WB02X8312
27	GEN WB09X5119
28	GEN WB02X8377
31	GEN WB07X7236
32	GEN WB02X8556
33	WB24T10167 GE Oven Rocker Switch Element (White)
33	GEN WB24X5319
34	"F" LAMP SOCKET RH LH
35	FLUORESCENT LAMP
36	GEN WB24X5320
38	GEN WB07X7218
41	GEN WB24X5318
56	GEN WB30X5143
57	WB30X44826 GE 6 Inch Heating Element Kit
58	WB30T10099 GE Oven Radiant Surface Element
59	GEN WB02X8321
71	GEN WB30X5144
108	WB1X5904 GE Oven Screw 8-18 BA
134	GEN WB07K0040
143	SCREW (AD)
370	WR01X10618 GE Refrigerator Screw 8-18 TPT 1/4
682	WB1K5186 GE Oven Screw 6-32 X 3/5" 1/4" Hex D
684	SCREW
711	GEN WB02X8555
741	SCREW – MT. TRIM
752	WB1K5200 GE Oven Screw 340531
758	GEN WB01K5050
875	WH2X930 GE Screw
942	WB1X5573 GE Oven Washer
999	SCR 8-18 AB PHR 1/2 S
1458	TERMINAL BLK ASM (1 PIN)
32767	GEN 31-0824
32767	WB02T10415 GE Oven Anti-Tip Bracket Assembly
32767	GEN WB36X5790
32767	GEN 49-8724
32767	GEN WB18X5139
32767	GEN 49-8443
32767	WB17X171 GE Oven Terminal
32767	GEN 340732
32767	GEN 31-20221
