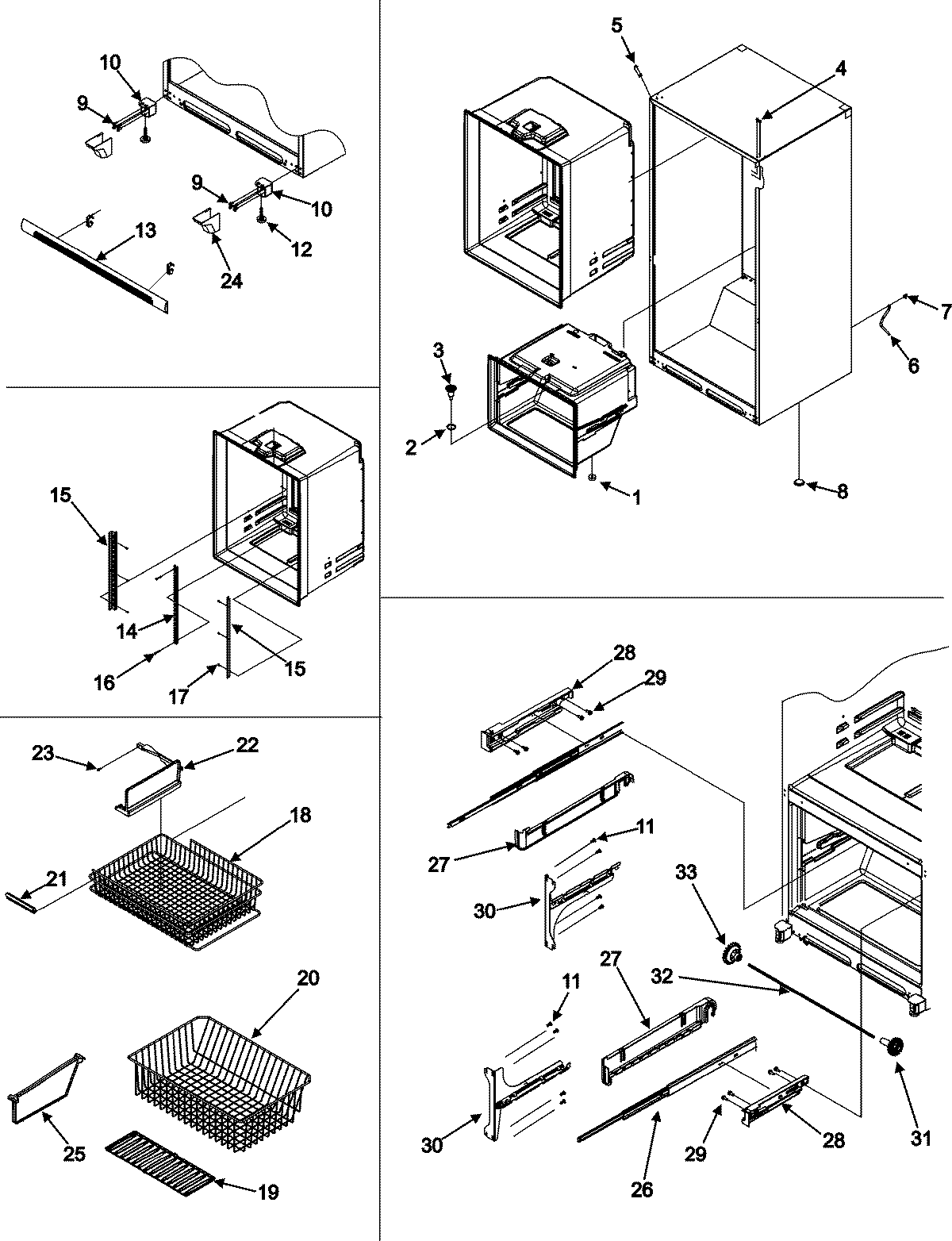

JBR2086HES 08 – INTERIOR CABINET & FREEZER SHELVES

Products

Position	Product
1	Gasket
2	MAY M0500703
3	MAY D7753903
4	MAY A4539607
5	67003485 Whirlpool Refrigerator Corner Cover (Black)
6	MAY 67001066
7	67001067 Whirlpool Refrigerator Drain Tube Clip
8	A3076901 Whirlpool Refrigerator Plug
9	MAY 67003858
10	HINGE, BOTTOM E-CT (BLK)
11	MAY M0211018
12	MAY 10354001
13	Clip, Grille
13	WP67002224 Whirlpool Refrigerator Grille Assembly
14	67001073 Whirlpool Refrigerator Center Ladder
15	67002489 Whirlpool Refrigerator Ladder L/R Side
16	MAY M0231425
17	SCREW, SM
18	MAY 67002976
19	W10332340 Whirlpool Refrigerator Mat
20	MAY 67004726
21	HANDLE, BASKET/SHELF
22	Divider, Upper Basket
23	MAY 67001310
24	Cover, Lw Hinge (Black)
25	MAY 67004727
26	MAY 67004758
27	W10251557 Whirlpool Refrigerator Bracket
27	MAY 67004728
28	MAY 67004731
28	MAY 67004730
29	SCREW 1“
30	WPW10330991 Whirlpool Refrigerator Bracket
30	WPW10330993 Whirlpool Refrigerator Bracket
31	MAY 67004066
32	W11028221 Whirlpool Refrigerator Shaft
33	MAY 67004016
34	MAY 67005932
