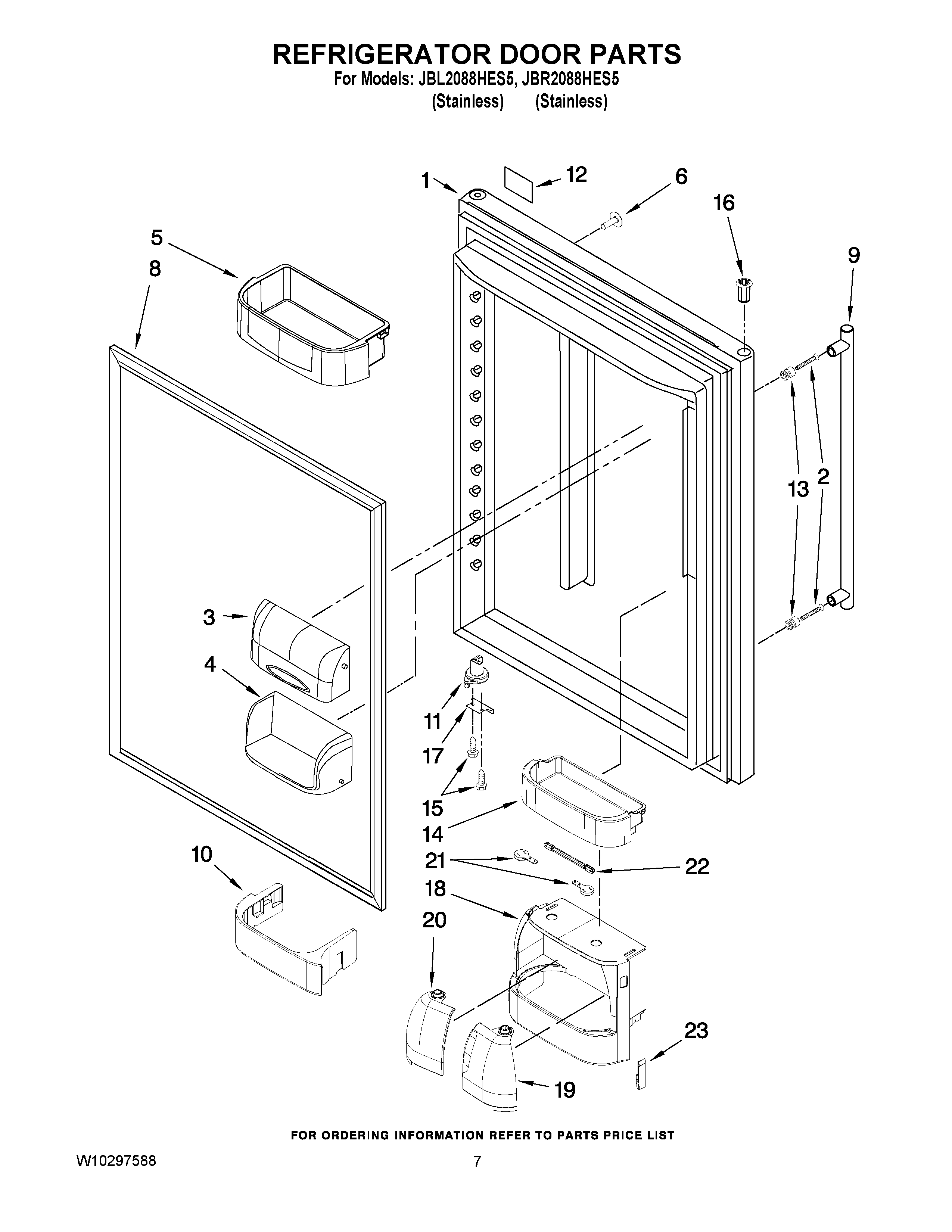

JBR2088HES5 04 – REFRIGERATOR DOOR PARTS

JBR2088HES5 04 – REFRIGERATOR DOOR PARTS

Written by

in

JBR2088HES5 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 13023894SQ
1MAY 13023896SQ
2Screw, Handle
3MAY 12804701SP
4MAY 12369502SP
5MAY 12801905
6WHITE
8DOOR GASKET, MAGNETIC (BLACK)
9HANDLE (STAINLESS STEEL)
10MAY 12819901
11MAY 12028505B
1212848704 Whirlpool Refrigerator Nameplate
13MAY 12945201
14MAY 12830301SP
15MAY 12990504
16Bushing (Black)
17Stop, Door (Black)
18MAY 12805901SP
19MAY 12805301SP
20MAY 12805403SP
21MAY 12568401SP
22MAY 12568502SP
23MAY 12827501SP
