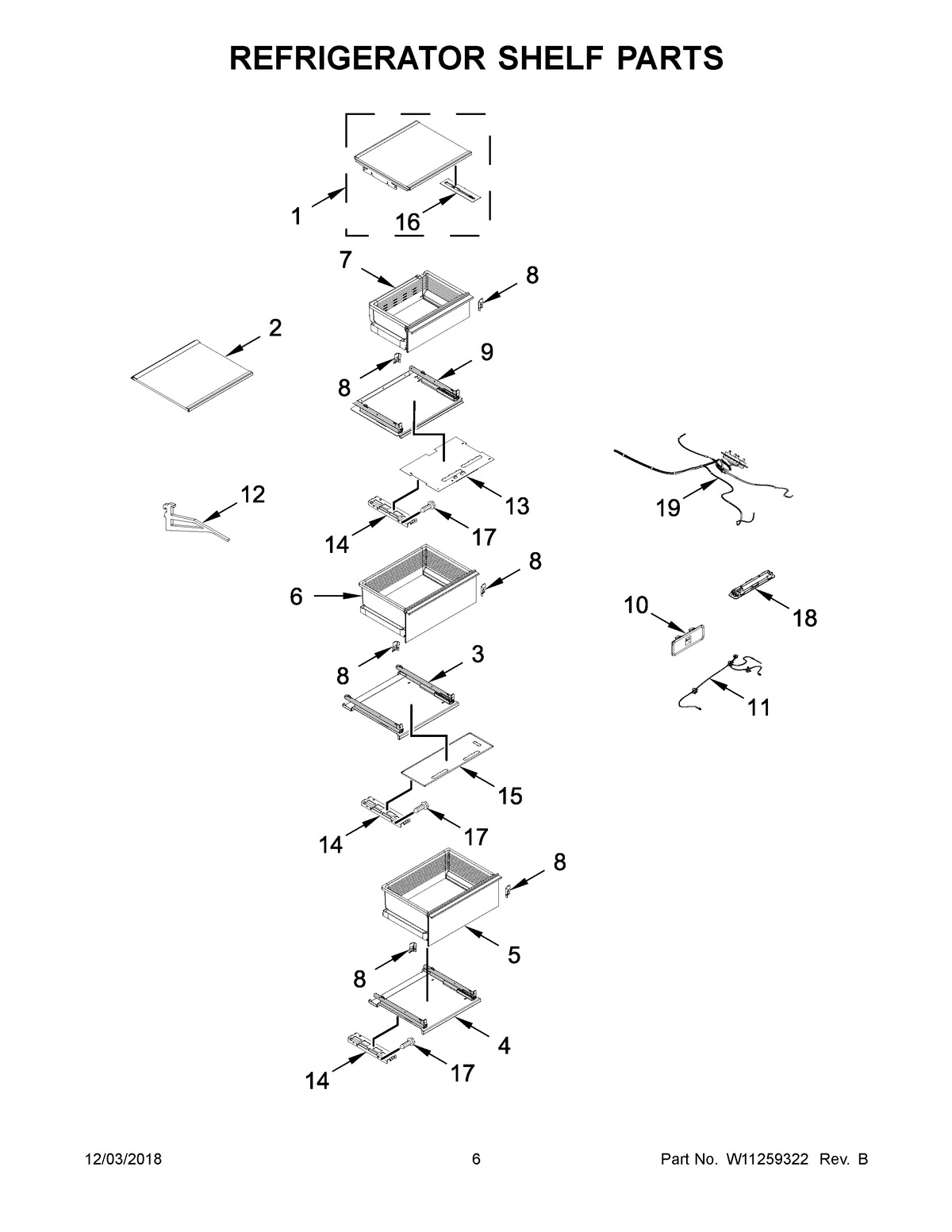

JBRFL24IGX00 04 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1ASSEMBLY, DELI SHELF
2ASSEMBLY, SHELF
3ASSEMBLY, UPPER CRISPER SLIDE SUPPORT
4ASSEMBLY, LOWER CRISPER SLIDE SUPPORT
5ASSEMBLY, BOTTOM CRISPER PAN
6ASSEMBLY, TOP CRISPER PAN
7ASSEMBLY, DELI
8ACLIP, RETAINER (RIGHT HAND)
8CLIP, RETAINER (LEFT HAND)
9ASSEMBLY, DELI SLIDE SUPPORT
10HOUSING, CRISPER THERMISTOR
11HARNESS, CRISPER LED (INCLUDES THERMISTOR)
12SIDEARM, SHELF
13PANEL, MULLION
14BRACKET, SUPPORT
15PLATE, CRISPER SUPPORT LED
16THERMISTOR (INCLUDES COVER)
17SCREW
18ASSEMBY, LIGHT STRIP
19HARNESS, MULLION
