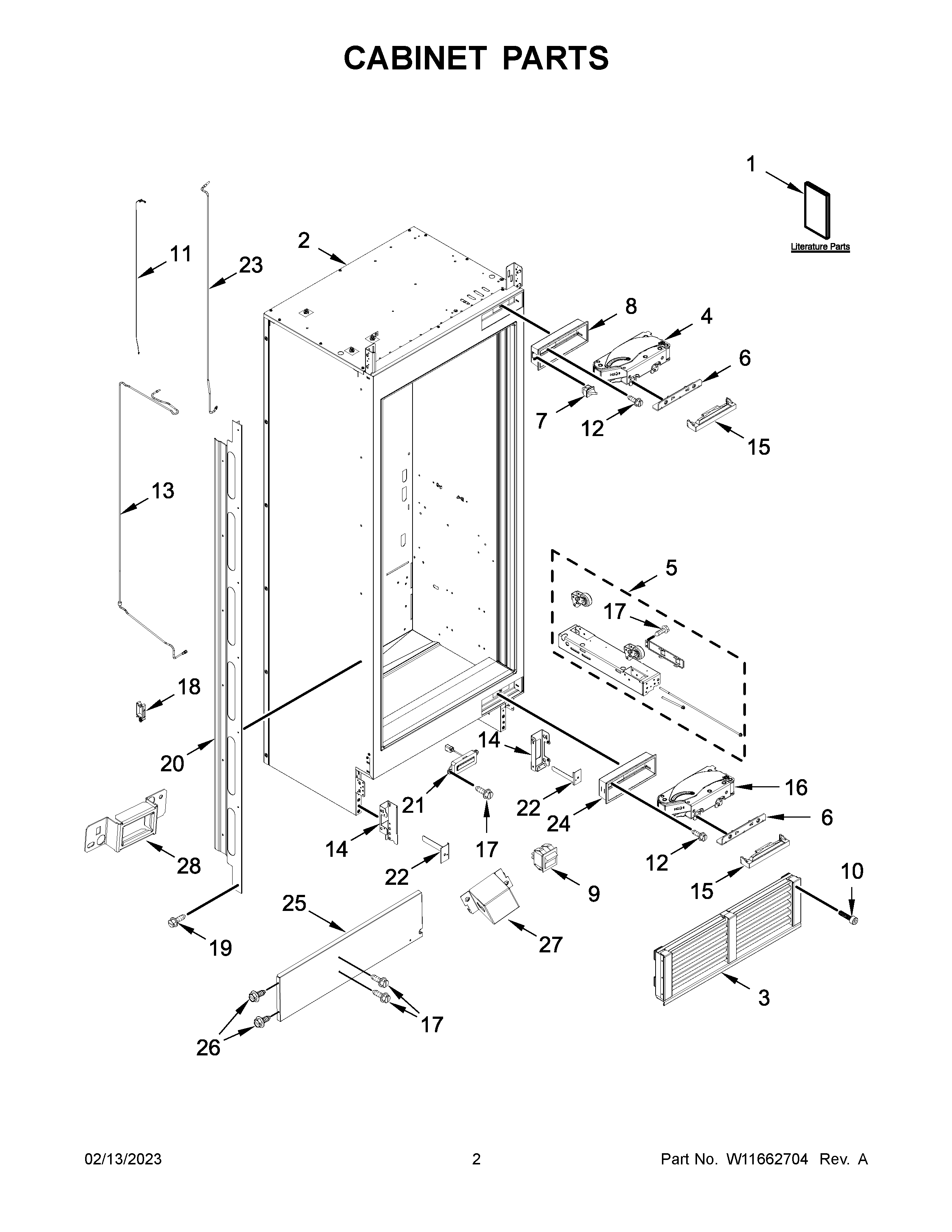

JBRFL24IGX10 02 – CABINET PARTSadmin2025-04-26T11:51:42+00:00JBRFL24IGX10 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1A | ENERGY GUIDE |
| 1 | USE AND CARE GUIDE |
| 1B | INSTALLATION INSTRUCTIONS |
| 1C | TECH SHEET |
| 2 | CABINET (NOT A SERVICEABLE PART) |
| 3 | W11245086 Whirlpool Refrigerator Front Grille |
| 4 | W11233362 Whirlpool Door Hinge |
| 5A | W11233364 Whirlpool Refrigerator Support |
| 5 | W11233365 Whirlpool Refrigerator Support |
| 6 | BRACKET, HINGE ATTACH |
| 7 | W11642199 Whirlpool Switch |
| 8 | TRIM, HINGE (CHARCOAL SPARKLE) |
| 9 | SWITCH, POWER DISCONNECT |
| 10 | W11247538 Whirlpool Screw |
| 11 | W10897083 Whirlpool Refrigerator Wire Harness |
| 12 | W10678210 Whirlpool Screw |
| 13 | W11233369 Whirlpool Refrigerator Water Tube |
| 14 | ASSEMBY, GRILLE MOUNT (INCLUDES NUT) (LEFT HAND) |
| 14A | ASSEMBY, GRILLE MOUNT (INCLUDES NUT) (RIGHT HAND) |
| 15 | W11235093 Whirlpool Refrigerator Cover |
| 16 | W11233372 Whirlpool Refrigerator Door Hinge |
| 17 | WPW10141625 Whirlpool Refrigerator Screw Assembly |
| 18 | CLIP, WIRE |
| 19 | SCREW |
| 20 | W11233378 Whirlpool Trim Assembly |
| 20A | TRIM, CABINET SIDE (EBONY (LEFT HAND)) |
| 21 | W11234285 Whirlpool Electronic Control Board |
| 22 | W10848725 Whirlpool Front Grille |
| 22A | W10848724 Whirlpool Front Grille |
| 23 | W11247672 Whirlpool Refrigerator Water Tube |
| 24 | TRIM, HINGE (CHARCOAL SPARKLE) |
| 25 | W11618049 Whirlpool Back Cover |
| 26 | WP489069 Whirlpool Compactor Screw |
| 27 | COVER, POWER SWITCH |
| 28 | COVER, SAFETY SWITCH |
