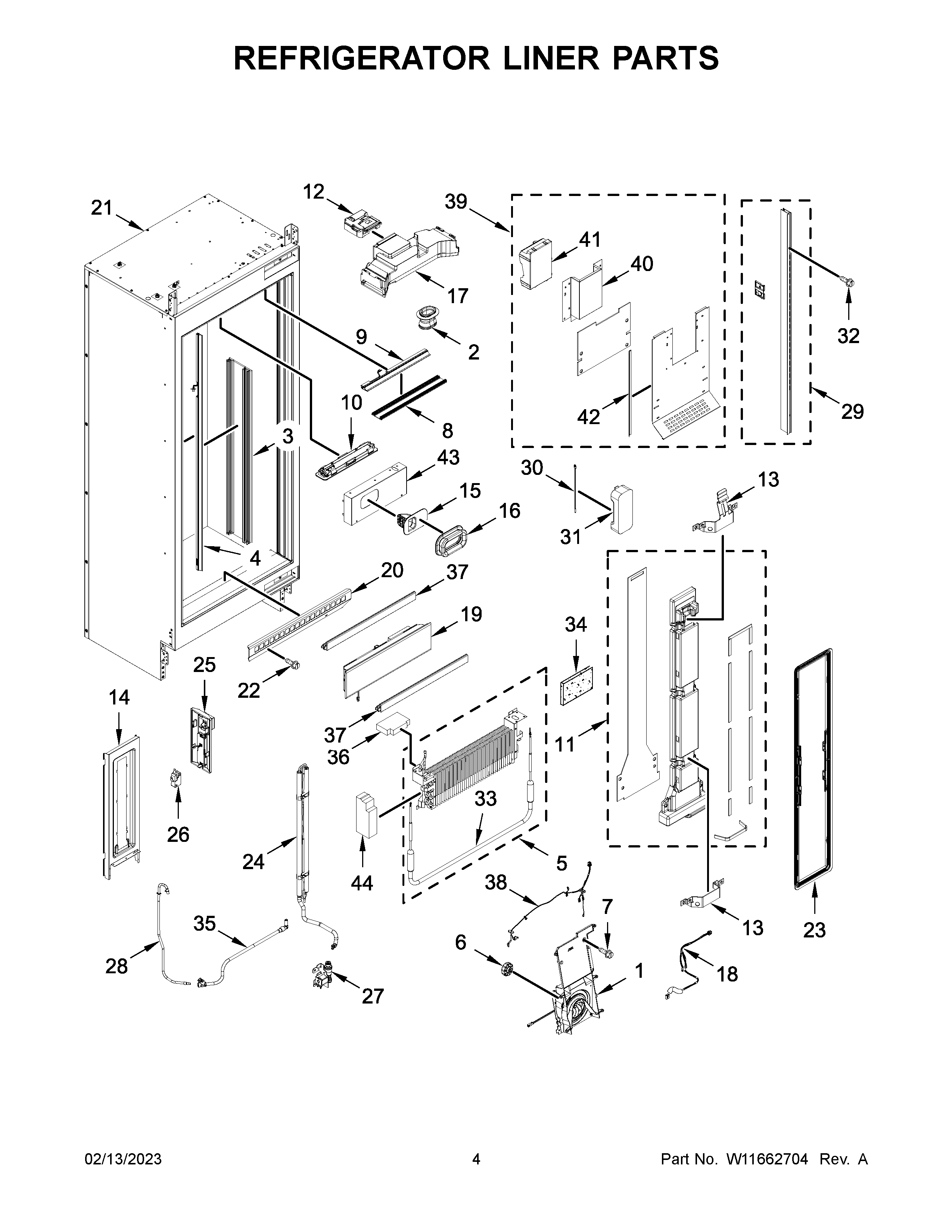

JBRFL24IGX10 03 – REFRIGERATOR LINER PARTS

JBRFL24IGX10 03 – REFRIGERATOR LINER PARTS

Written by

in

JBRFL24IGX10 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1W11233380 Whirlpool Fan Assembly
2W10370680 Whirlpool Refrigerator Fitting
3COVER, LED SIDE
4W11233381 Whirlpool Module
4AW11233382 Whirlpool Module
5BCOUPLER
5ASSEMBLY, EVAPORATOR AND HEATER (ALSO ORDER THE FOLLOWING LOKRING PARTS)
5AW11504451 Whirlpool Coupler
6W10225833 Whirlpool Grommet
767006425 Whirlpool Refrigerator Screw
8COVER, LED TOP
9STRIP, TOP LED
10MODULE
11W11235114 Whirlpool Gasket
12W11235115 Whirlpool Refrigerator Damper
13W11036131 Whirlpool Bracket
13AASSEMBLY, AIR TOWER BRACKET (INCLUDES RUBBER RIVETS, WASHERS AND SCREWS) (LOWER)
14WALL, FALSE
15DUCT, DELI
16W11235118 Whirlpool Gasket Assembly
17ASSEMBLY, DUCT (INCLUDES DAMPER)
18W11247700 Whirlpool Wire Harness Assembly
19W11404243-includeCORE Whirlpool W11404243 Refrigerator User Interface Panel
20W11245152 Whirlpool Refrigerator Grille
21CABINET (NOT A SERVICEABLE PART)
22WP489069 Whirlpool Compactor Screw
23ASSEMBLY, AIR TOWER PANEL
24W11603843 Whirlpool Refrigerator Water Reservoir
25W11247958 Whirlpool Cover Assembly
26WP12575502 Whirlpool Refrigerator Switch
27W11247961 Whirlpool Refrigerator Valve
28W11248065 Whirlpool Water Tube
29ALADDER, SHELF (INCLUDES SCREW GUIDE) (RIGHT HAND)
29LADDER, SHELF (INCLUDES SCREW GUIDE) (LEFT HAND)
30W11234826 Whirlpool Refrigerator Thermistor
31W11235125 Whirlpool Cover
32WPL W11288606
33W11642296 Whirlpool Heater
34W11553819 Whirlpool Refrigerator Insulation
35TUBE-WATER
36WPL W11216534
36AWPL W11216533
37AWPL W10887668
37WPL W10816924
38W11642297 Whirlpool Wire Harness
39WPL W11441794
40WPL W10895218
41WPL W10780861
42WPL W10895214
43WPL W10816945
44WPL W10876967
